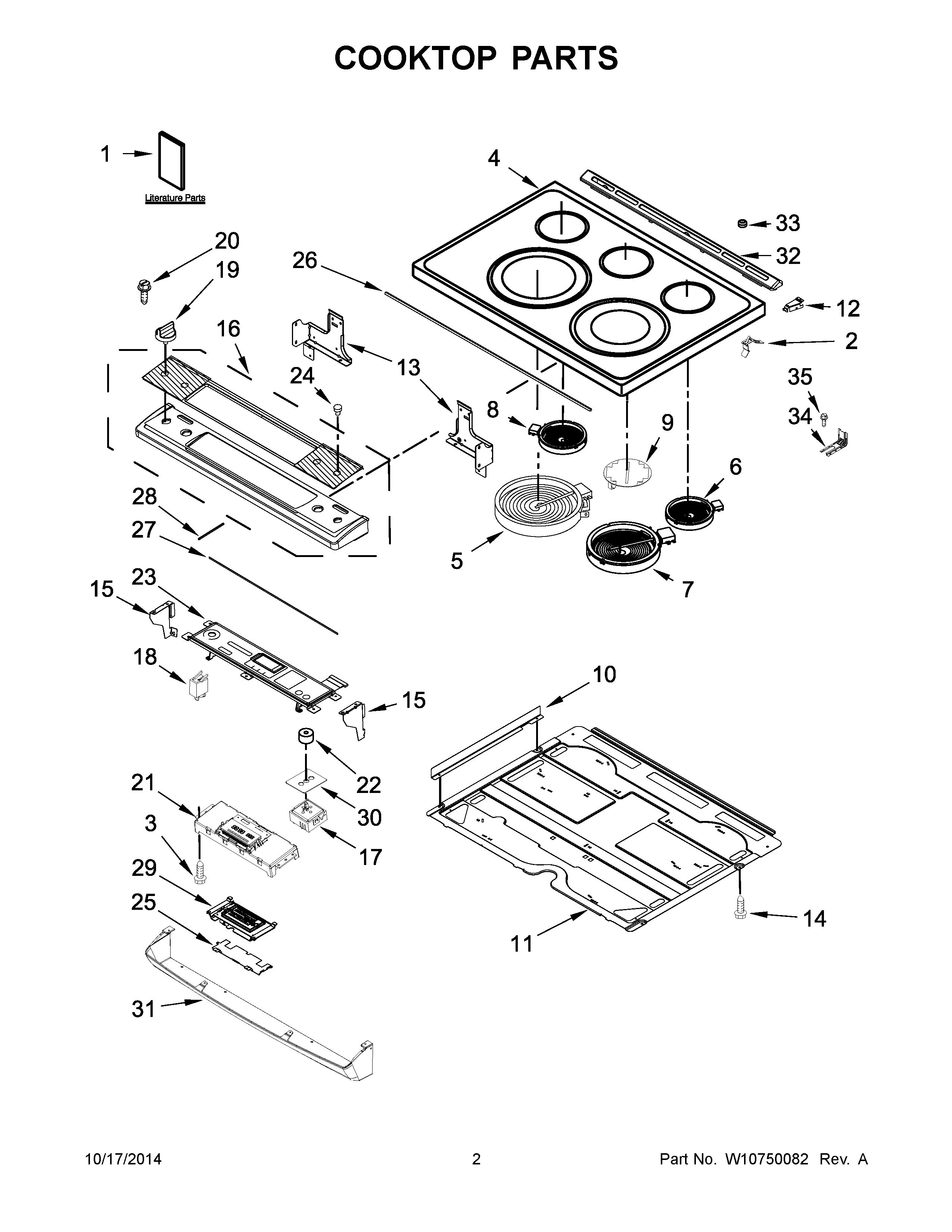

YMES8880DH0 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10580243
NIMAY W10580265
NIMAY W10664316
NIMAY W10580298
NIMAY W10598170
NIMAY W10580309
NIMAY W10575120
1INSTRUCTIONS, INSTALLATION
1AMAY W10722063
1BSHEET, TECH
1FMAY W10400065
1EMAY W10400064
1CTIPS, SAFE COOKING (ENGLISH)
1GMAY W10665232
1DTIPS, SAFE COOKING (FRENCH)
2SPRING, ELEMENT
3SCREW
4AMAY W10668780
4COOKTOP (BLACK)
5ELEMENT, SURFACE (2500/1200W (RF))
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT (3200W) (RIGHT FRONT)
8ELEMENT, SURFACE (700W) (RIGHT REAR)
9ELEMENT, WARM ZONE (CENTER REAR)
10MAY W10613286
11MAY W10536275
12ABRACE, CORNER (RIGHT)
12BRACE, CORNER (LEFT)
13ASUPPORT, COOKTOP (RIGHT)
13SUPPORT, COOKTOP (LEFT)
14SCREW
15ABRACKET, CONSOLE (RIGHT)
15BBRACKET, CONSOLE (CE
15BRACKET, CONSOLE (LEFT)
16MAY W10680366
16AMAY W10680367
16BASSEMBLY, CONSOLE (STAINLESS)
17ASWITCH, INFINITE (RIGHT FRONT)
17BSWITCH, INFINITE (RIGHT FRONT)
17CSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17SWITCH, INFINITE (DUAL) (LEFT FRONT)
18MAY 8523265
19MAY W10672074
20SCREW
21MAY W10658113
22MAY W10702912
23MAY W10680391
23AMAY W10680392
23BMAY W10680393
24MAY 3196068
25BRACKET, CONTROL
26GASKET, CONSOLE/COOKTOP
27GASKET, CONSOLE
28GASKET, CONSOLE SHORT
29MAY W10603098
30GASKET, INFINITE SWITCH
31APANEL, LOWER CONSOLE (WHITE)
31PANEL, LOWER CONSOLE (BLACK)
32MAY W10636528
32AMAY W10636527
33BUMPER
34BRACKET, ANTI-TIP
35SCREW, ANTI-TIP KIT
