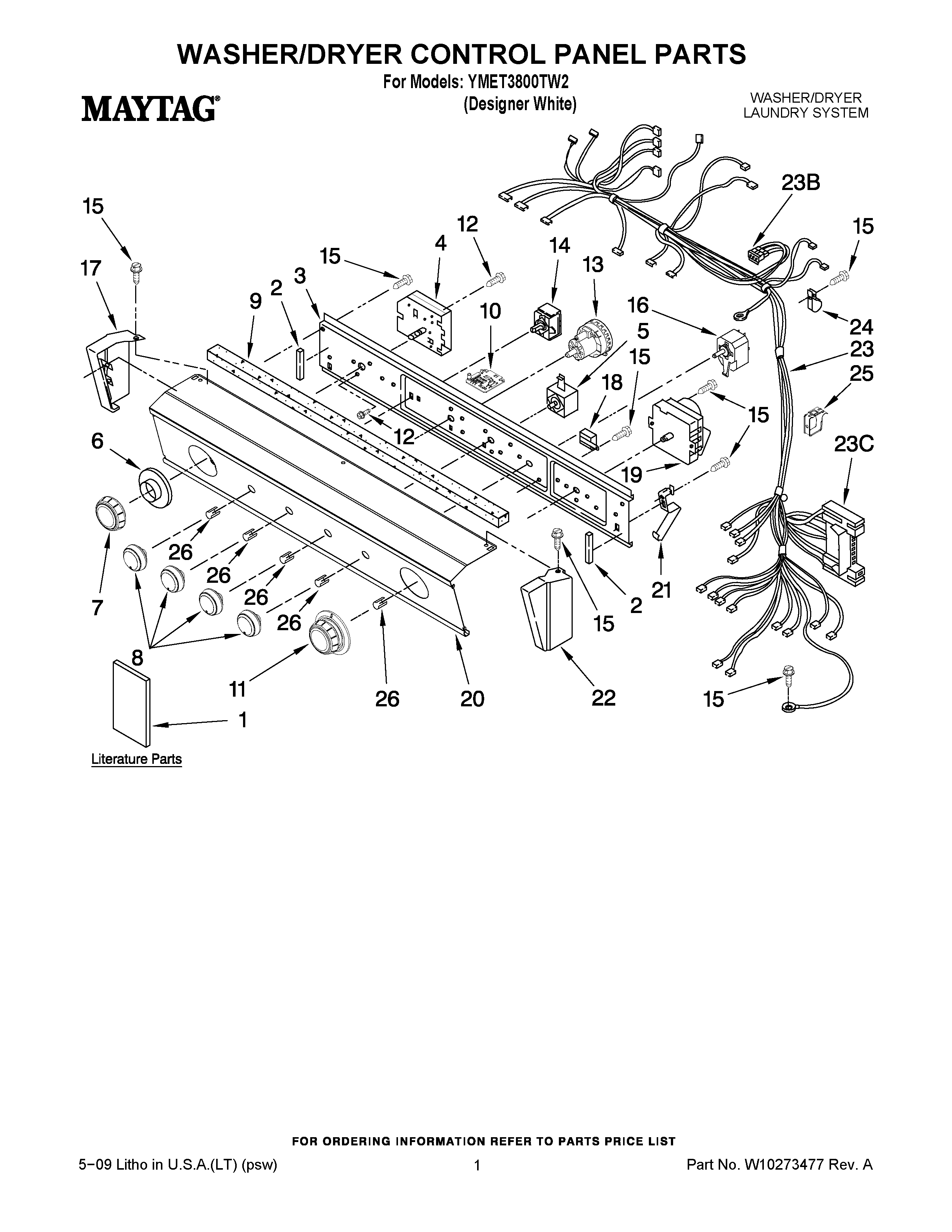

YMET3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

YMET3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

YMET3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10222378
1MAY W10117523
1MAY W10129071
1MAY W10117755
1MAY W10196552
2MAY 3390688
3MAY 8528583
4MAY W10124193
5MAY 3405156
6Dial, (Washer)
7Knob, Timer (Washer)
8Knob, Control (3)
9MAY 8521965
10MAY 8558178
11Knob, Timer
12Screw, 10-32 x 5/16
13MAY W10112533
14MAY W10114118
15SCREW,8-18 X 3/8
16MAY W10117655
17End Cap (LH)
18MAY 694419
19MAY W10113816
20MAY W10124093
21MAY 3389453
22End Cap (RH)
23MAY W10139467
23MAY 2154470
23CONNECTOR (MOTOR)
24MAY 3390604
25Clip, Harness (2)
26CLIP, SPRING
