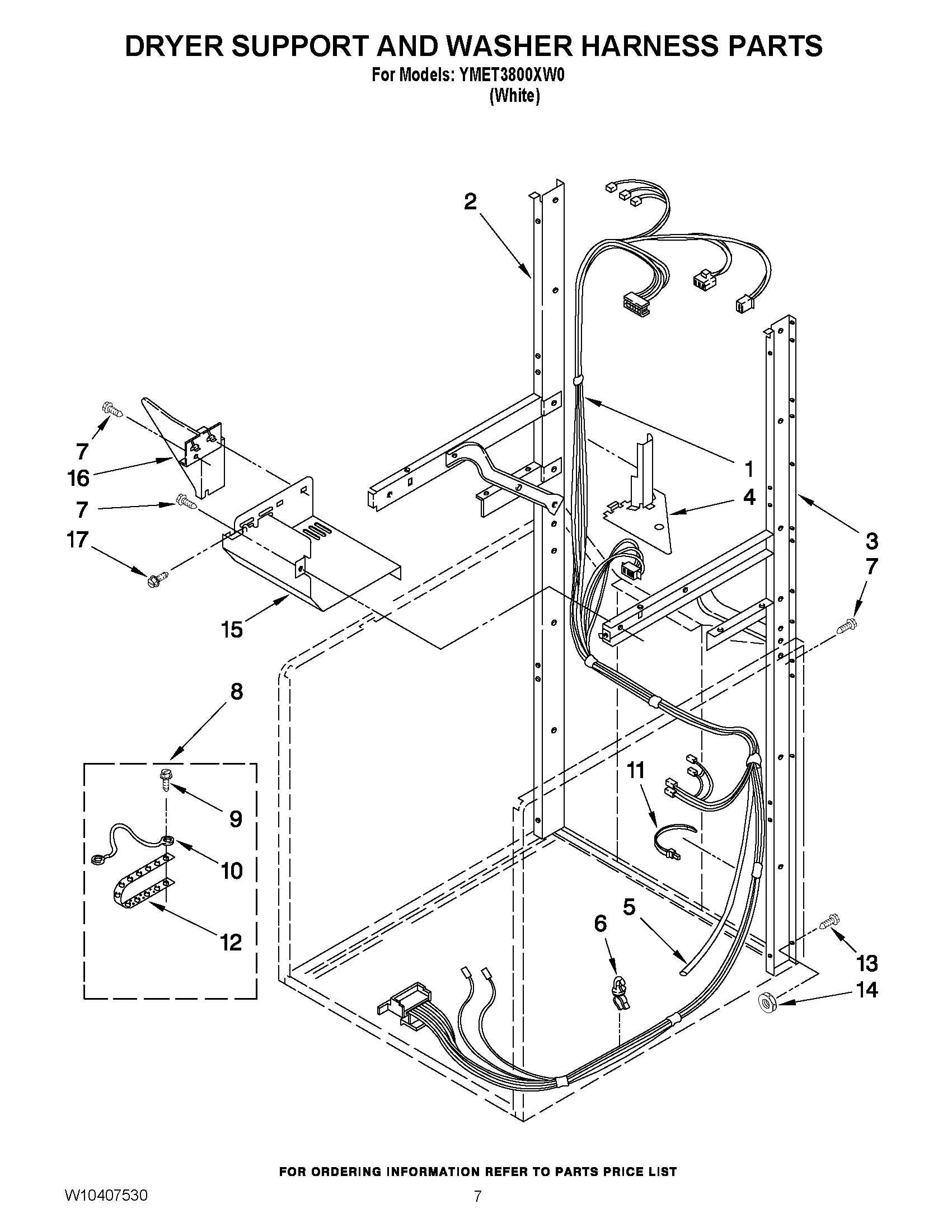

YMET3800XW0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

YMET3800XW0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

YMET3800XW0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1MAY W10364163
2MAY 3388851
3MAY 3388850
4MAY 3390609
5HOSE, PRESSURE SWITCH
6Clip, Harness (1)
7SCREW
8MAY 685463
9MAY 8533971
10Wire
11Clip, Harness (2)
12Strap, Grounding
13Bolt, 5/16-18 x 1/2 (4)
14Nut
15MAY 3394350
16MAY 3390336
17SCREW, 10-16 X 1/2
