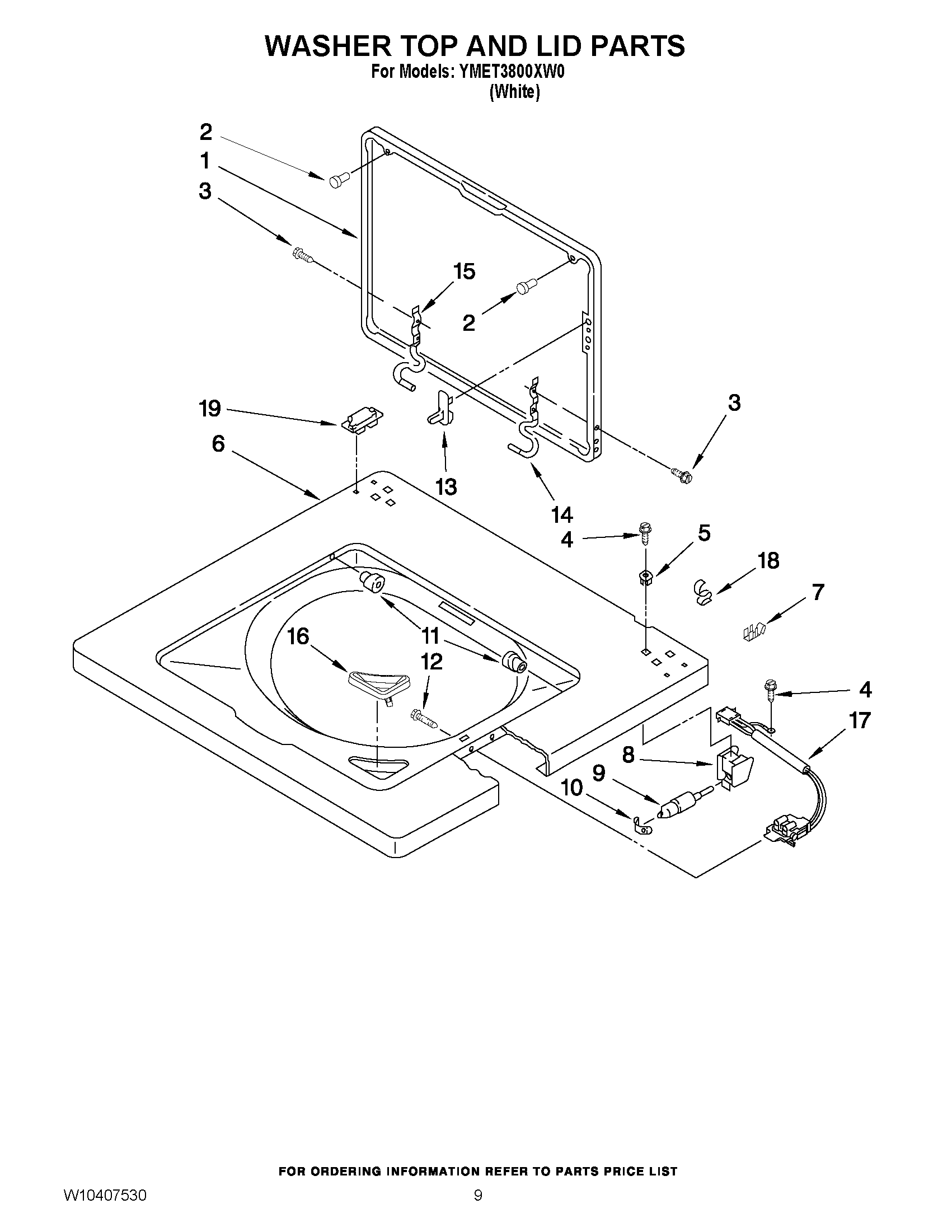

YMET3800XW0 06 – WASHER TOP AND LID PARTS

Products

Position	Product
1	MAY W10173243
2	MAY 9724509
3	Screw And Washer
4	SCREW
5	Nut, Push-In
6	Top
7	MAY W10113937
8	MAY 3354020
9	Lid Retainer
10	Clip
11	Hinge, Bearing (2)
12	Screw And Washer
13	Strike, Lid
14	MAY 3350101
15	MAY 3350102
16	MAY 3362952
17	MAY 3355458
18	Clip, Wire (4)
19	MAY W10134768
