YMET3800XW0 10 – AGITATOR, BASKET AND TUB PARTS

YMET3800XW0 10 – AGITATOR, BASKET AND TUB PARTS

Written by

in

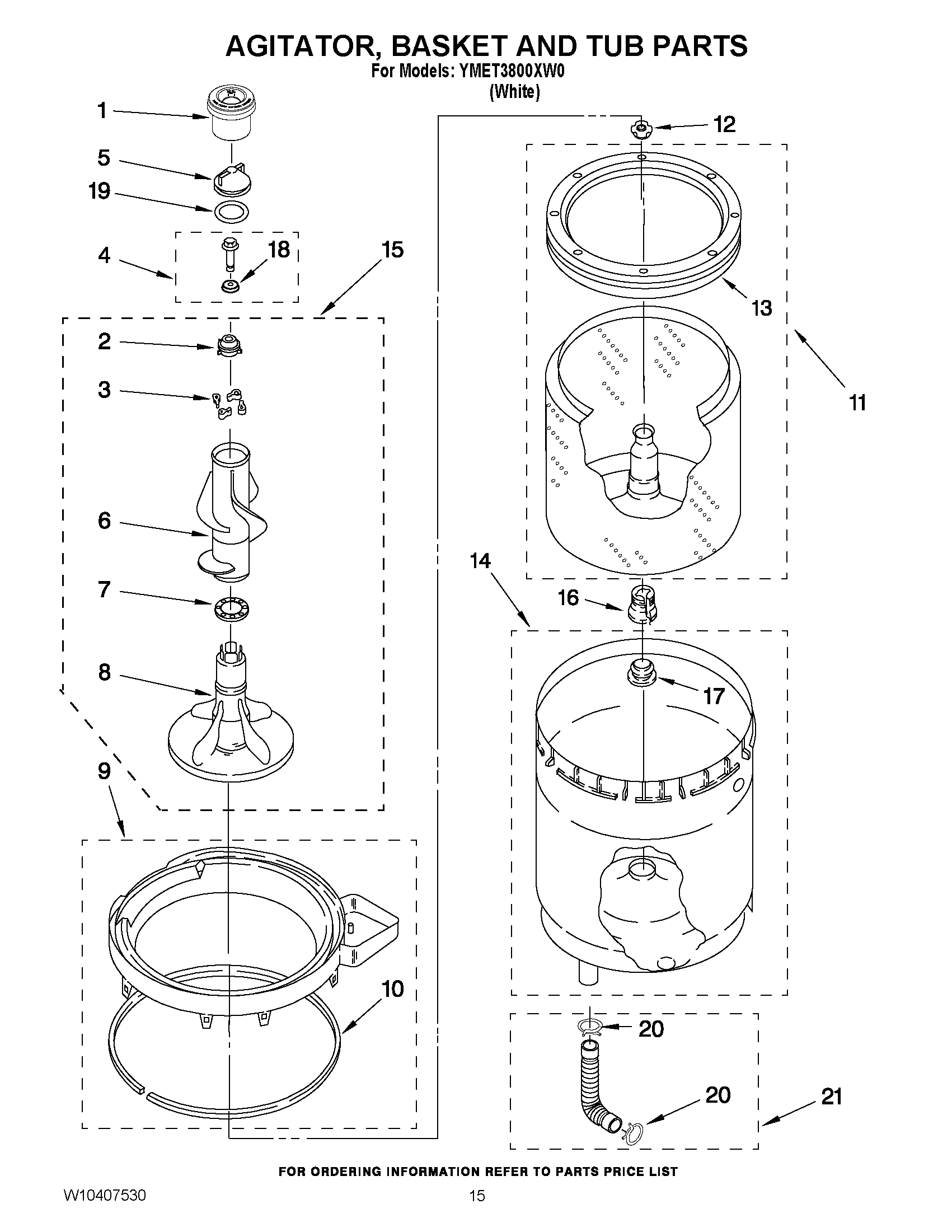

YMET3800XW0 10 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	DISPENSER ASSEMBLY
2	MAY 3947410
3	Dog, Agitator (4)
4	Screw & Washer
5	MAY 387094
6	MAY 3349610
7	Spacer, Thrust
8	MAY 3349578
9	MAY W10388299
10	MAY 3976308
11	MAY 3352234
12	MAY 21366
13	Ring, Balance
14	MAY 3349292
15	MAY 3349743
16	Block, Drive
17	MAY 383727
18	MAY 3949550
19	MAY W10072840
20	Clamp, Hose (2)
21	Hose & Clamp Assembly
