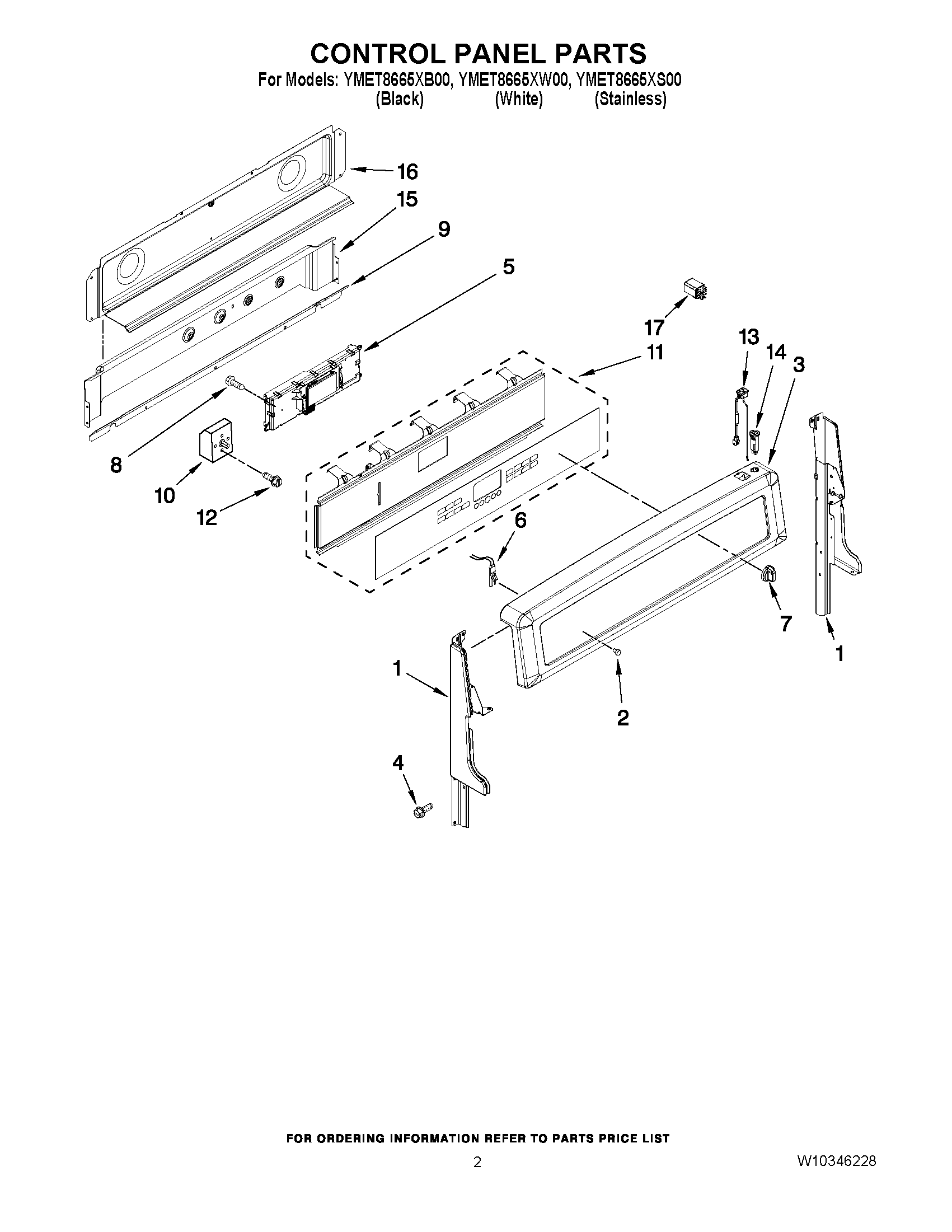

YMET8665XB00 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10319111
1	MAY W10319109
1	MAY W10319110
1	MAY W10319112
2	MAY 3196068
3	CONSOLE, PANEL (BLACK)
3	CONSOLE, PANEL (STAINLESS)
3	CONSOLE, PANEL (WHITE)
4	Screw (2) (Black)
5	MAY W10206266
6	MAY 7407P136-60
7	MAY W10294794
7	MAY W10294796
8	MAY 7101P500-60
9	SHIELD, WIRE COVER
10	SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
10	SWITCH, INFINITE (LEFT FRONT)
10	SWITCH, INFINITE (RIGHT FRONT)
11	ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS)
11	ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
11	ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE)
12	SCREW
13	RECEPTACLE (BLACK)
14	BREAKER, CIRCUIT (BLACK)
15	MAY W10278697
16	COVER, BACKGUARD
17	MAY W10326400
