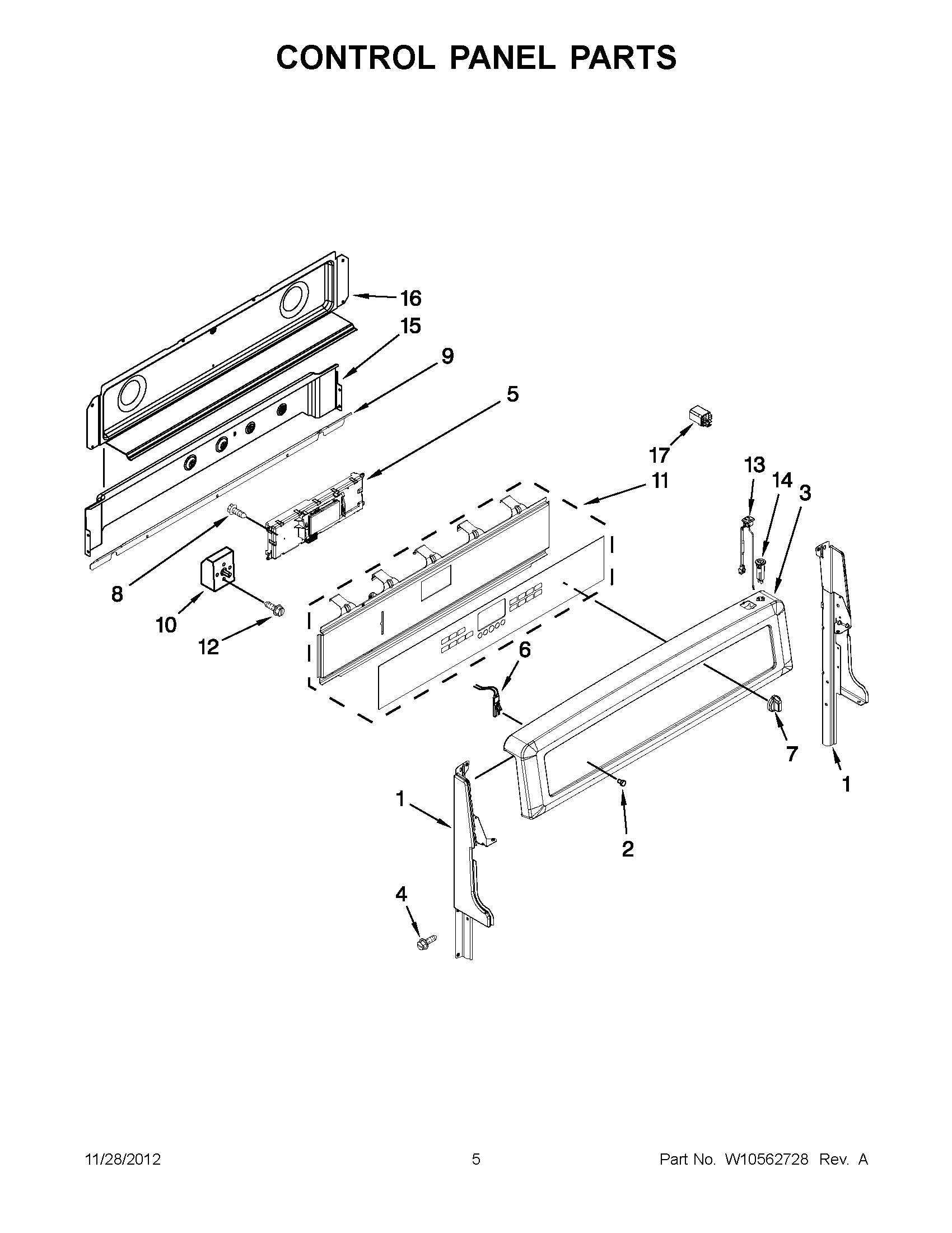

YMET8665XS02 02 – CONTROL PANEL PARTSadmin2025-04-26T08:54:31+00:00YMET8665XS02 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10319110 |
| 1 | MAY W10319109 |
| 1 | MAY W10319111 |
| 1 | MAY W10319112 |
| 2 | MAY 3196068 |
| 3 | CONSOLE, PANEL (WHITE) |
| 3 | CONSOLE, PANEL (BLACK) |
| 3 | CONSOLE, PANEL (STAINLESS) |
| 4 | Screw (2) (Black) |
| 5 | ELECTRIC, CONTROL MRC2 |
| 6 | MAY 7407P136-60 |
| 7 | KNOB (STAINLESS) |
| 7 | MAY W10294796 |
| 7 | MAY W10294794 |
| 8 | MAY 7101P500-60 |
| 9 | SHIELD, WIRE COVER |
| 10 | SWITCH, INFINITE (RIGHT FRONT) |
| 10 | SWITCH, INFINITE (LEFT FRONT) |
| 10 | SWITCH, INFINITE (LEFT REAR & RIGHT REAR) |
| 11 | ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK) |
| 11 | ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS) |
| 11 | ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE) |
| 12 | SCREW |
| 13 | RECEPTACLE (WHITE) |
| 13 | RECEPTACLE (BLACK) |
| 14 | BREAKER, CIRCUIT (BLACK) |
| 14 | BREAKER, CIRCUIT (WHITE) |
| 15 | MAY W10278697 |
| 16 | COVER, BACKGUARD |
| 17 | MAY W10326400 |
