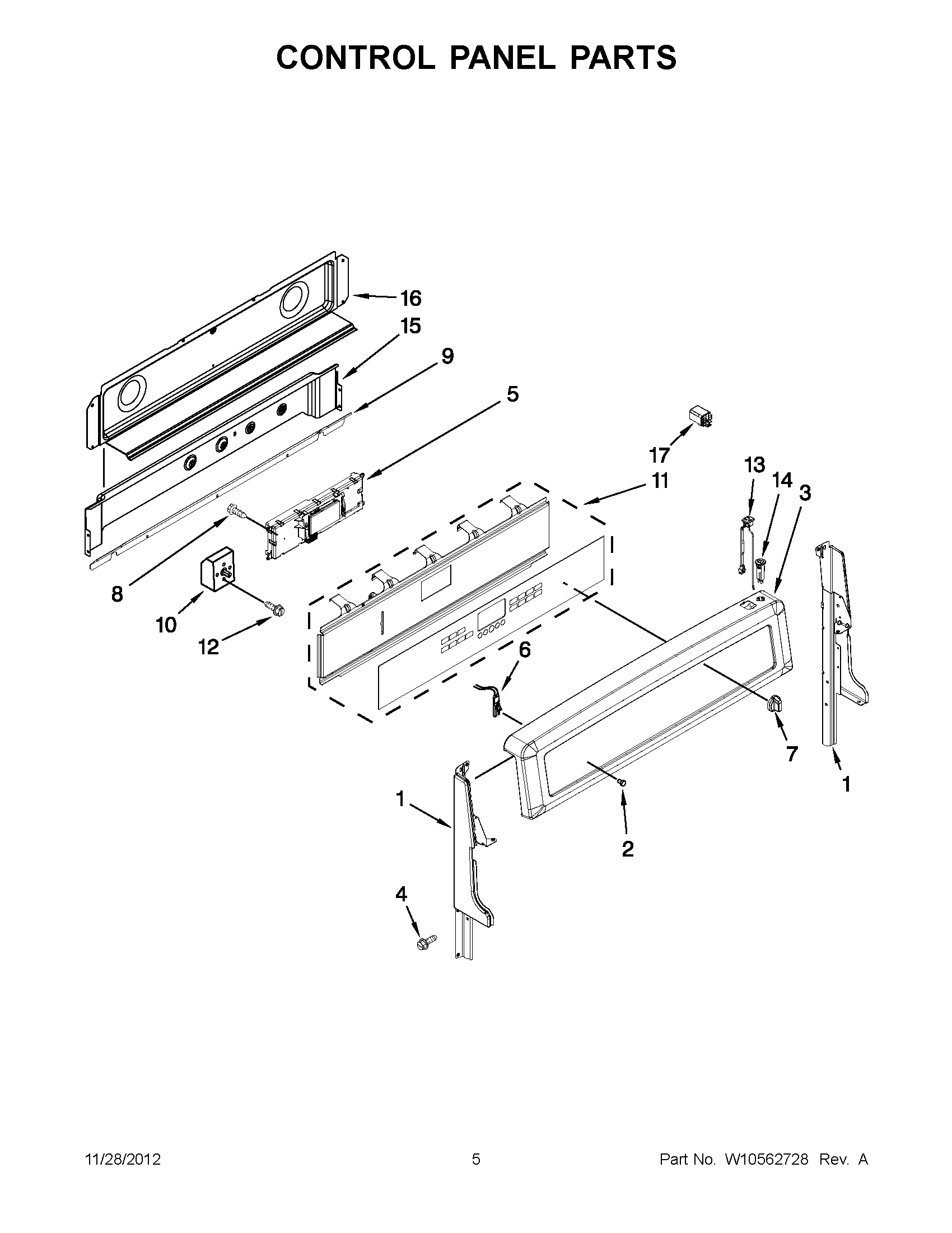

YMET8665XW02 02 – CONTROL PANEL PARTS

YMET8665XW02 02 – CONTROL PANEL PARTS

Written by

in

YMET8665XW02 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10319110
1MAY W10319109
1MAY W10319111
1MAY W10319112
2MAY 3196068
3CONSOLE, PANEL (WHITE)
3CONSOLE, PANEL (BLACK)
3CONSOLE, PANEL (STAINLESS)
4Screw (2) (Black)
5ELECTRIC, CONTROL MRC2
6MAY 7407P136-60
7KNOB (STAINLESS)
7MAY W10294796
7MAY W10294794
8MAY 7101P500-60
9SHIELD, WIRE COVER
10SWITCH, INFINITE (RIGHT FRONT)
10SWITCH, INFINITE (LEFT FRONT)
10SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE)
12SCREW
13RECEPTACLE (WHITE)
13RECEPTACLE (BLACK)
14BREAKER, CIRCUIT (BLACK)
14BREAKER, CIRCUIT (WHITE)
15MAY W10278697
16COVER, BACKGUARD
17MAY W10326400
