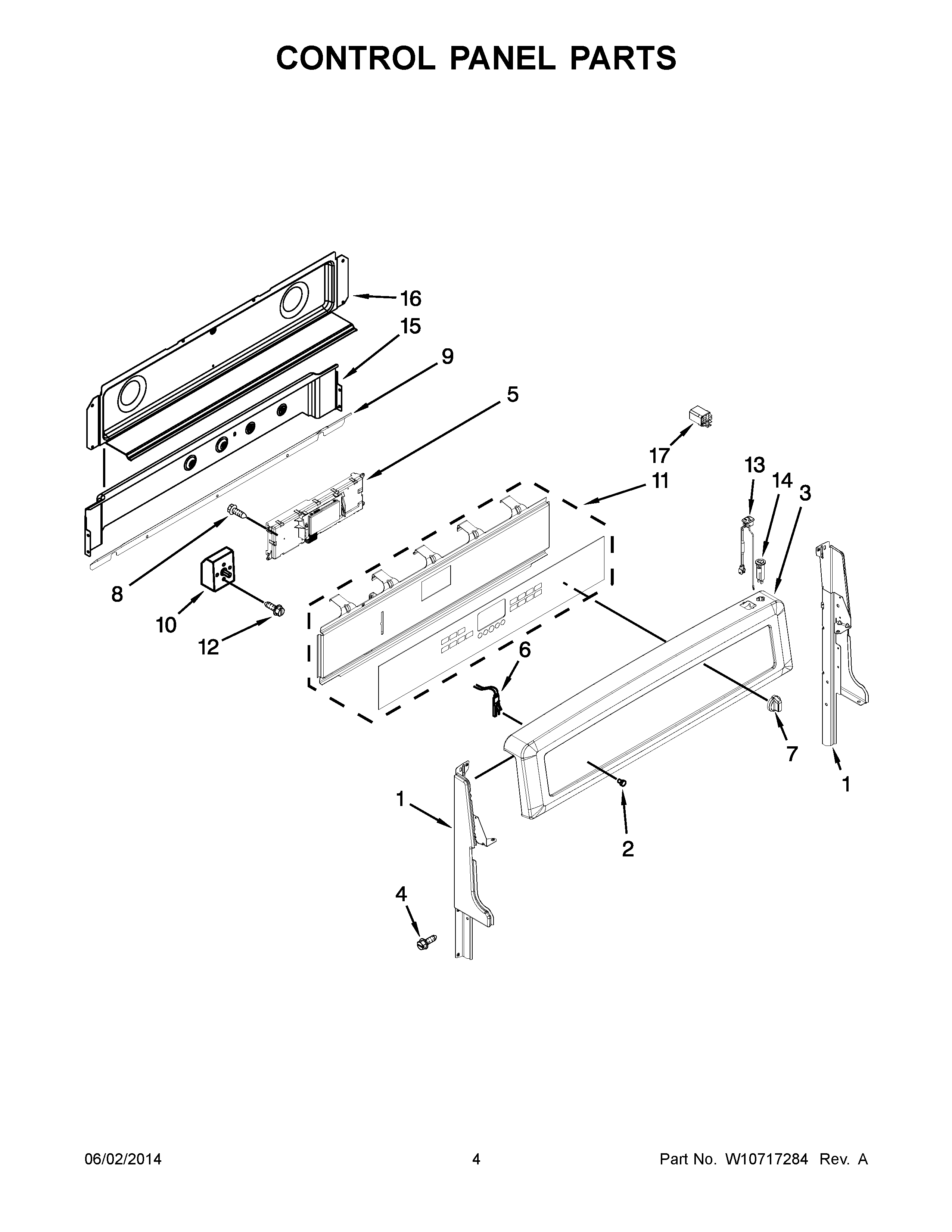

YMET8720DE00 03 – CONTROL PANEL PARTSadmin2025-04-26T08:54:59+00:00YMET8720DE00 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10319112 |
| 1 | MAY W10319109 |
| 1 | MAY W10319110 |
| 1 | MAY W10319111 |
| 2 | MAY 3196068 |
| 3 | CONSOLE, PANEL (BLACK) |
| 3 | CONSOLE, PANEL (STAINLESS) |
| 3 | CONSOLE, PANEL (WHITE) |
| 4 | Screw (2) (Black) |
| 5 | MAY W10365414 |
| 6 | MAY 7407P136-60 |
| 7 | MAY W10650402 |
| 8 | MAY 7101P434-60 |
| 9 | SHIELD, WIRE COVER |
| 10 | SWITCH, INFINITE (LEFT REAR & RIGHT REAR) |
| 10 | SWITCH, INFINITE (LEFT FRONT) |
| 10 | SWITCH, INFINITE (RIGHT FRONT) |
| 11 | MAY W10664063 |
| 11 | MAY W10664065 |
| 11 | MAY W10664064 |
| 12 | SCREW |
| 13 | MAY W10488078 |
| 13 | MAY W10488077 |
| 14 | BREAKER, CIRCUIT (WHITE) |
| 14 | BREAKER, CIRCUIT (BLACK) |
| 15 | MAY W10278697 |
| 16 | COVER, BACKGUARD |
| 17 | MAY W10326400 |
