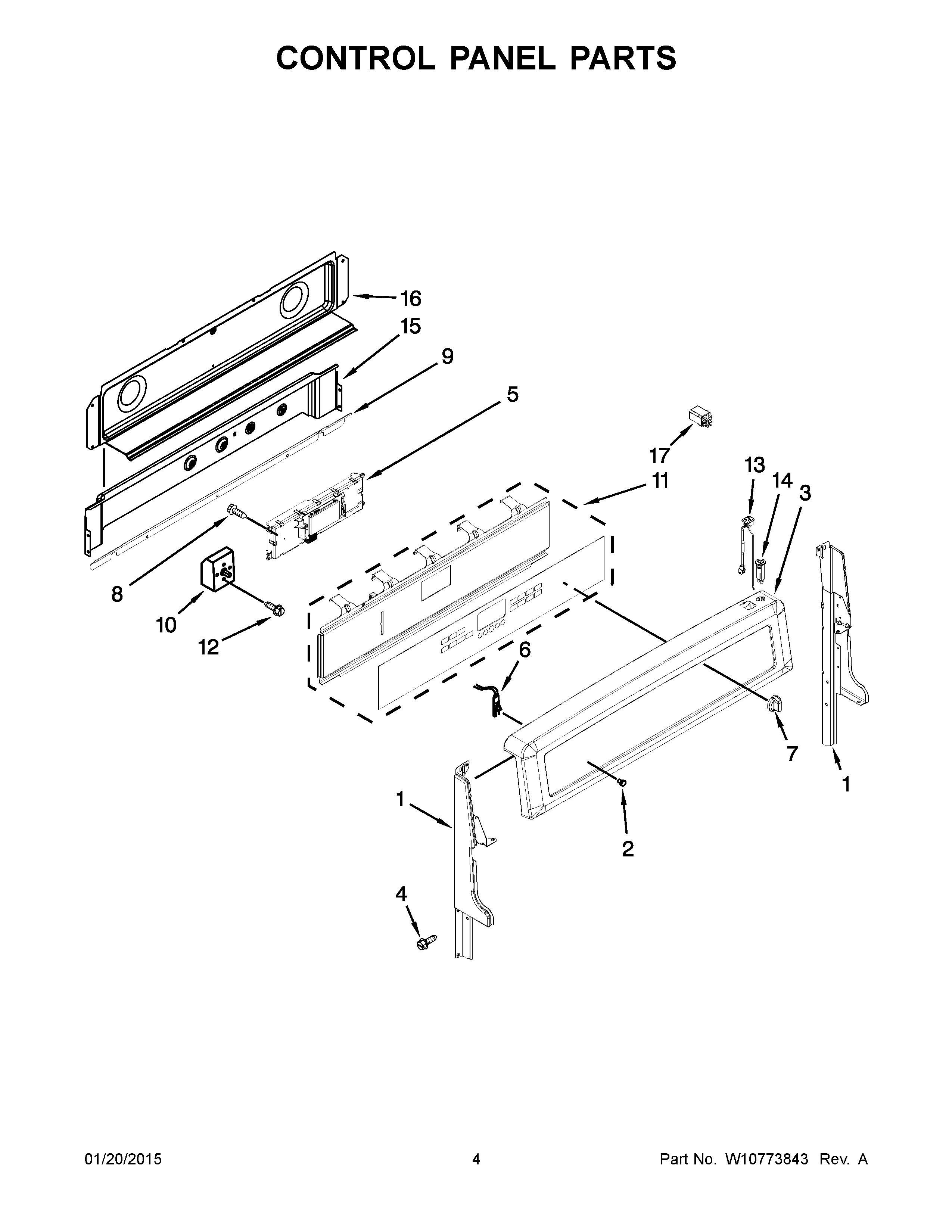

YMET8720DE01 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	MAY W10319112
1	MAY W10319109
1B	MAY W10319110
1A	MAY W10319111
2	MAY 3196068
3	CONSOLE, PANEL (BLACK)
3B	CONSOLE, PANEL (STAINLESS)
3A	CONSOLE, PANEL (WHITE)
4	Screw (2) (Black)
5	MAY W10692915
6	MAY 7407P136-60
7	MAY W10650402
8	MAY 7101P434-60
9	SHIELD, WIRE COVER
10B	SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
10	SWITCH, INFINITE (LEFT FRONT)
10A	SWITCH, INFINITE (RIGHT FRONT)
11A	MAY W10664063
11B	MAY W10664065
11	MAY W10664064
12	SCREW
13	MAY W10488078
13A	MAY W10488077
14A	BREAKER, CIRCUIT (WHITE)
14	BREAKER, CIRCUIT (BLACK)
15	MAY W10278697
16	COVER, BACKGUARD
17	MAY W10326400
