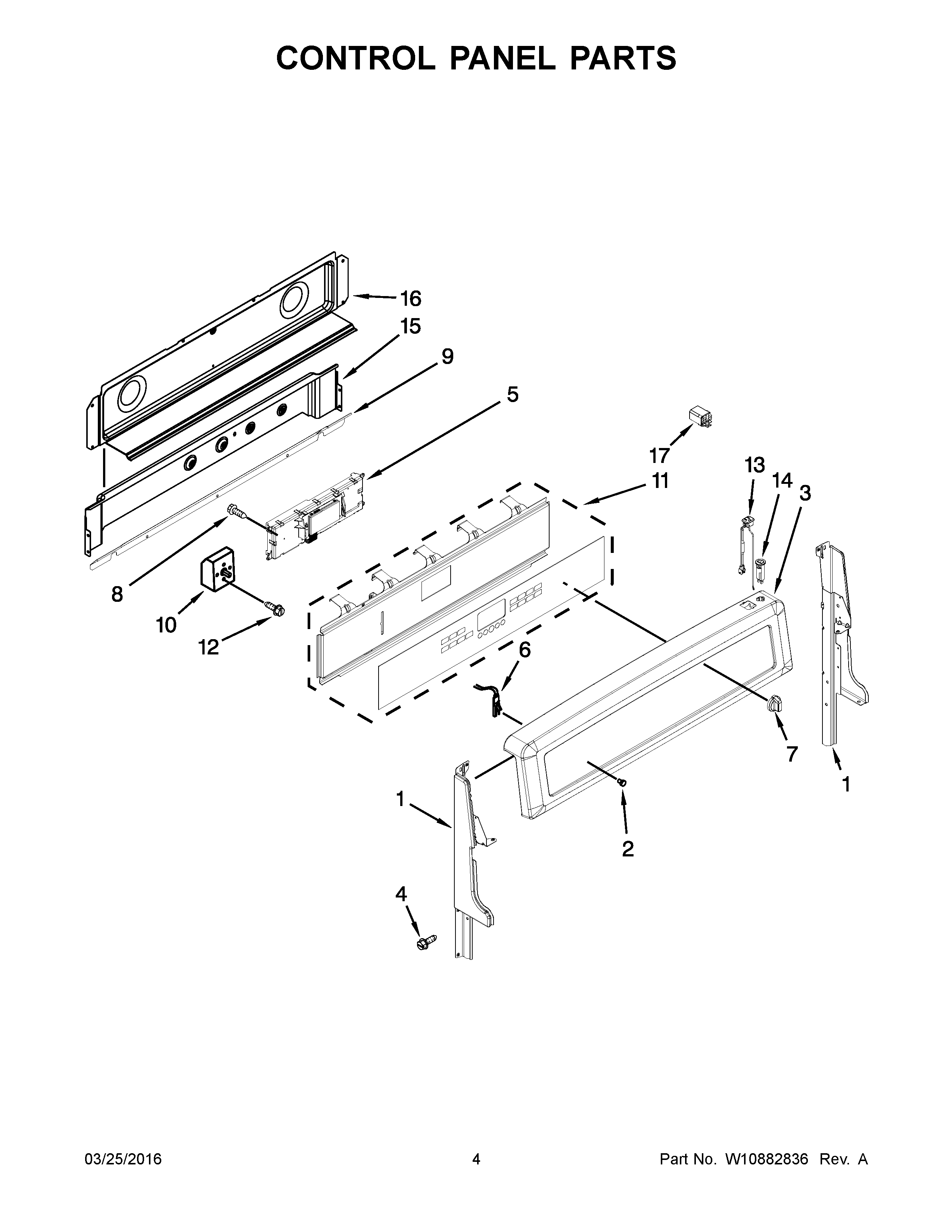

YMET8720DH03 03 – CONTROL PANEL PARTS

YMET8720DH03 03 – CONTROL PANEL PARTS

Written by

in

YMET8720DH03 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CMAY W10319112
1AMAY W10319111
1BMAY W10319110
1MAY W10319109
2MAY 3196068
3BCONSOLE, PANEL (STAINLESS)
3CONSOLE, PANEL (BLACK)
3ACONSOLE, PANEL (WHITE)
4Screw (2) (Black)
4AMAY 7101P636-60
5MAY W10778304
6MAY 7407P136-60
7MAY W10650402
8MAY 7101P434-60
9SHIELD, WIRE COVER
10ASWITCH, INFINITE (RIGHT FRONT)
10BSWITCH, INFINITE (LEFT REAR & RIGHT REAR)
10SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
11BMAY W10664065
11AMAY W10664063
11MAY W10664064
12SCREW
13ARECEPTACLE, FUSED (WHITE)
13RECEPTACLE, FUSED (BLACK)
14ABREAKER, CIRCUIT (WHITE)
14BREAKER, CIRCUIT (BLACK)
15MAY W10278697
16MAY W10776098
17MAY W10326400
