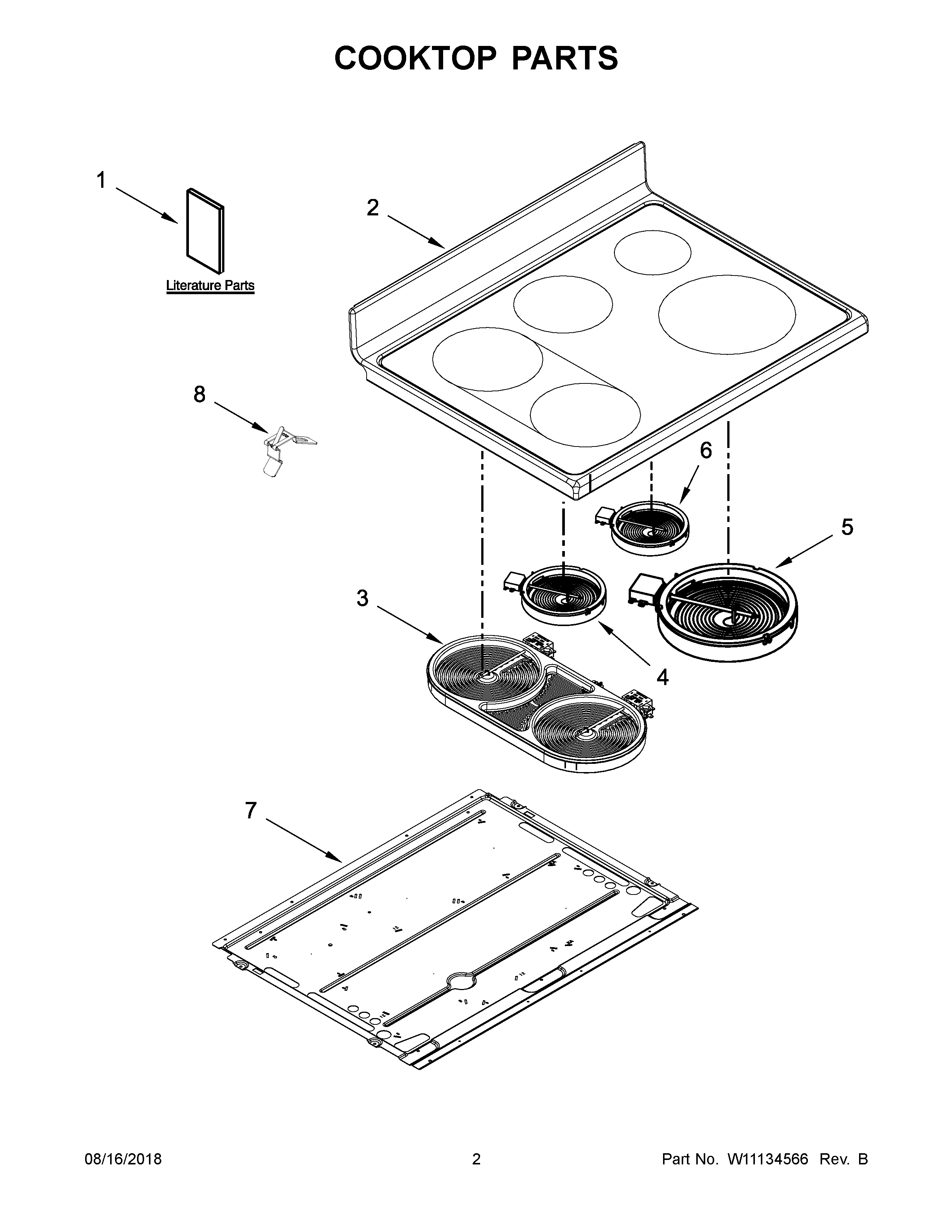

YMET8800FZ00 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, EOL (MRC)
NI	CORD, POWER
NI	CLIP, WIRE
NI	BLOCK, WIRE ADAPTER (3)
NI	Clip, Wire
NI	MAY W10745683
NI	SCREW, GROUND (GRN)
NI	HARNESS, COOKTOP
NI	WP7103P027-60 Whirlpool Nut
NI	HARNESS, INFINITE SWITCH (LEFT)
NI	HARNESS, INFINITE SWITCH (RIGHT)
NI	HARNESS, MAIN
1A	GUIDE, USE & CARE
1C	DIAGRAM, ELECTRIC WIRE
1D	TIPS, SAFE COOKING (ENGLISH)
1B	MAY W10647745
1	MAY W10430958
1E	TIPS, SAFE COOKING (FRENCH)
2	COOKTOP (BLACK)
3	ELEMENT, BRIDGE (RIGHT FRONT & RIGHT REAR)
4	ELEMENT, WARM ZONE (CENTER)
5	ELEMENT (3200W) (RIGHT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	MAY W10260946
8	SPRING, ELEMENT
