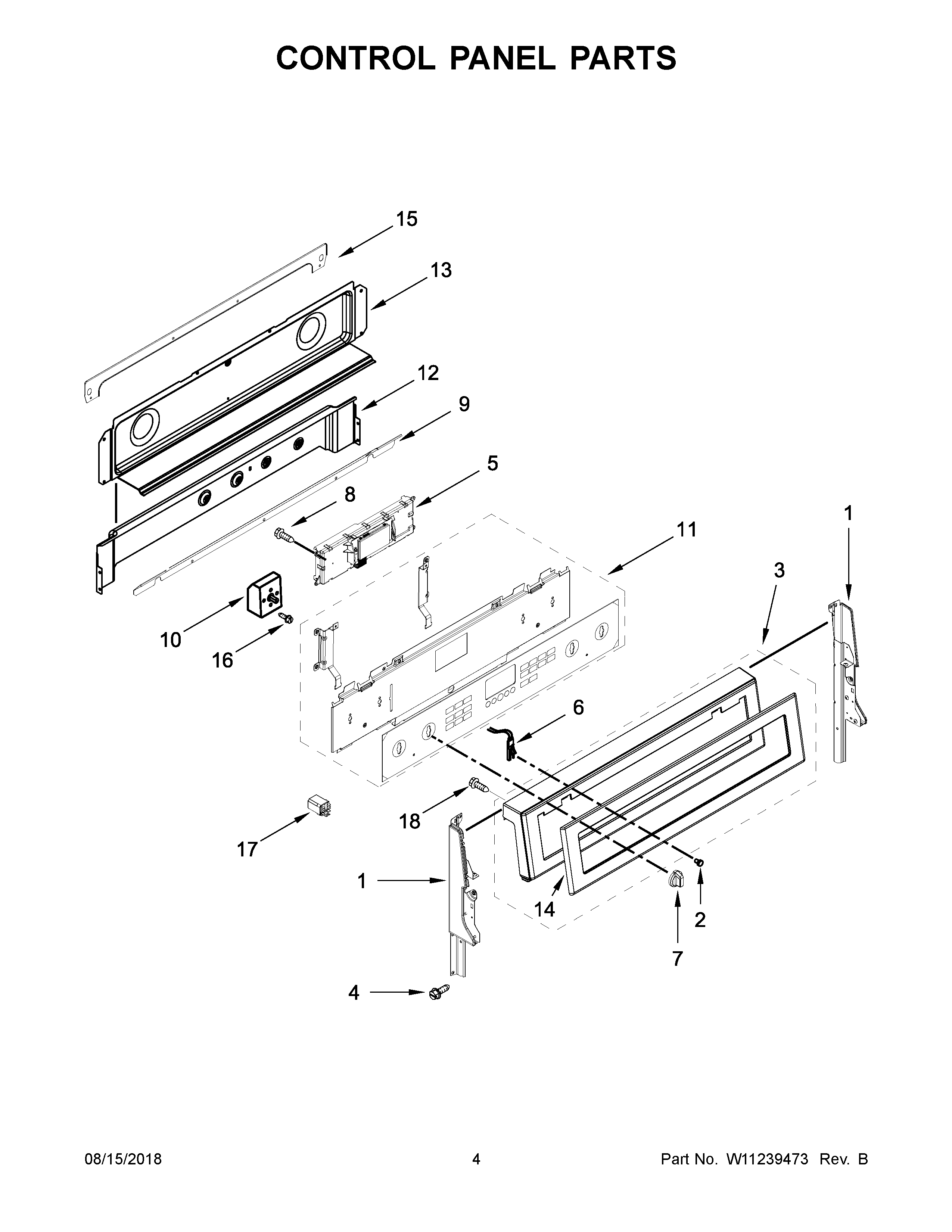

YMET8800FZ01 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10319109
1AMAY W10319111
2MAY 3196068
3ASSEMBLY, CONSOLE (STAINLESS)
4SCREW
5CONTROL, ELECTRIC
6MAY 7407P136-60
7KNOB (STAINLESS)
8MAY 7101P434-60
9SHIELD, WIRE COVER
10CSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
10BSWITCH, INFINITE (RIGHT FRONT)
10AMAY W10843843
10SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
11ASSEMBLY, MEMBRANE (INCLUDES BRACKET) (STAINLESS)
12MAY W10278697
13MAY W10776098
14LINER (NOT A SERVICEABLE PART)
15COVER, WIRE FILLER
16SCREW
17MAY W10326400
18SCREW
