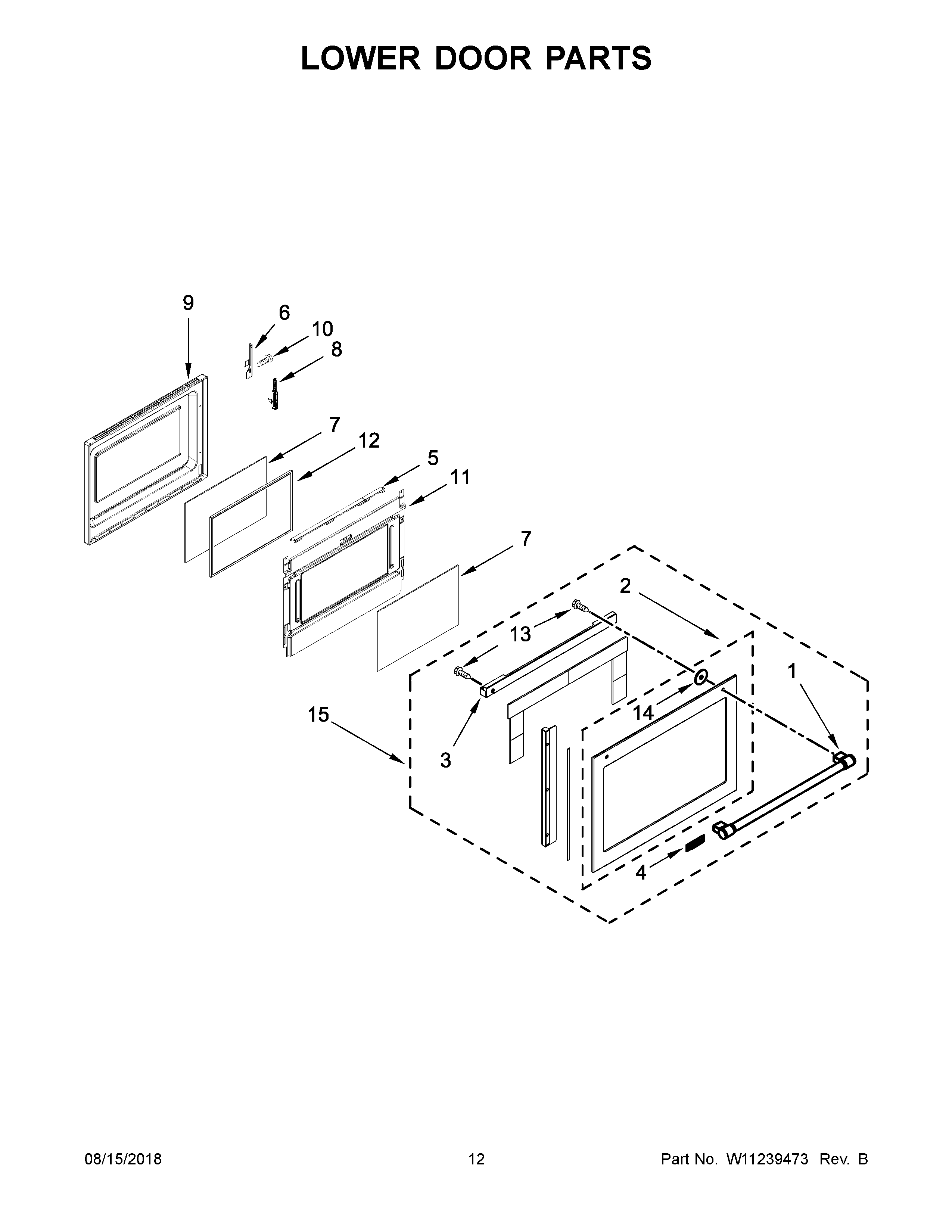

YMET8800FZ01 07 – LOWER DOOR PARTS

YMET8800FZ01 07 – LOWER DOOR PARTS

Written by

in

YMET8800FZ01 07 – LOWER DOOR PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (STAINLESS)
2PANEL, OUTER DOOR (STAINLESS)
3BRACKET, HANDLE
4BADGE
5FRAME, GLASS
6RECEIVER (LEFT)
6ARECEIVER (RIGHT)
7GLASS, INNER
8HINGE, DOOR (LEFT)
8AHINGE, DOOR (RIGHT)
9MAY W10272698
10MAY 4449040
11MAY W10340464
12MAY W10321285
13SCREW
14MAY 7109P084-60
15ASSEMBLY, OUTER DOOR (STAINLESS)
