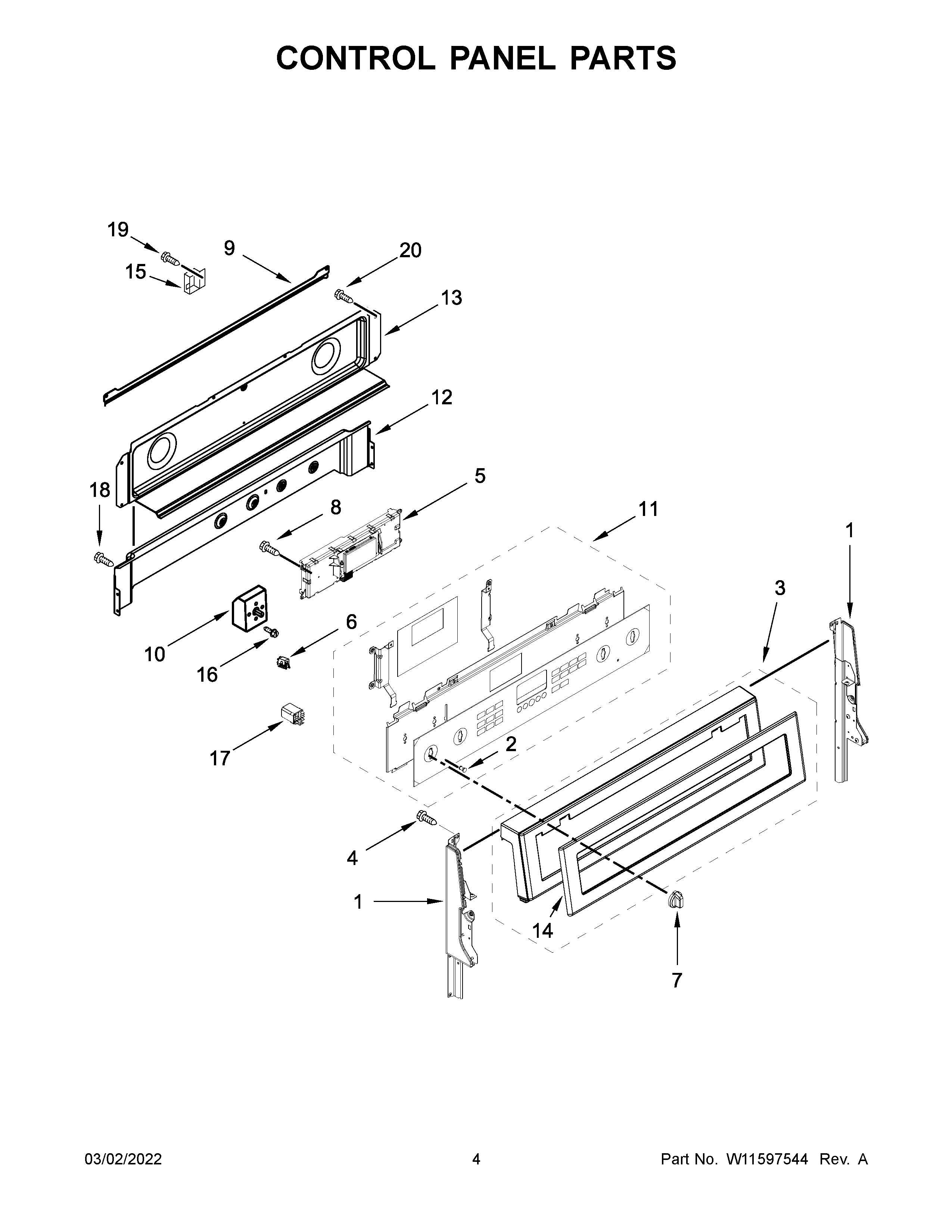

YMET8800FZ05 03 – CONTROL PANEL PARTS

YMET8800FZ05 03 – CONTROL PANEL PARTS

Written by

in

YMET8800FZ05 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
2WP3196068 Whirlpool Light Lens
3W11132197 Whirlpool Control Panel
4SCREW
5CONTROL, MAXWELL ELECTRIC
6Light, Indicator
7W11132201 Whirlpool Knob
8SCREW
10BW10917724 Whirlpool Infinite Switch
10CW10911303 Whirlpool Infinite Switch
10AW11661906 Whirlpool Range Infinite Switch
10WPW10312185 Whirlpool Infinite Switch
11W11527471 Whirlpool Control Panel
12W10278697 Whirlpool Vent Shield Assembly
13W10776098 Whirlpool Rear Cover
14CABINET (NOT A SERVICEABLE PART)
158285593 Whirlpool Oven Wire Cover
16WPL 7101P30960
17RELAY (12V)
18W11245710 Whirlpool Refrigerator Screw
19WPW10292297 Whirlpool Screw
20SCREW
