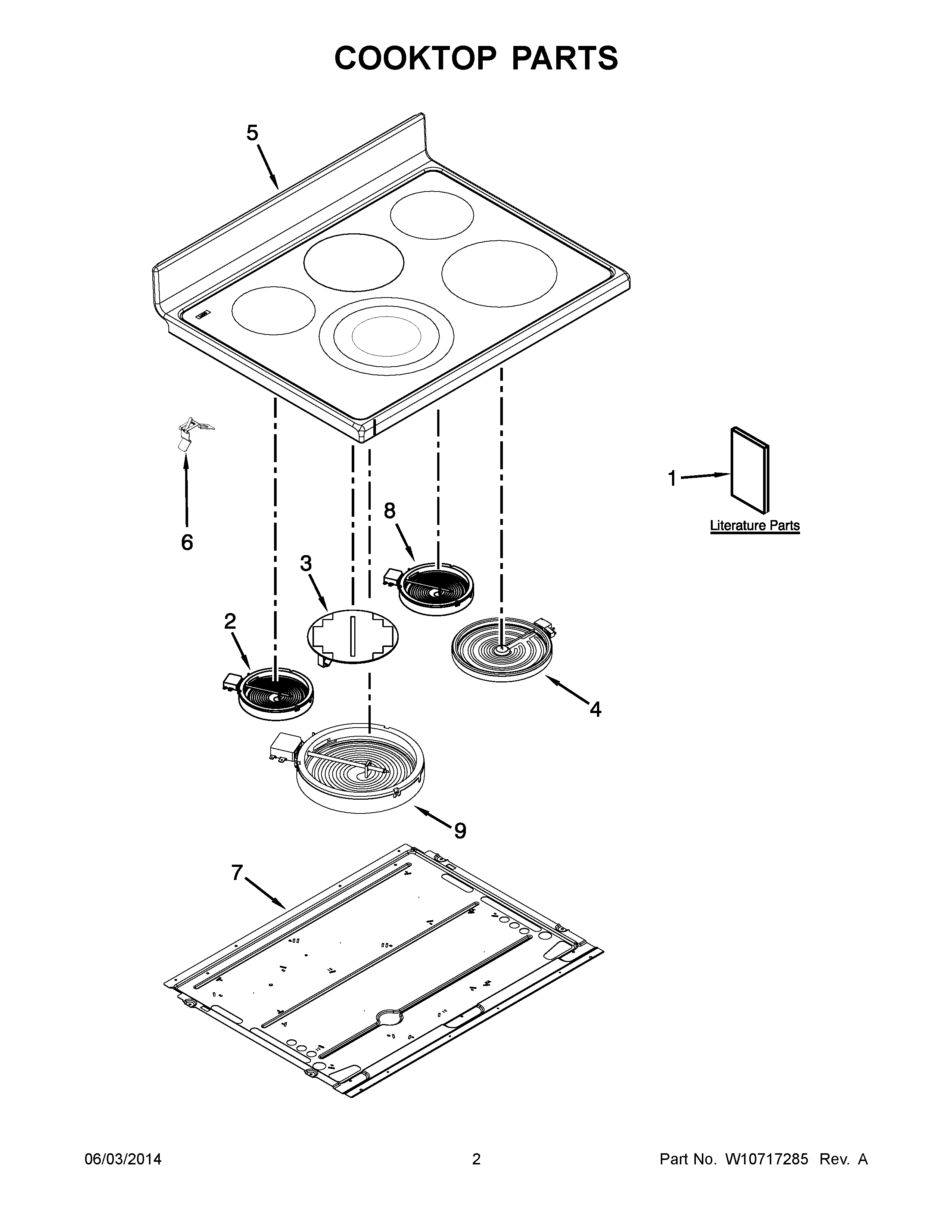

YMET8820DS00 02 – COOKTOP PARTS

YMET8820DS00 02 – COOKTOP PARTS

Written by

in

YMET8820DS00 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIBLOCK, WIRE ADAPTER (3)
NIWIRING HARNESS PARTS, HARNESS, INFINITE SWITCH LEFT
NIWIRING HARNESS PARTS, HARNESS, SENSOR
NIWIRING HARNESS PARTS, HARNESS, INFINITE SWITCH RIGHT
NIClip, Wire
NICORD, POWER
NISCREW, GROUND (GRN)
NIMAY W10668433
NIWIRING HARNESS PARTS, HARNESS, COOKTOP
1MAY W10669246
1MAY W10696177
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10430958
1TIPS, SAFE COOKING (FRENCH)
2ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3Element, Warm
4ELEMENT, HYPER (3200W) (RIGHT FRONT)
5MAY W10664054
6SPRING, ELEMENT
7MAY W10260946
8ELEMENT, SURFACE (700W) (RIGHT REAR)
9ELEMENT, TRIPLE (2700W) (LEFT FRONT)
