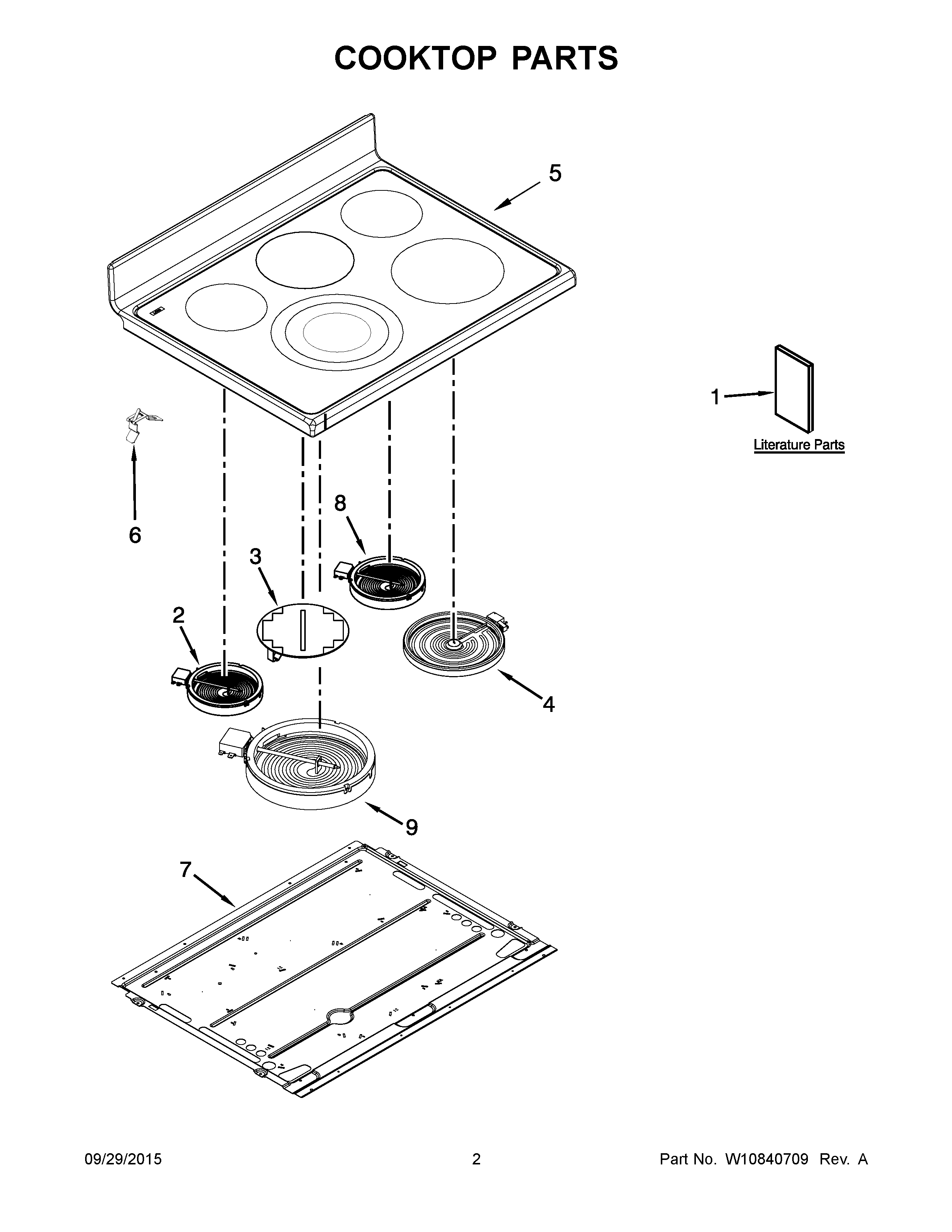

YMET8820DS02 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	BLOCK, WIRE ADAPTER (3)
NI	WIRING HARNESS PARTS, HARNESS, INFINITE SWITCH LEFT
NI	WIRING HARNESS PARTS, HARNESS, INFINITE SWITCH RIGHT
NI	Clip, Wire
NI	WIRING HARNESS PARTS, HARNESS, COOKTOP
NI	CORD, POWER
NI	SCREW, GROUND (GRN)
NI	HARNESS, EOL (MRC)
NI	MAY W10745683
NI	MAY W10745671
1A	MAY W10748894
1B	MAY W10647745
1	MAY W10430958
1D	TIPS, SAFE COOKING (FRENCH)
1C	TIPS, SAFE COOKING (ENGLISH)
2	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3	Element, Warm
4	ELEMENT (3200W) (RIGHT FRONT)
5	MAY W10664054
6	SPRING, ELEMENT
7	MAY W10260946
8	ELEMENT, SURFACE (700W) (RIGHT REAR)
9	ELEMENT, TRIPLE (2700W) (LEFT FRONT)
