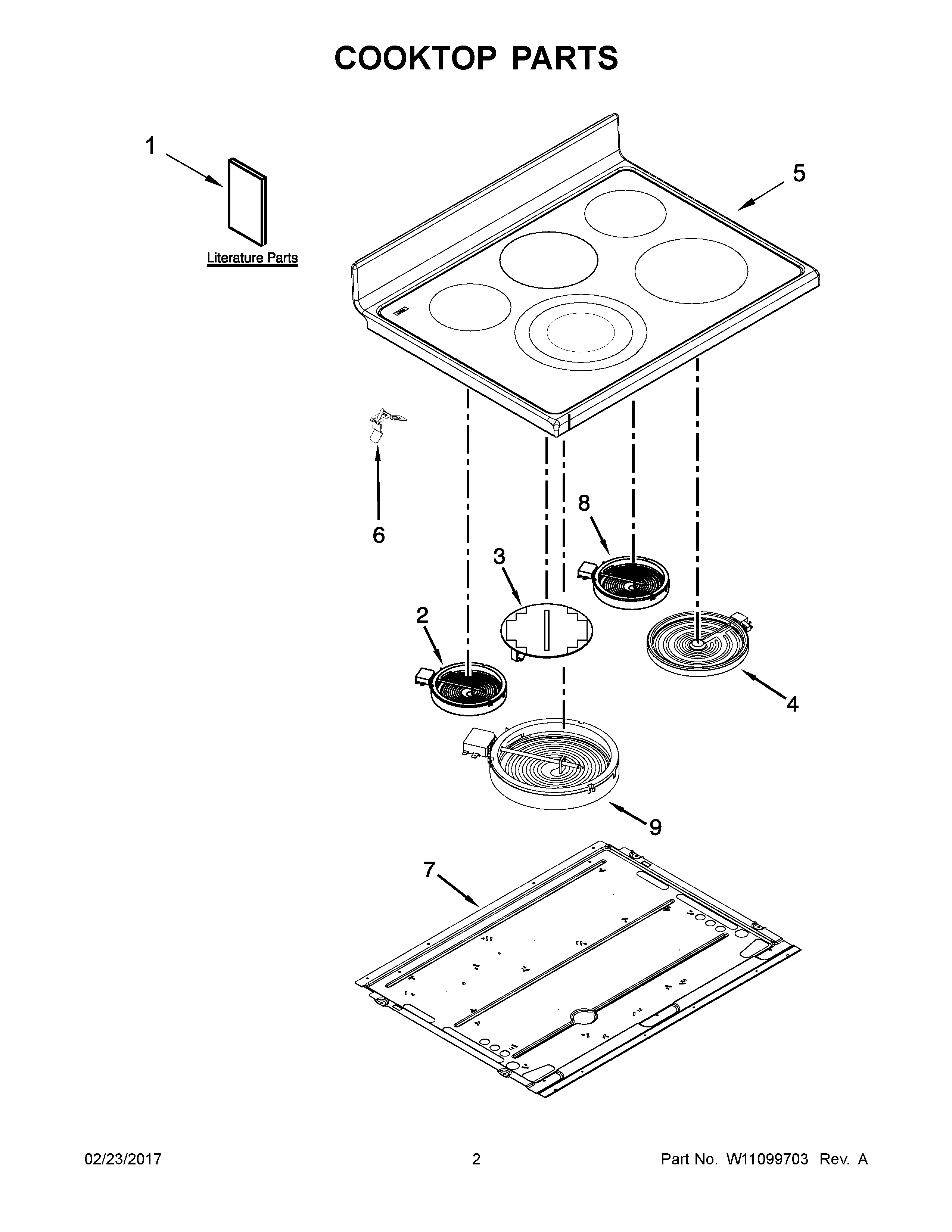

YMET8820DS03 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	CORD, POWER
NI	WIRING HARNESS PARTS, HARNESS, COOKTOP
NI	WIRING HARNESS PARTS, HARNESS, INFINITE SWITCH LEFT
NI	MAY W10745683
NI	MAY W10825612
NI	MAY W10825603
NI	HARNESS, EOL (MRC)
NI	CLIP, WIRE
NI	BLOCK, WIRE ADAPTER (3)
NI	Clip, Wire
NI	SCREW, GROUND (GRN)
1D	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10430958
1E	TIPS, SAFE COOKING (FRENCH)
1A	MAY W10748894
1B	MAY W10647745
1C	DIAGRAM, ELECTRIC WIRE
2	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3	ELEMENT, WARM ZONE (CENTER)
4	ELEMENT (3200W) (RIGHT FRONT)
5	MAY W10664054
6	SPRING, ELEMENT
7	MAY W10260946
8	ELEMENT, SURFACE (700W) (RIGHT REAR)
9	MAY W10670279
