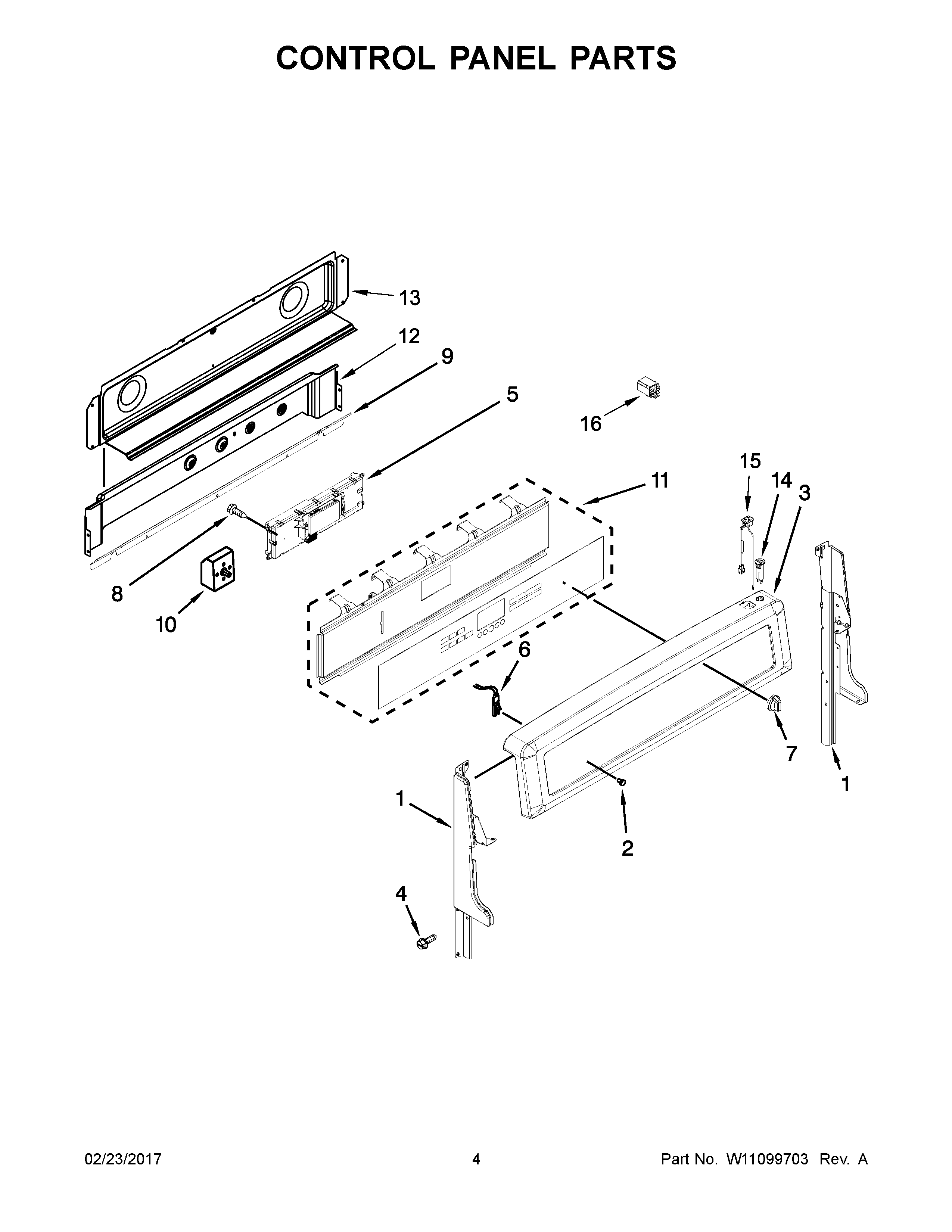

YMET8820DS03 03 – CONTROL PANEL PARTS

YMET8820DS03 03 – CONTROL PANEL PARTS

Written by

in

YMET8820DS03 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10319109
1AMAY W10319111
2MAY 3196068
3CONSOLE, PANEL (STAINLESS)
4Screw (2) (Black)
5CONTROL, ELECTRONIC
6MAY 7407P136-60
7MAY W10650402
8MAY 7101P500-60
9SHIELD, WIRE COVER
10BSWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
10SWITCH, INFINITE (LEFT FRONT)
10CSWITCH, INFINITE (RIGHT FRONT)
10ASWITCH, INFINITE (LEFT REAR & RIGHT REAR)
11MAY W10664066
12MAY W10278697
13MAY W10776098
14BREAKER, CIRCUIT (BLACK)
15RECEPTACLE, FUSED (BLACK)
16MAY W10326400
