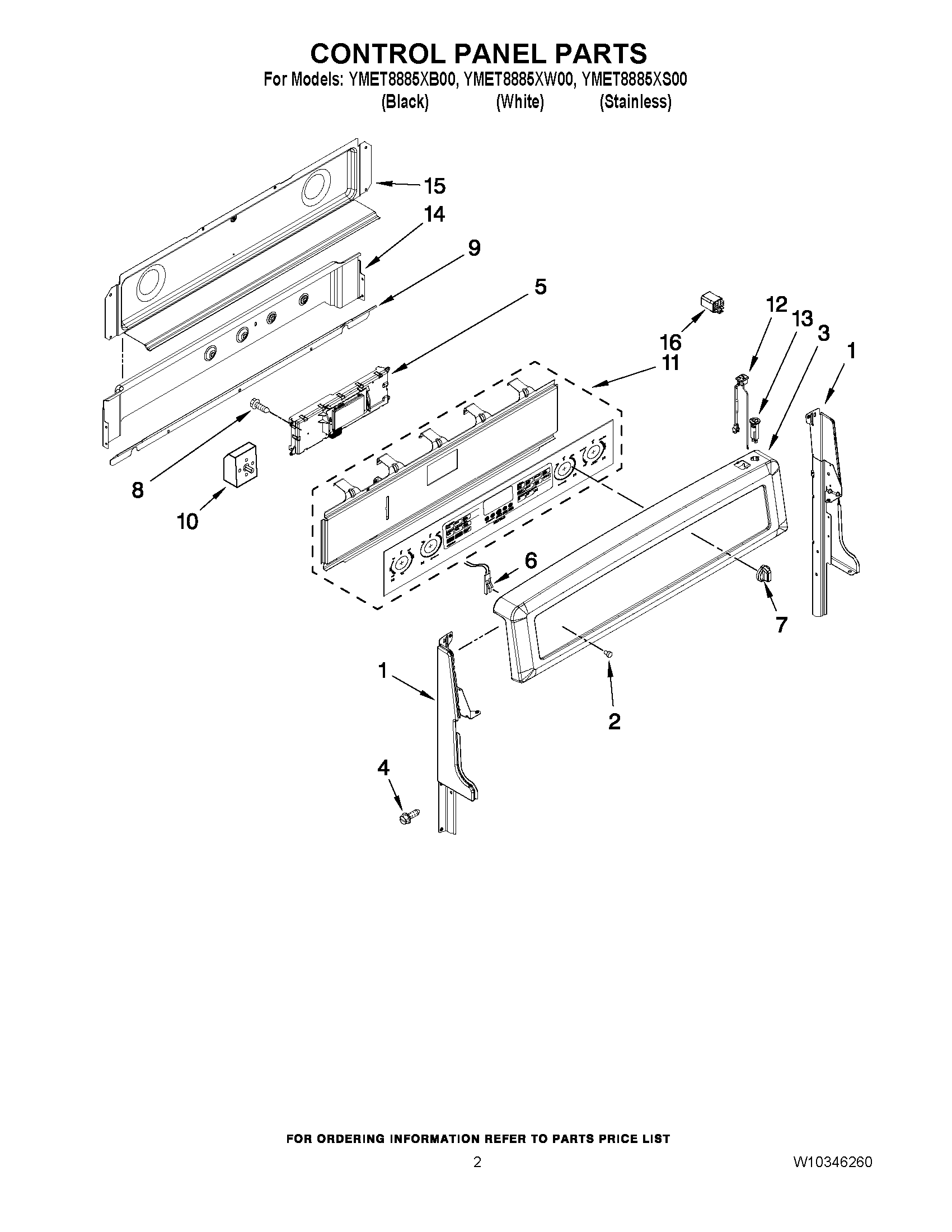

YMET8885XB00 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10319112
1	MAY W10319111
1	MAY W10319110
1	MAY W10319109
2	MAY 3196068
3	CONSOLE, PANEL (STAINLESS)
3	CONSOLE, PANEL (WHITE)
3	CONSOLE, PANEL (BLACK)
4	Screw (2) (Black)
5	MAY W10293884
6	MAY 7407P136-60
7	MAY W10294794
7	MAY W10294796
8	MAY 7101P500-60
9	SHIELD, WIRE COVER
10	SWITCH, INFINITE (LEFT FRONT)
10	SWITCH, INFINITE (RIGHT FRONT)
10	SWITCH, INFINITE (LEFT FRONT)
10	SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
11	ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE)
11	ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
11	ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS)
12	RECEPTACLE (BLACK)
13	BREAKER, CIRCUIT (BLACK)
14	MAY W10278697
15	COVER, BACKGUARD
16	MAY W10326400
