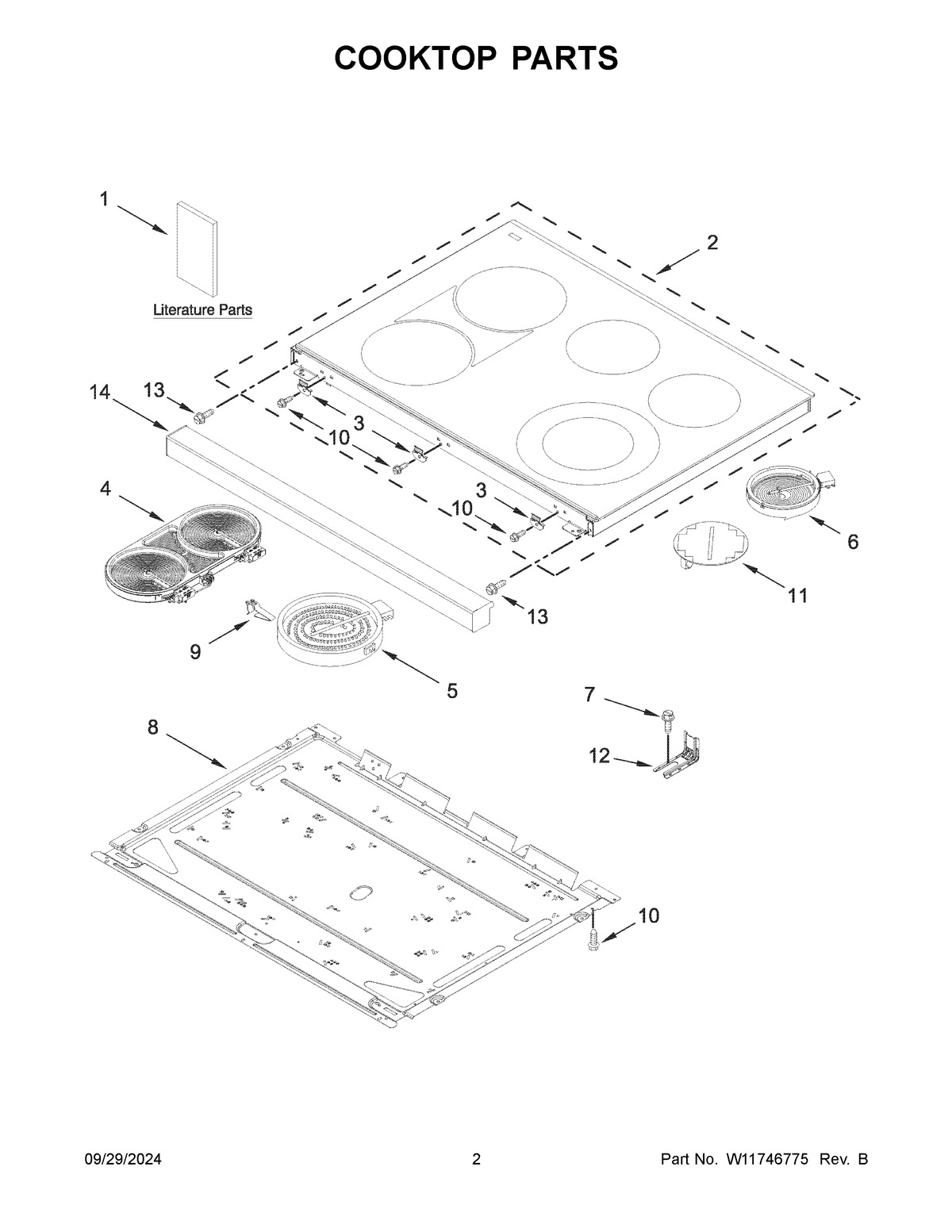

YMFES6030RW0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, COOKTOP
NI	3196896 Whirlpool Clip
NI	HARNESS, MAIN
NI	W11172528 Whirlpool Harness Wire
NI	FOLLOWING PARTS NOT ILLUSTRATED
1B	TECH SHEET
1	OWNER'S MANUAL
1A	QUICK START GUIDE
2	COOKTOP
3	BRACKET, COOKTOP
4	WPW10248259 Whirlpool Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	W11663556 Whirlpool Spring Assembly
10	WP3196557 Whirlpool Screw
11	ELEMENT, WARM ZONE (CENTER)
12	W11447673 Whirlpool Range Tip Anchor
13	Screw
14	BULLNOSE (WHITE)
