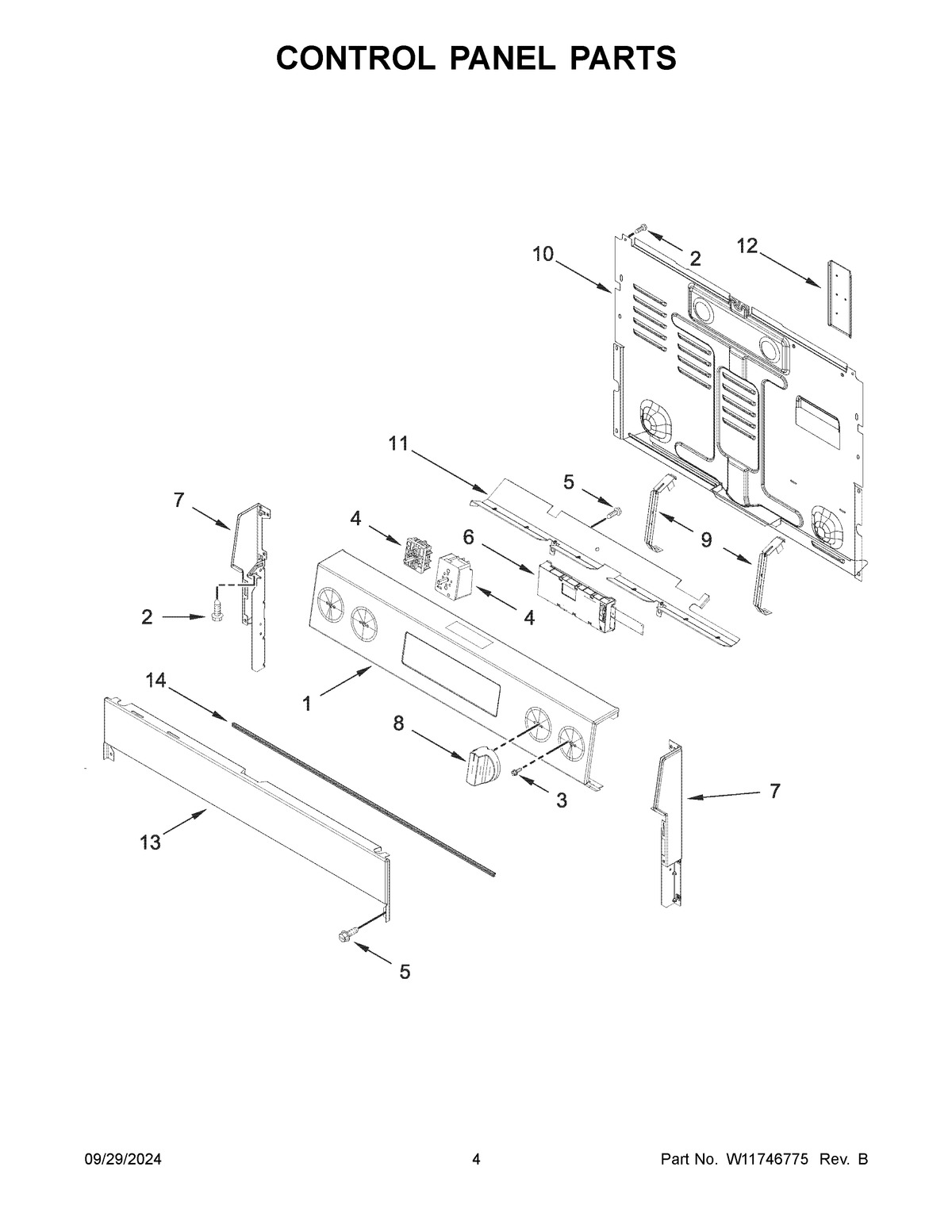

YMFES6030RW0 03 – CONTROL PANEL PARTS

YMFES6030RW0 03 – CONTROL PANEL PARTS

Written by

in

YMFES6030RW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (WHITE)
2SCREW
3WP3400882 Whirlpool Screw
4AW11661906 Whirlpool Range Infinite Switch
4BW10911303 Whirlpool Infinite Switch
4SWITCH-INF
5WP3196557 Whirlpool Screw
6W11729982-includeCORE Whirlpool W11729982 Dishwasher Electronic Control Board with Core
7AENDPOST, CONSOLE (WHITE (RIGHT))
7ENDPOST, CONSOLE (WHITE (LEFT))
8KNOB
9BRACKET, CONTROL
10COVER-REAR
11SHIELD, HEAT
12COVER, REAR FLUE
13PANEL, LOWER (WHITE)
14GASKET, LOWER PANEL
