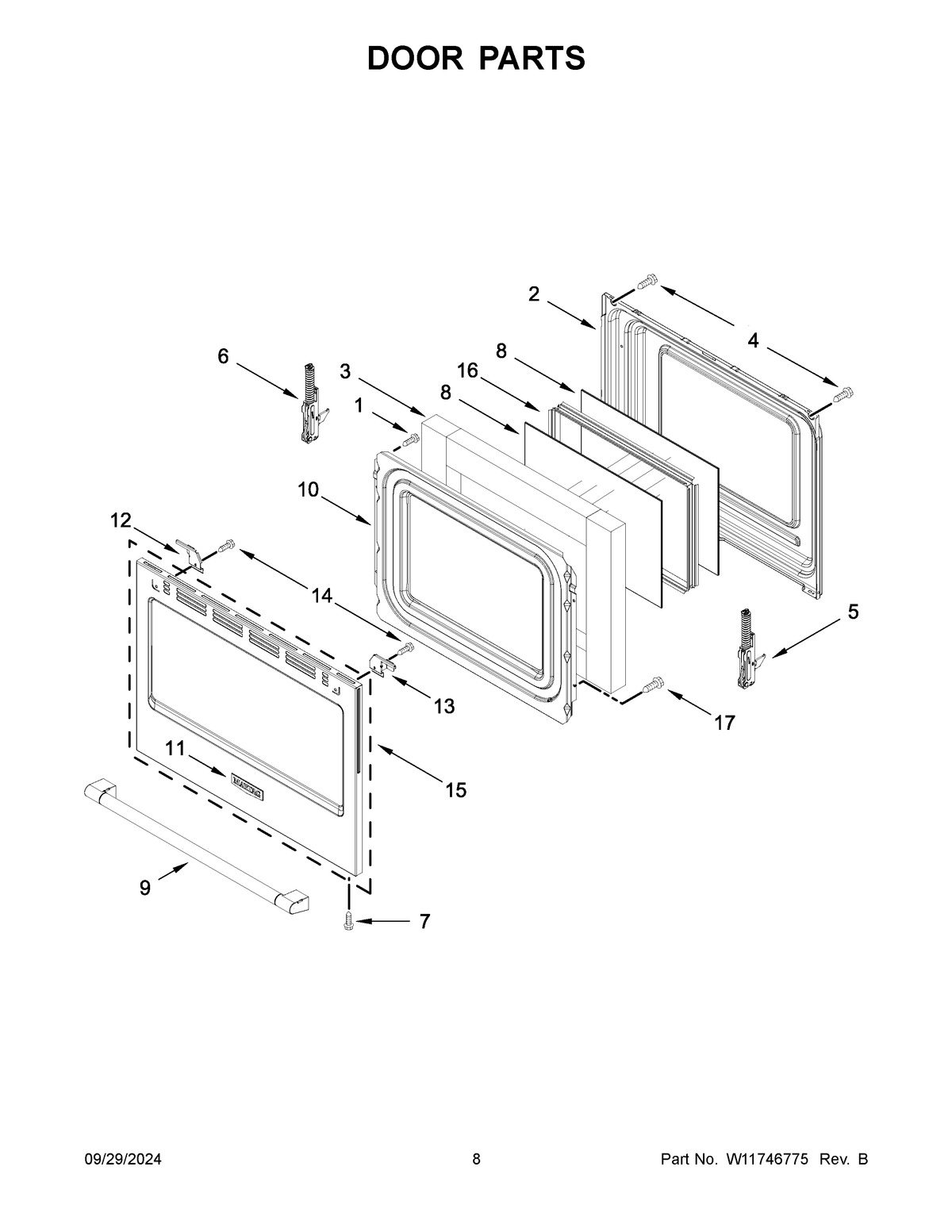

YMFES6030RW0 05 – DOOR PARTS

YMFES6030RW0 05 – DOOR PARTS

Written by

in

YMFES6030RW0 05 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4WPW10200660 Whirlpool Range Oven Door Handle Screw
5WPW10388635 Whirlpool Door Hinge
6WPW10440013 Whirlpool Door Hinge
7WP355214 Whirlpool Screw
8WP8053948 Whirlpool Door Glass
9HNDLE-DOOR
10W11539580 Whirlpool Retainer
11W11648754 Whirlpool Nameplate
12BRACKET, HANDLE MOUNT (LEFT)
13BRACKET, HANDLE MOUNT (RIGHT)
14WP3196154 Whirlpool Screw Assembly
15GLASS-DOOR
16WPW10316950 Whirlpool Window Frame
17W10777162 Whirlpool Screw
