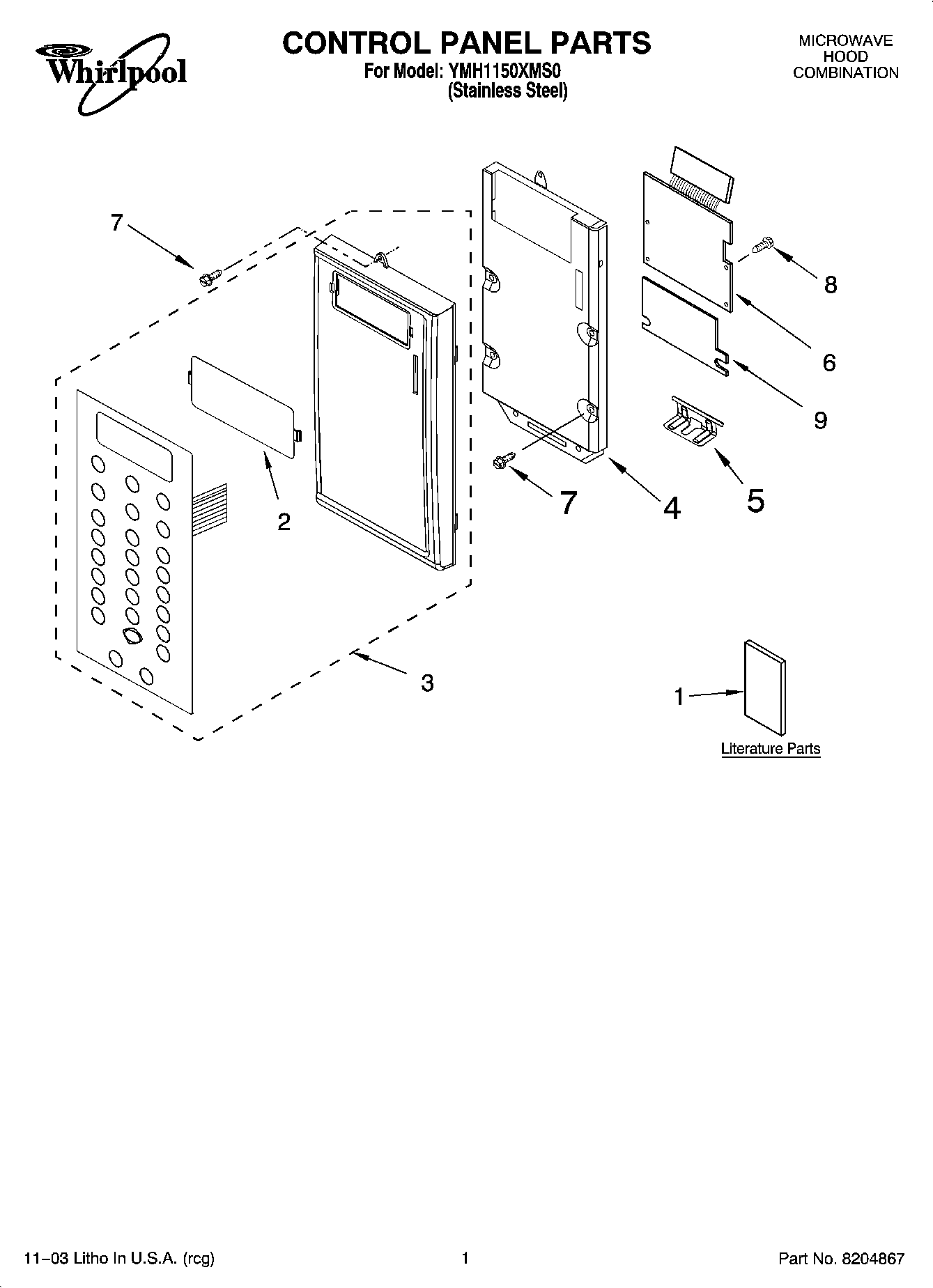

YMH1150XMS0 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (French)
1Literature Parts (English)
1Literature Parts (Use & Care Guide)
2Lens
3Panel, Control (Inlcudes 10)
4Bracket, Control
5Plate, Hinge
6PCB Assembly
7Screw
8Screw
9Foil, PCB
