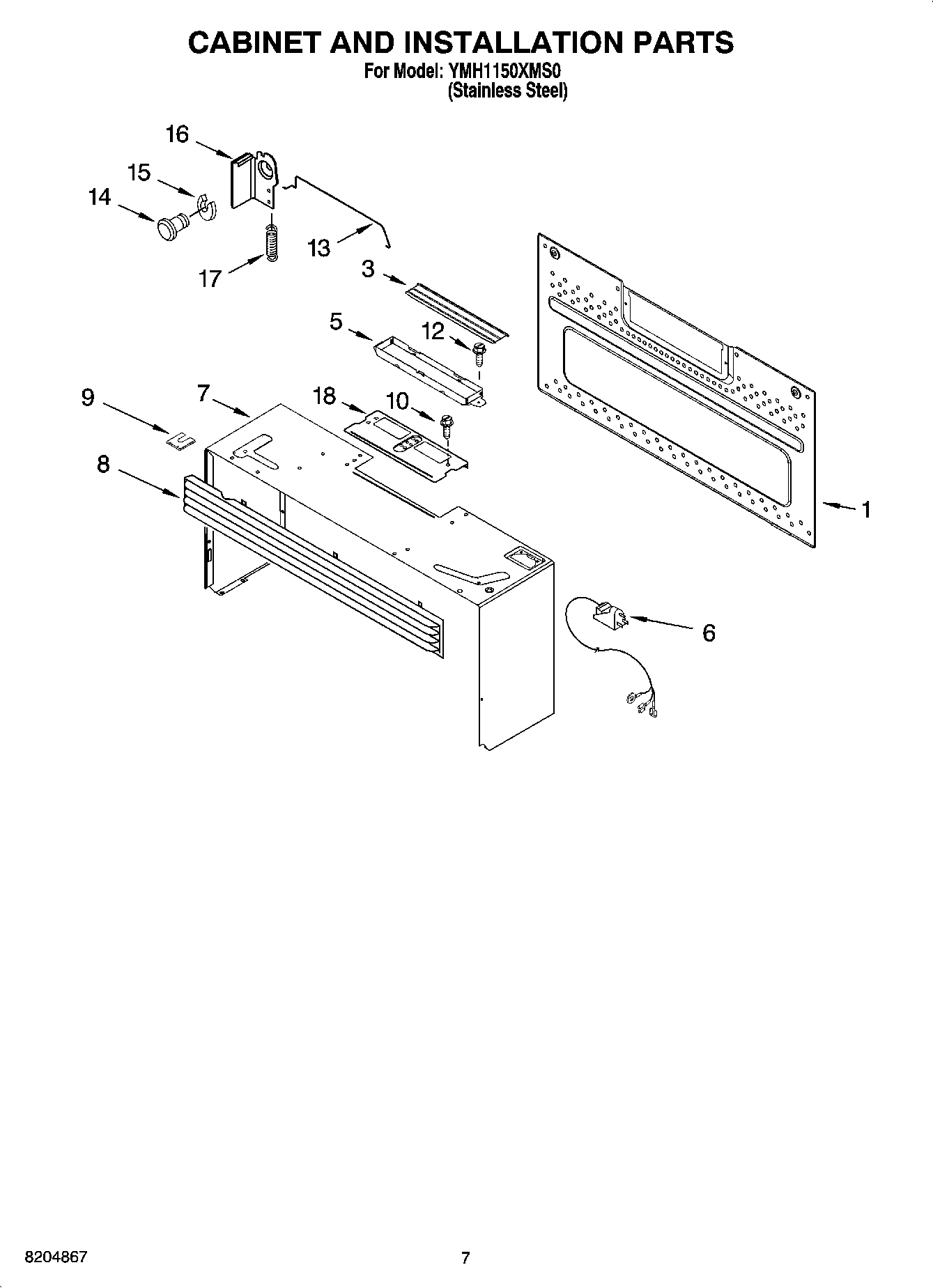

YMH1150XMS0 06 – CABINET AND INSTALLATION PARTS

YMH1150XMS0 06 – CABINET AND INSTALLATION PARTS

Written by

in

YMH1150XMS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
WP8169704 Whirlpool Screw
Upper Template
Template – Wall
Hardware, Installation
Miscellaneous
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
6W10708076 Whirlpool Microwave Power Cord
7Case, Outer (Black)
88184608 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
12Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18Plate, Damper
