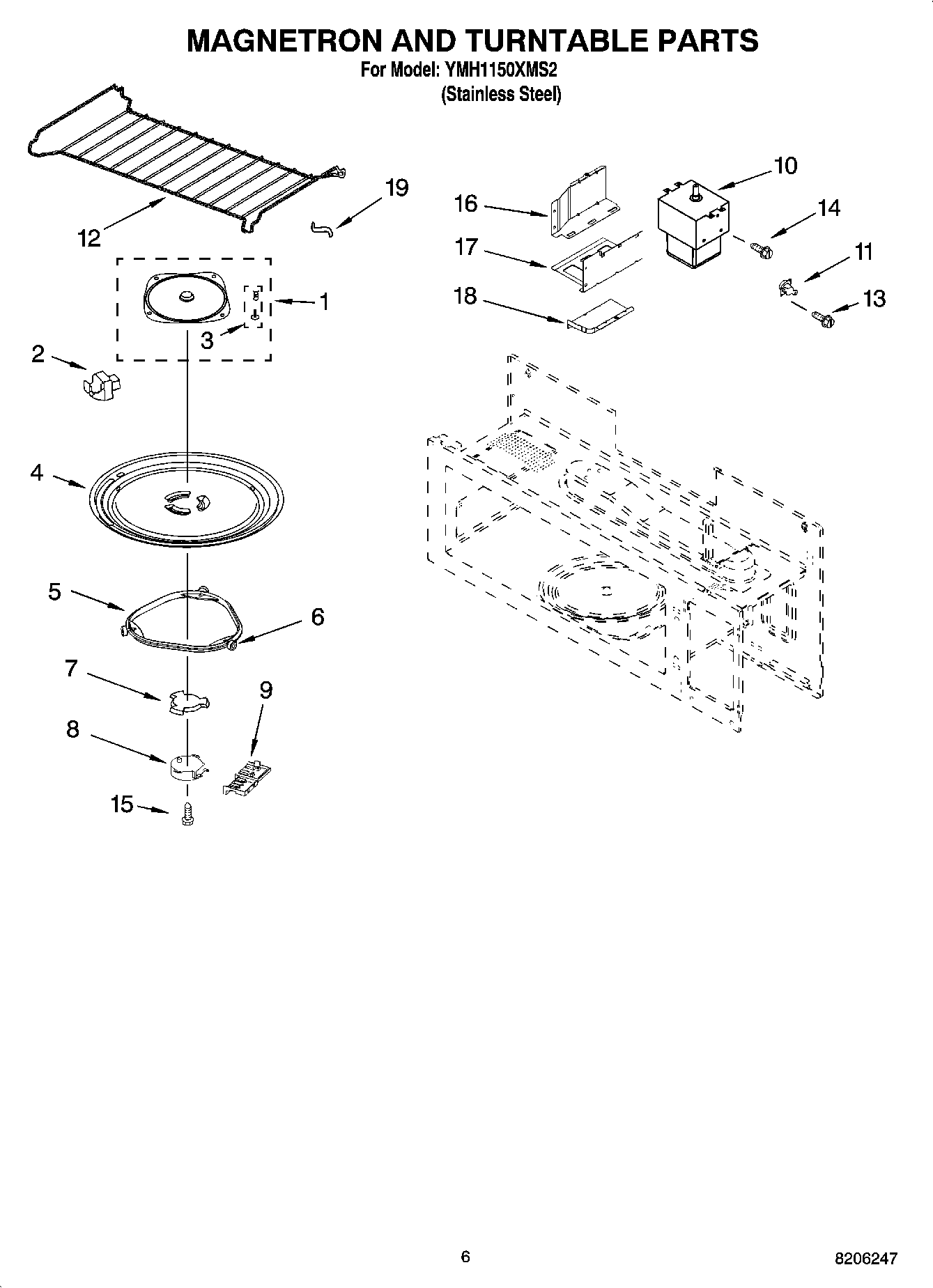

YMH1150XMS2 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Cover, Inlet
2	Hook, Rack (4)
3	Nails/Bushings (4 of each)
4	4393799 Whirlpool Microwave Glass Tray
5	W11252182 Whirlpool Glass Tray Support
6	Wheel, Plastic
7	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
8	W10642989 Whirlpool Microwave Oven Turntable Motor
9	Cover, Terminal
10	W10844213 Whirlpool Microwave Magnetron
11	Thermostat
12	Rack
13	Screw
14	WP8181660 Whirlpool Screw
15	Screw
16	Left Block, Magnetron
17	Middle Block, Magnetron
18	Right Block, Magnetron
19	W10315274 Whirlpool Microwave Meal Rack
