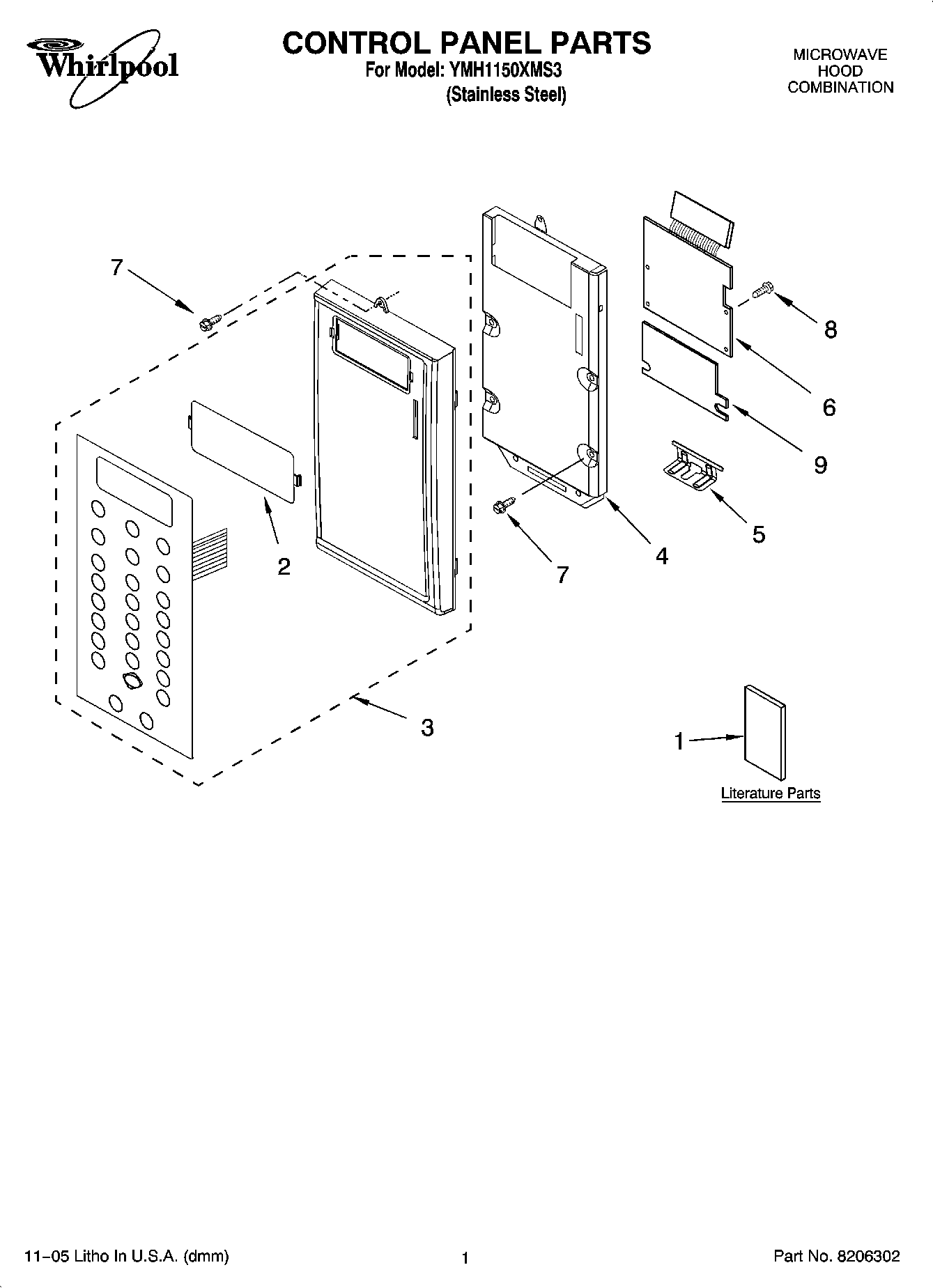

YMH1150XMS3 01 – CONTROL PANEL PARTS

YMH1150XMS3 01 – CONTROL PANEL PARTS

Written by

in

YMH1150XMS3 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Cook Guide Label (French)
1Cook Guide Label (English)
1Installation Instructions
2Lens
3Panel, Control (Inlcudes 10)
4Bracket, Control
5Plate, Hinge
6PCB Assembly
7Screw
8Screw
9Foil, PCB
