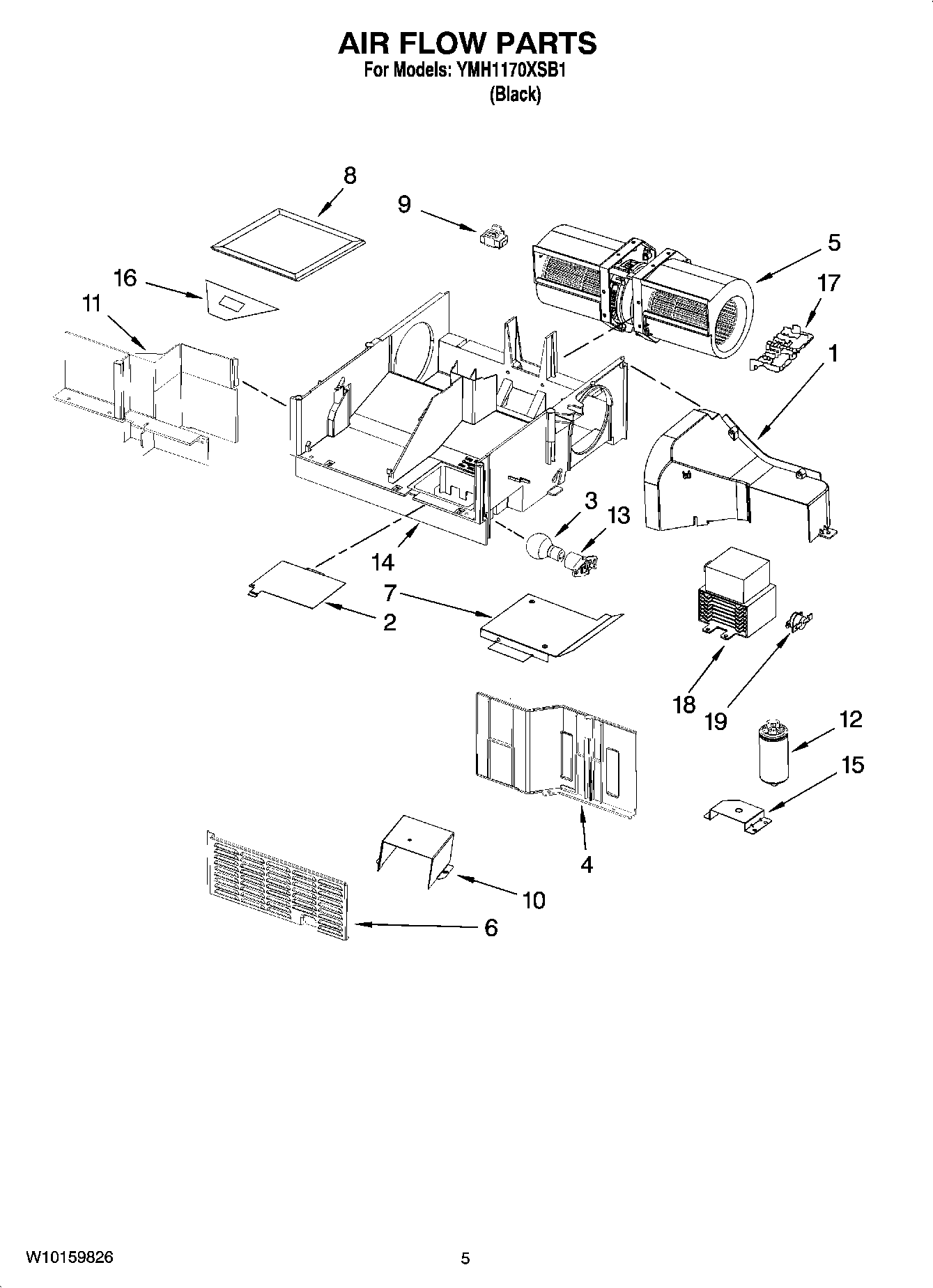

YMH1170XSB1 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	Cover, Side Inlet
5	Motor, Fan Assy
6	SHIELD
7	W10138797 Whirlpool Microwave Duct Cover
8	8206230A Whirlpool Microwave Charcoal Filter
9	W10596040 Whirlpool Microwave Nut
10	Channel, Air
11	AIR GUIDE
12	Filter
13	8169539 Whirlpool Microwave Light Bulb Socket and Housing
14	Base Plate, Air Guide
15	BRACKET, FILTER
16	SOCKET, MOTOR WIRE
17	Cover, Terminal
18	W10754299 Whirlpool Microwave Oven Magnetron
19	W10598693 Whirlpool Microwave Thermostat Fix
