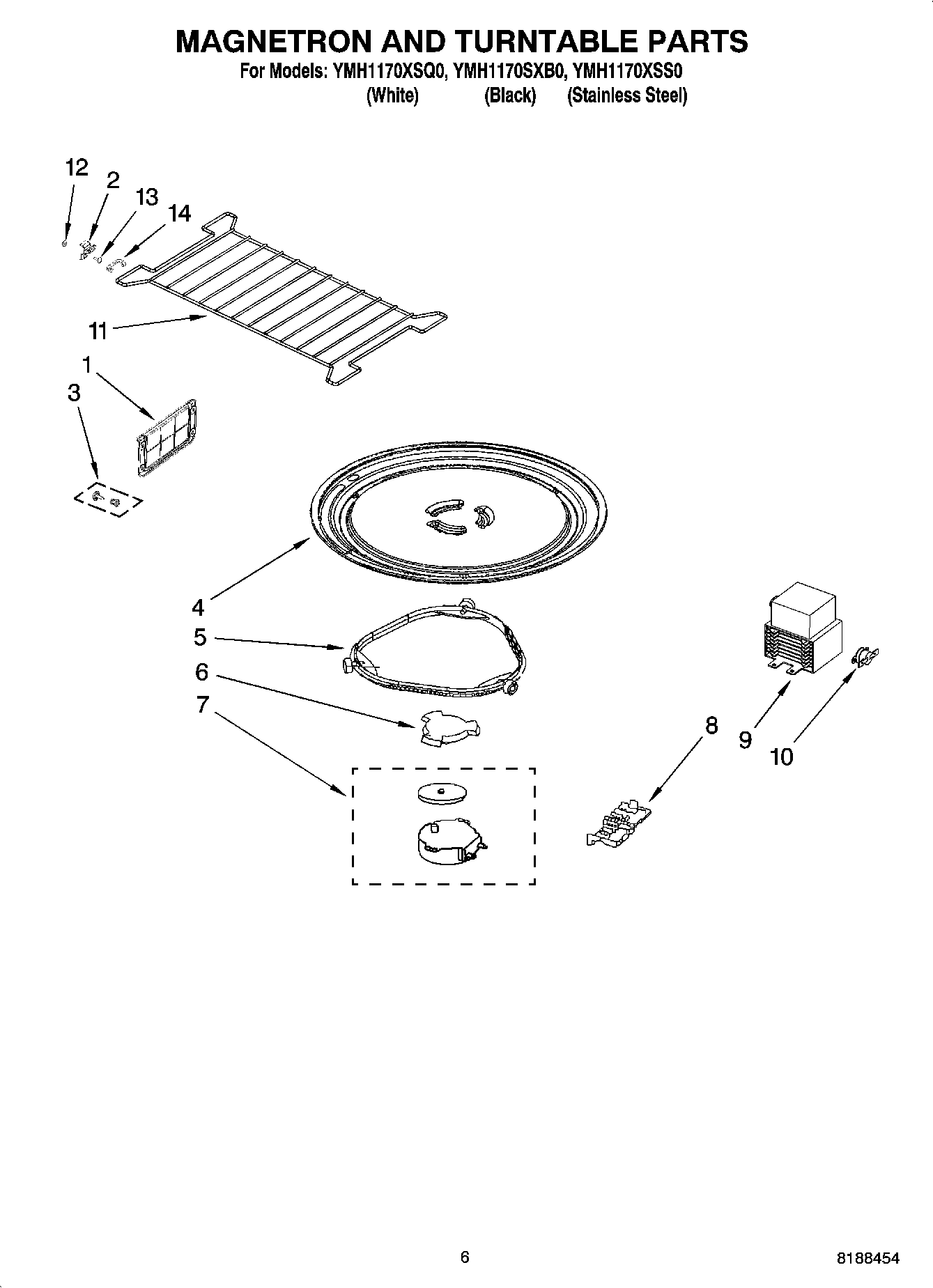

YMH1170XSQ0 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Cover, Inlet Includes Nails and Bushings
3	Nails/Bushings (4 of each)
4	4393799 Whirlpool Microwave Glass Tray
5	W11252182 Whirlpool Glass Tray Support
6	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
7	W10642989 Whirlpool Microwave Oven Turntable Motor
8	Cover, Terminal
9	W10754299 Whirlpool Microwave Oven Magnetron
10	W10598693 Whirlpool Microwave Thermostat Fix
11	W10315274 Whirlpool Microwave Meal Rack
12	W10107790 Whirlpool Microwave Washer
13	SCREW
