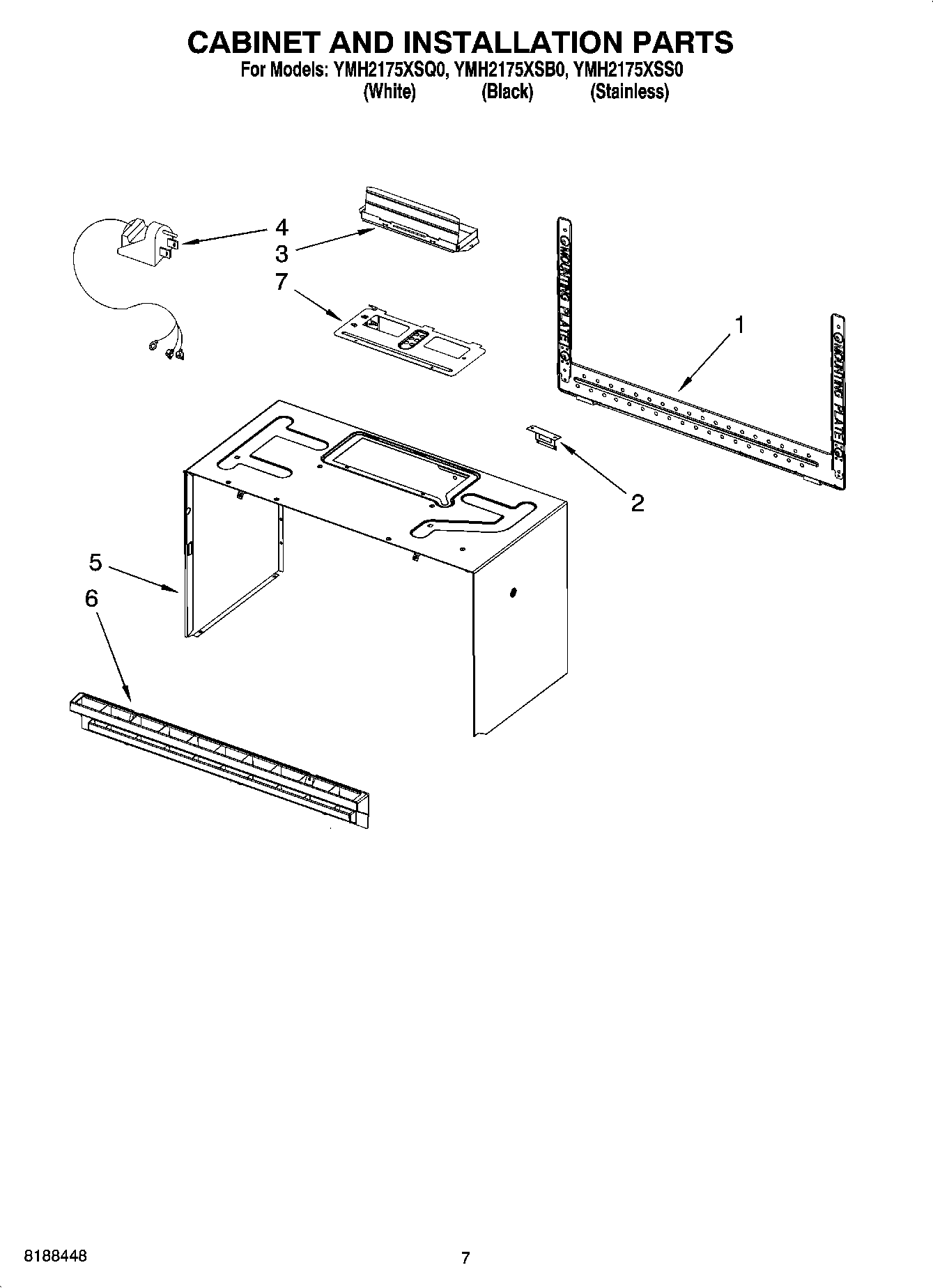

YMH2175XSB0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	WP8169704 Whirlpool Screw
	Template, Upper
	H.V. Wire Assy
	Main Harness
	Hdlmp/TT Wire Assy
	HV Trnsfrm Wr Assy
	Grnd Wire, Filter
	Harness Wire, NTC
	Ground Wire Assy.
	8205948 Whirlpool Microwave Mount
	Miscellaneous
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	8206388 Whirlpool Microwave Power Cord
5	Case, Outer (White)
5	Case, Outer (Black)
6	W10259625 Whirlpool Microwave Vent Grille
6	W10269471 Whirlpool Microwave Vent Grille
6	Grille, Vent (Universal Silver)
7	Plate, Damper
