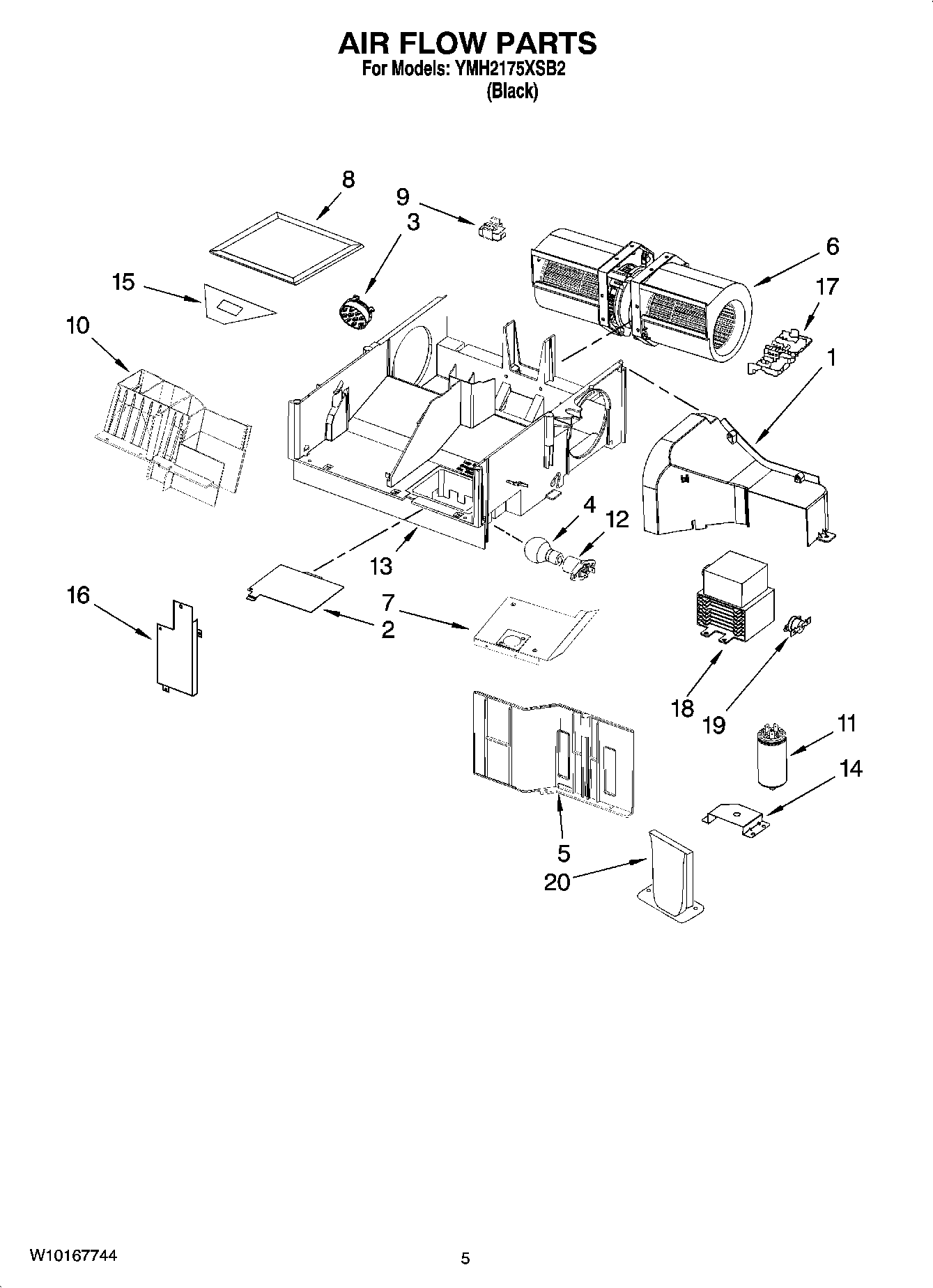

YMH2175XSB2 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	SENSOR, HUMIDITY
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	Cover, Side Inlet
6	Motor, Fan Assy
7	W10247762 Whirlpool Duct Cover
8	8206230A Whirlpool Microwave Charcoal Filter
9	W10596040 Whirlpool Microwave Nut
10	AIR GUIDE,PLATE
11	Filter
12	8169539 Whirlpool Microwave Light Bulb Socket and Housing
13	Base Plate, Air Guide
14	BRACKET, FILTER
15	SOCKET, MOTOR WIRE
16	Cover, Inlet Air Cavity Guide
17	Cover, Terminal
18	W10754299 Whirlpool Microwave Oven Magnetron
19	W10598693 Whirlpool Microwave Thermostat Fix
20	W10164716 Whirlpool Microwave Plate
