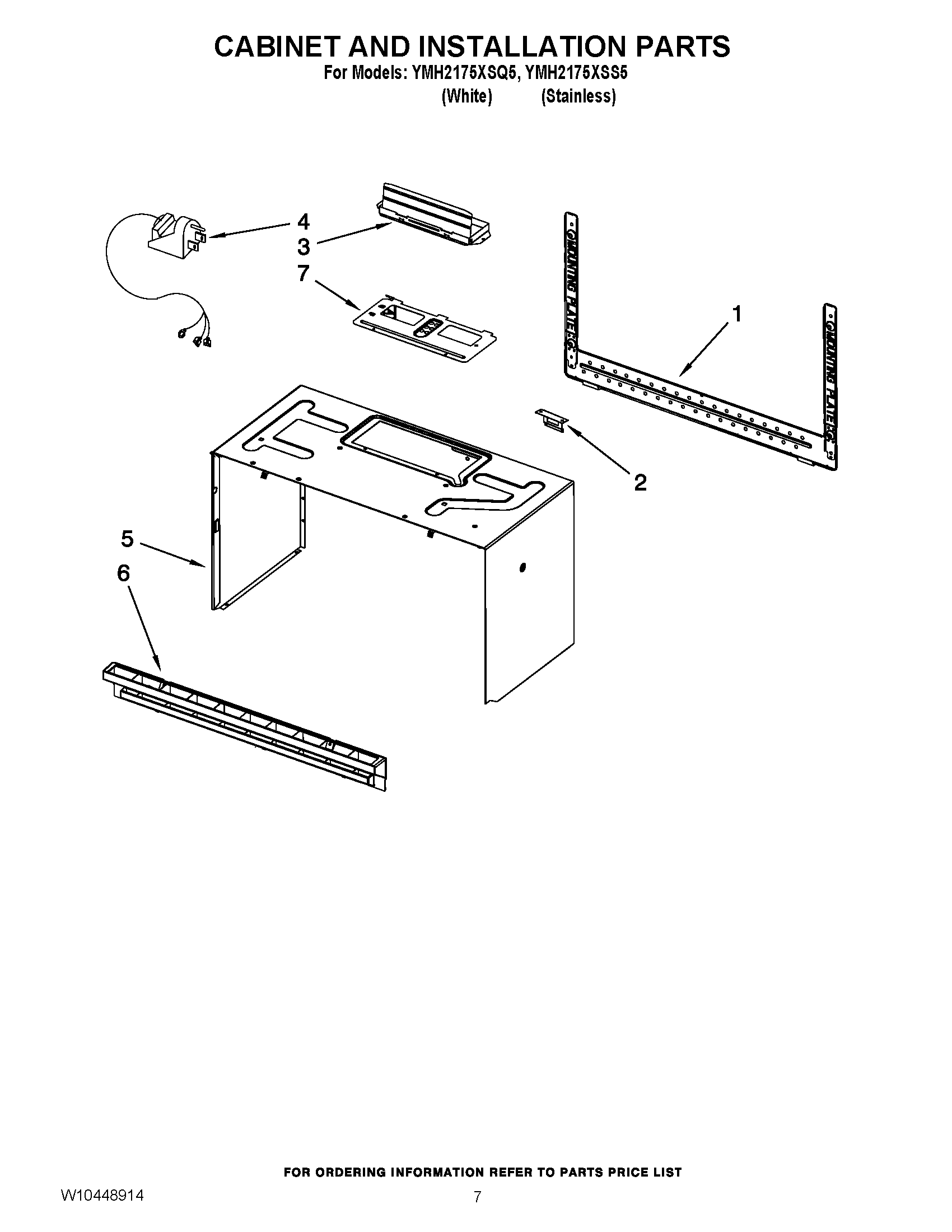

YMH2175XSQ5 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NITemplate, Upper
NIMISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
NIW10539842 Whirlpool Microwave Harness Wire
NIW10539841 Whirlpool Microwave Wire Harness
NIW10470168 Whirlpool Microwave Wire Harness
NIGrnd Wire, Filter
NIH.V. Wire Assy
NI8205948 Whirlpool Microwave Mount
NIMAIN HARNESS
1WPW10269225 Whirlpool Bracket Mounting
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5CASE, OUTER (WHITE)
5Case, Outer
6W10269471 Whirlpool Microwave Vent Grille
6Grille, Vent (Universal Silver)
7COVER, HOOD FAN MOTOR
