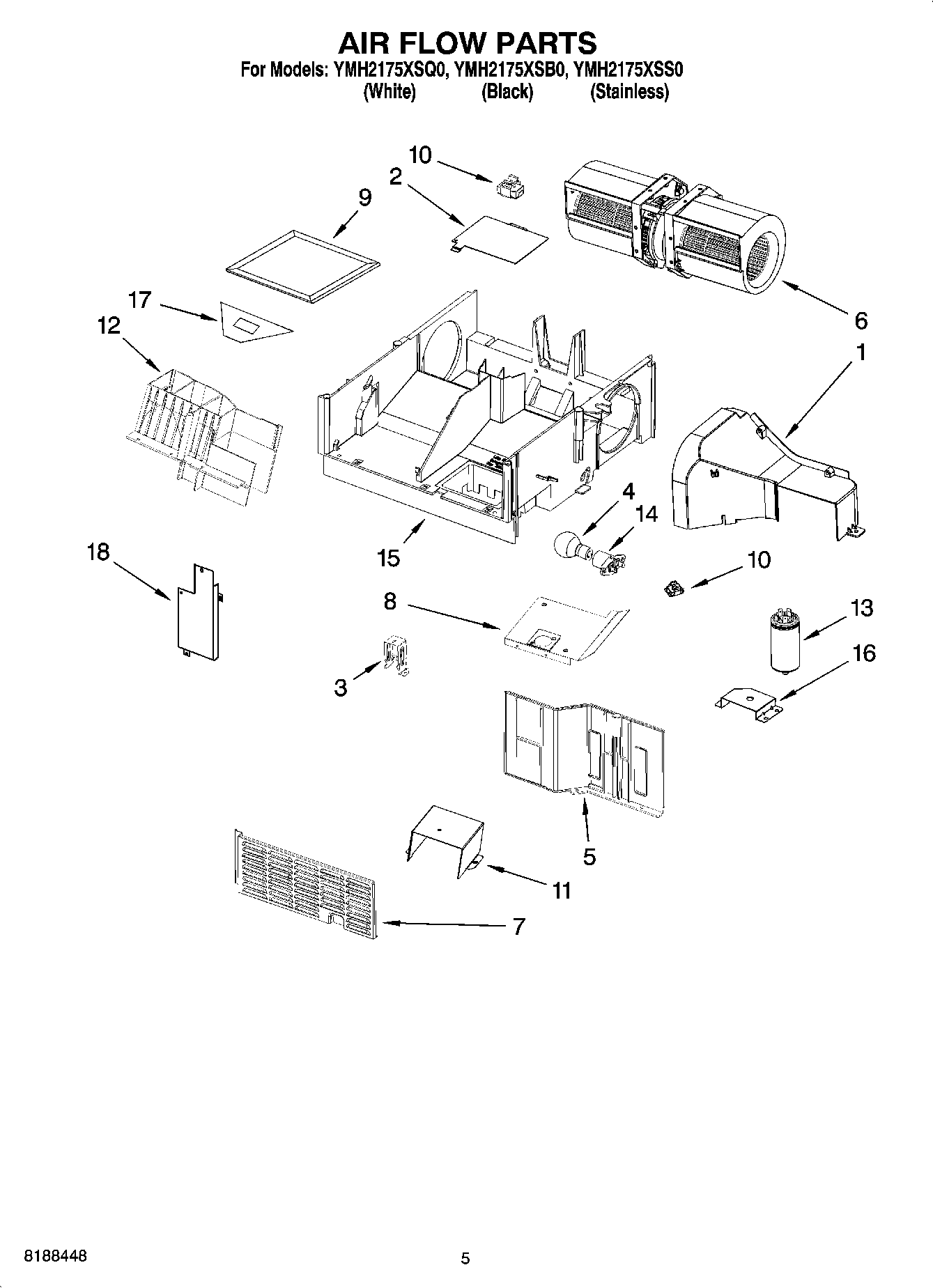

YMH2175XSS0 04 – AIR FLOW PARTSadmin2025-04-26T11:13:11+00:00YMH2175XSS0 04 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | Deflector, Air |
| 2 | 8206382 Whirlpool Microwave Light Cover |
| 3 | SENSOR, HUMIDITY |
| 4 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 5 | Cover, Side Inlet |
| 6 | Motor, Fan Assy |
| 7 | Shield |
| 8 | W10247762 Whirlpool Duct Cover |
| 9 | 8206230A Whirlpool Microwave Charcoal Filter |
| 10 | W10596040 Whirlpool Microwave Nut |
| 11 | Channel, Air |
| 12 | Air Guide, Plate |
| 13 | Filter |
| 14 | 8169539 Whirlpool Microwave Light Bulb Socket and Housing |
| 15 | Base Plate, Air Guide |
| 16 | Brkt-Mntg, Filter |
| 17 | Socket, Motor Wire |
| 18 | Cover, Inlet Air Cavity Guide |
