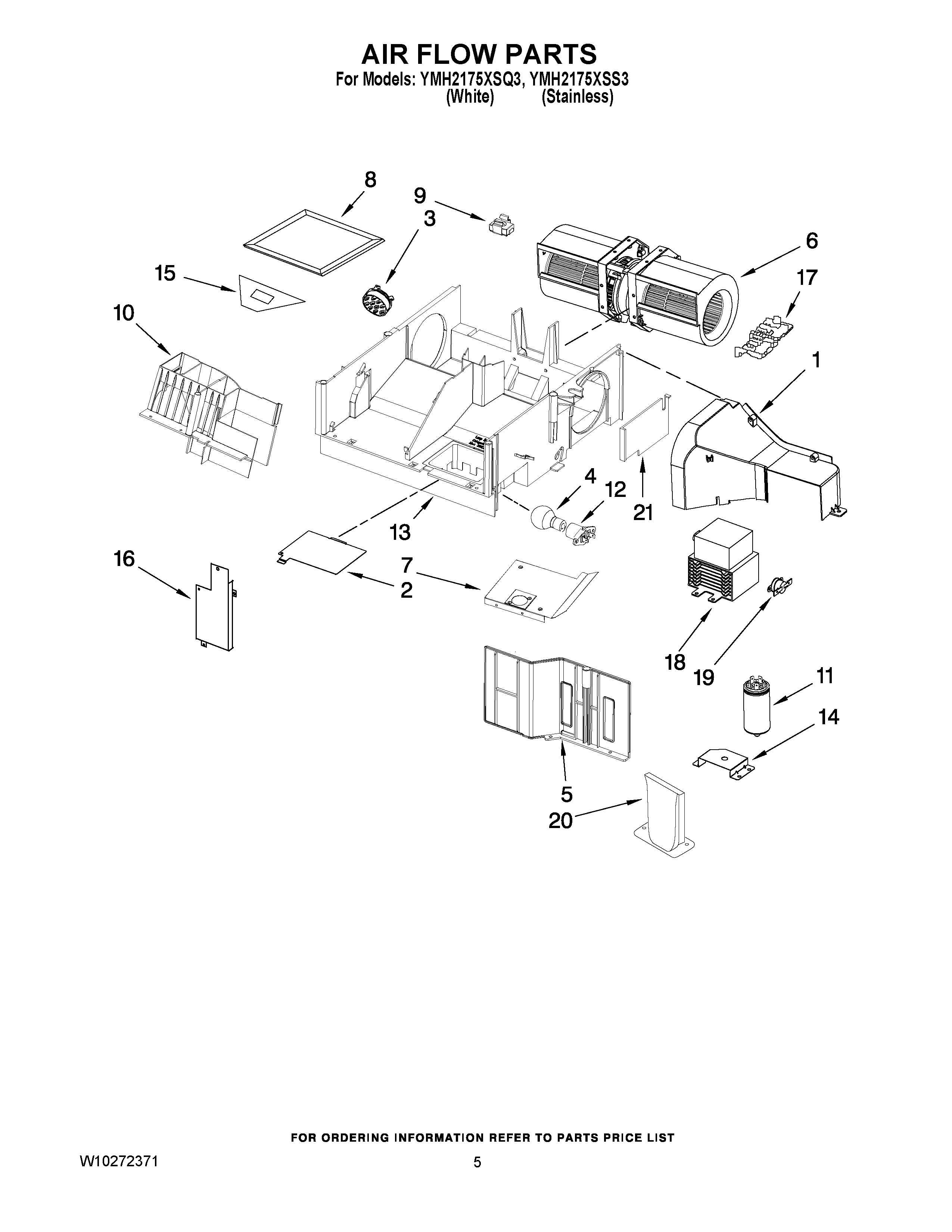

YMH2175XSS3 04 – AIR FLOW PARTSadmin2025-04-26T11:11:08+00:00YMH2175XSS3 04 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | Deflector, Air |
| 2 | 8206382 Whirlpool Microwave Light Cover |
| 3 | SENSOR, HUMIDITY |
| 4 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 5 | W10269231 Whirlpool Microwave Side Cover |
| 6 | Motor, Fan Assy |
| 7 | W10247762 Whirlpool Duct Cover |
| 8 | 8206230A Whirlpool Microwave Charcoal Filter |
| 9 | W10596040 Whirlpool Microwave Nut |
| 10 | AIR GUIDE,PLATE |
| 11 | Filter |
| 12 | WPW10210878 Whirlpool Microwave LMP Housing |
| 13 | Base Plate, Air Guide |
| 14 | BRACKET, FILTER |
| 15 | SOCKET, MOTOR WIRE |
| 16 | COVER, CAVITY AIR GUIDE INLET |
| 17 | Cover, Terminal |
| 18 | W10754299 Whirlpool Microwave Oven Magnetron |
| 19 | W10598693 Whirlpool Microwave Thermostat Fix |
| 20 | W10164716 Whirlpool Microwave Plate |
| 21 | COVER, RIGHT DUCT |
