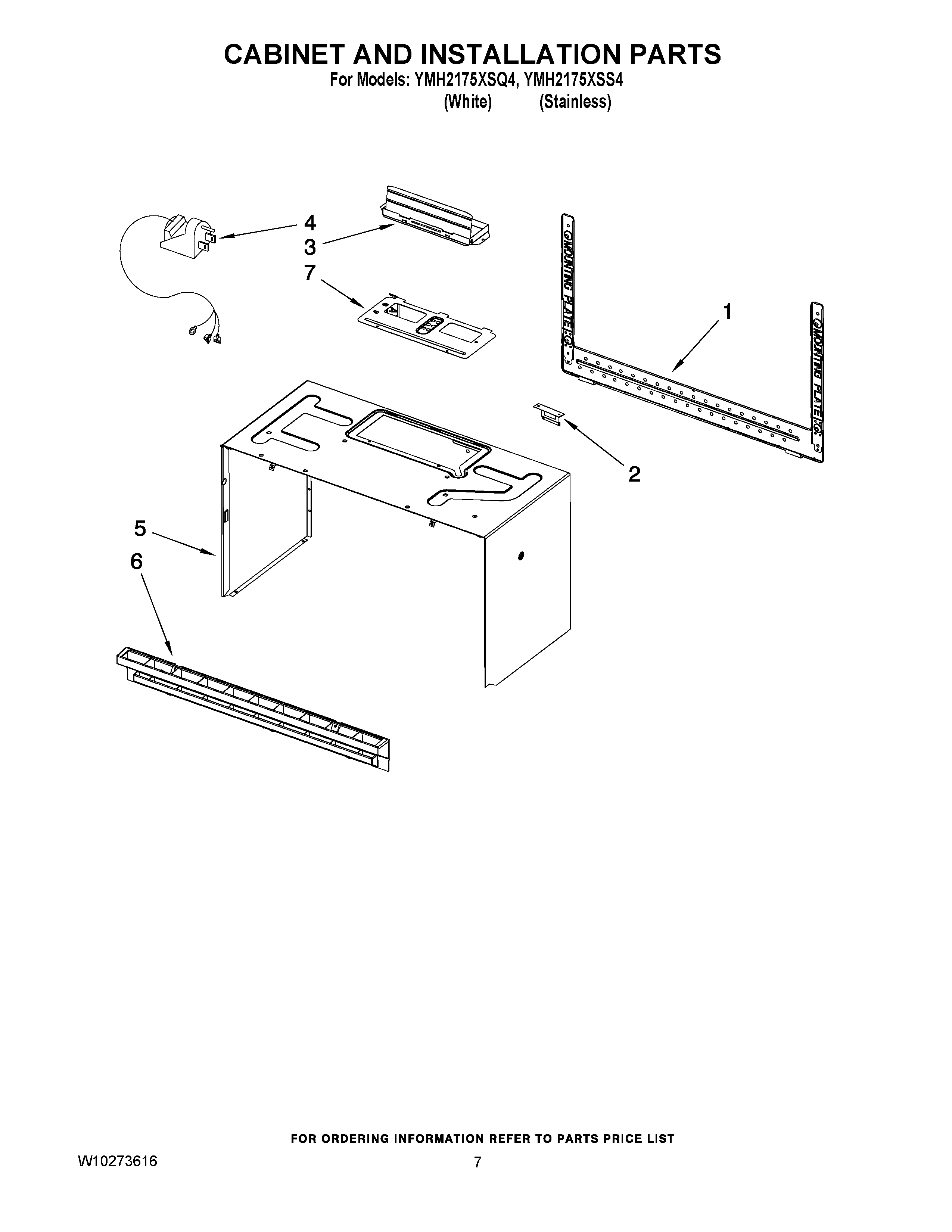

YMH2175XSS4 06 – CABINET AND INSTALLATION PARTS

YMH2175XSS4 06 – CABINET AND INSTALLATION PARTS

Written by

in

YMH2175XSS4 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1W10161215 Whirlpool Dishwasher Dishrack
2WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
3Silverware Basket Asembly
4Door, Silverware Basket
5Lid, Silverware Basket
6WP8268874 Whirlpool Dishwasher Spray Arm
7WP3376846 Whirlpool Seal
8WP8268873 Whirlpool Dishwasher Nut
9WP9742946 Whirlpool Dishwasher Spray Arm Bearing
10Latch Assembly
