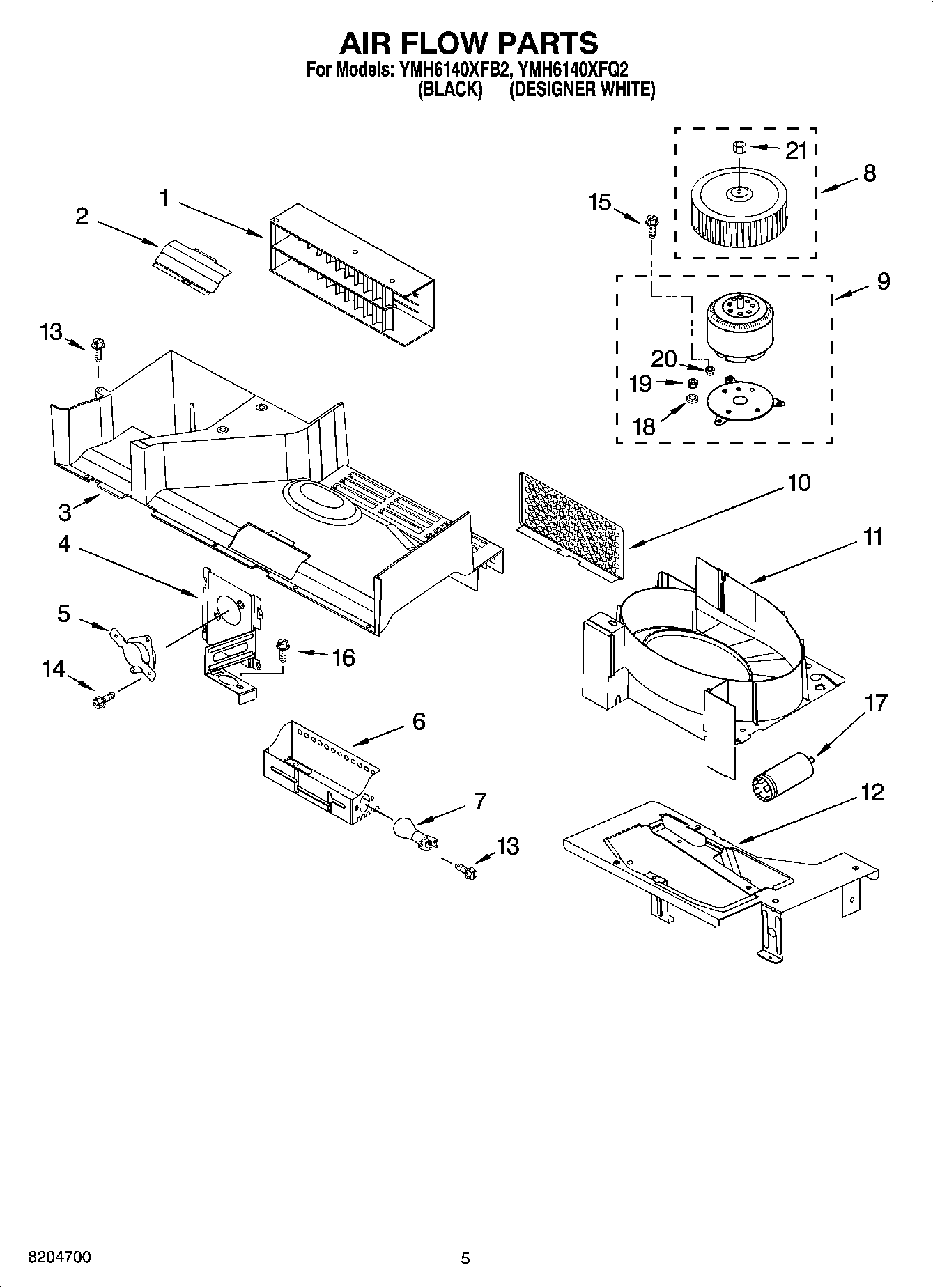

YMH6140XFB2 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Reflector, Air
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	Housing, Lamp
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Wheel, Fan
9	Motor, Fan
10	Shield
11	Housing, Fan
12	Bracket, Fan (Not Serviced)
14	Screw
15	Screw
16	Screw
17	Filter
18	Plate, Damper
19	Spacer, Copper Pipe
20	Cushion, Mtr
21	Nut
