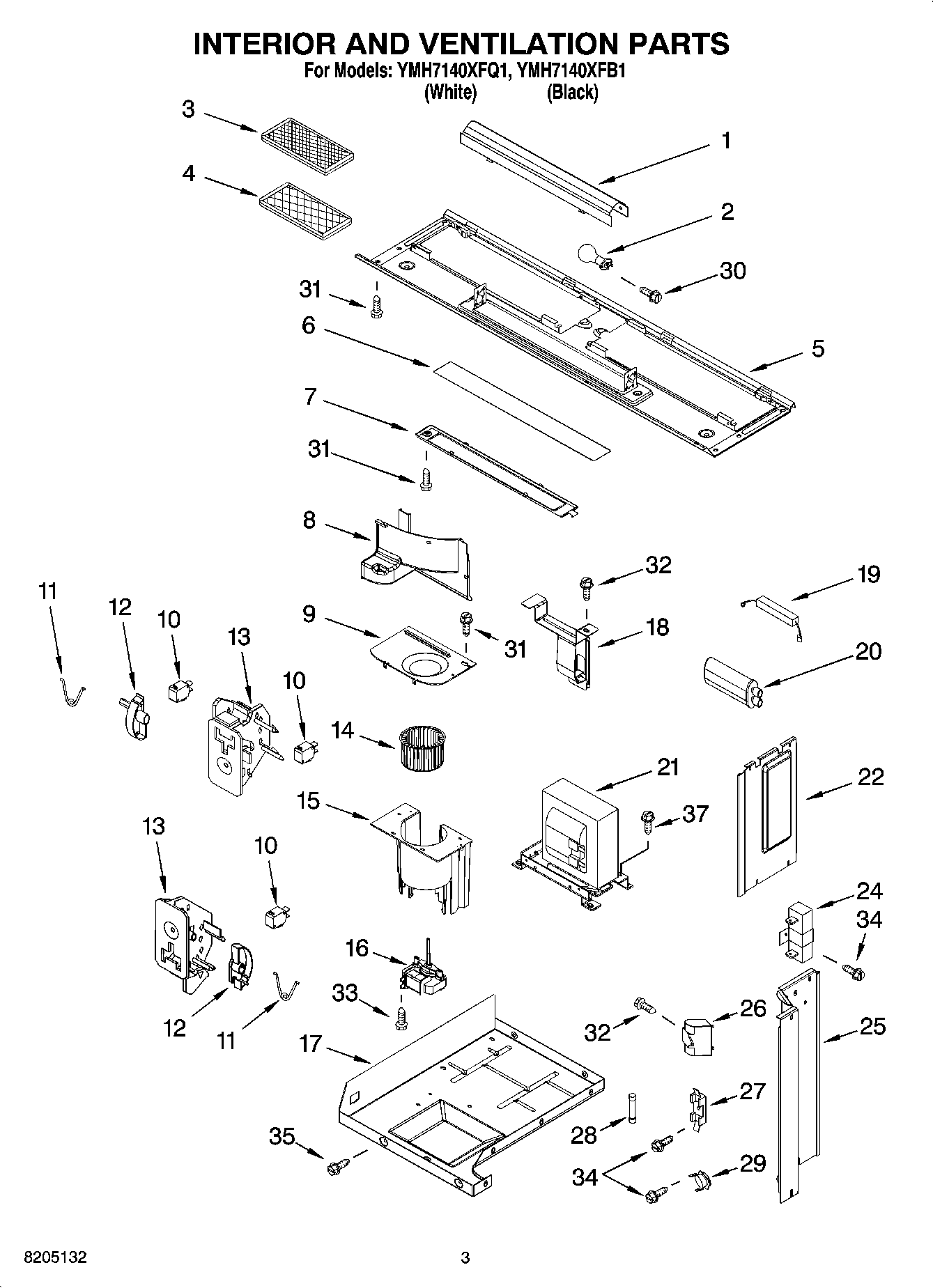

YMH7140XFB1 03 – INTERIOR AND VENTILATION PARTS

YMH7140XFB1 03 – INTERIOR AND VENTILATION PARTS

Written by

in

YMH7140XFB1 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Reflector, Lamp
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
36800 Whirlpool Charcoal Filter Kit
46802A Whirlpool Grease Filter
5Plate, Bottom
6Body, Door (Biscuit)
7Holder, Glass
8Guide, Air (Magnetron)
9Cover, Fan
10W10211972 Whirlpool Microwave Switch
11Spring, Interlock
12Plate, Cam
138205572 Whirlpool Microwave Interlock
14Wheel, Fan
15Housing, Fan
16Motor, Fan
17Chassis
18Holder, Capacitor
19W11256462 Whirlpool Microwave Diode
208206562 Whirlpool Microwave Capacitor MG
21Transformer, H.V.
22Plate, Side (R)
24Resistor, Ceramic
25Plate, Side (L)
26Capacitor
27Case, Fuse
28FUSE-THRML
29Thermostat
30Screw
32W11380570 Whirlpool Microwave Screw
33Screw
34Screw
35Screw
37Screw
