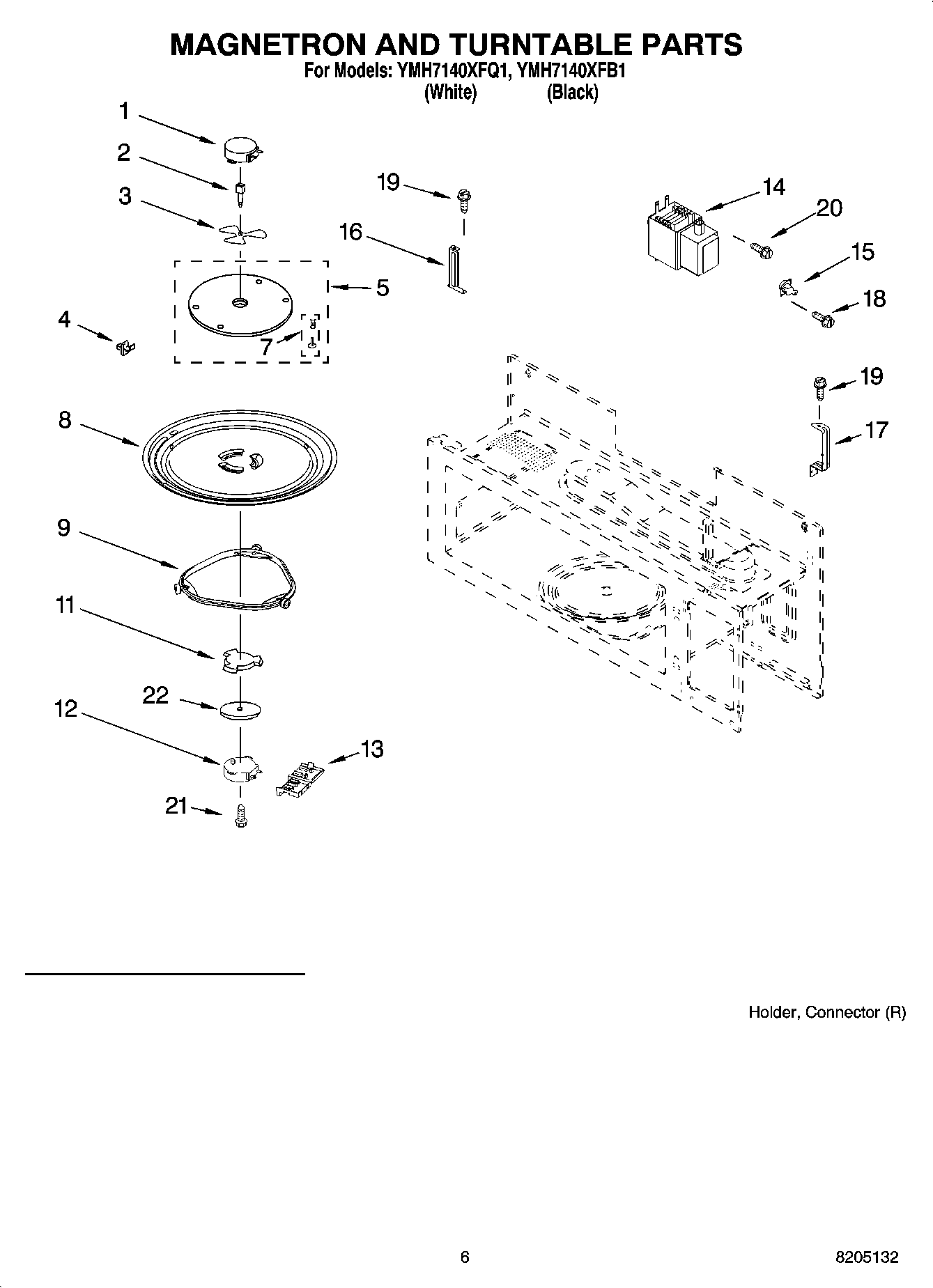

YMH7140XFQ1 05 – MAGNETRON AND TURNTABLE PARTS

YMH7140XFQ1 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

YMH7140XFQ1 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Shaft, Stirrer
3Stirrer
4W10315274 Whirlpool Microwave Meal Rack
5Cover, Inlet
7Nail, Plastic
84393799 Whirlpool Microwave Glass Tray
9W11252182 Whirlpool Glass Tray Support
11Driver, Turntable
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
14W10245183 Whirlpool Microwave Magnetron
15Thermostat
16Holder, Connector (L)
17Holder, Connector (R)
18Screw
19Screw
20WP8181660 Whirlpool Screw
214393832 Whirlpool Microwave Screw
228184109 Whirlpool Microwave Spacer
