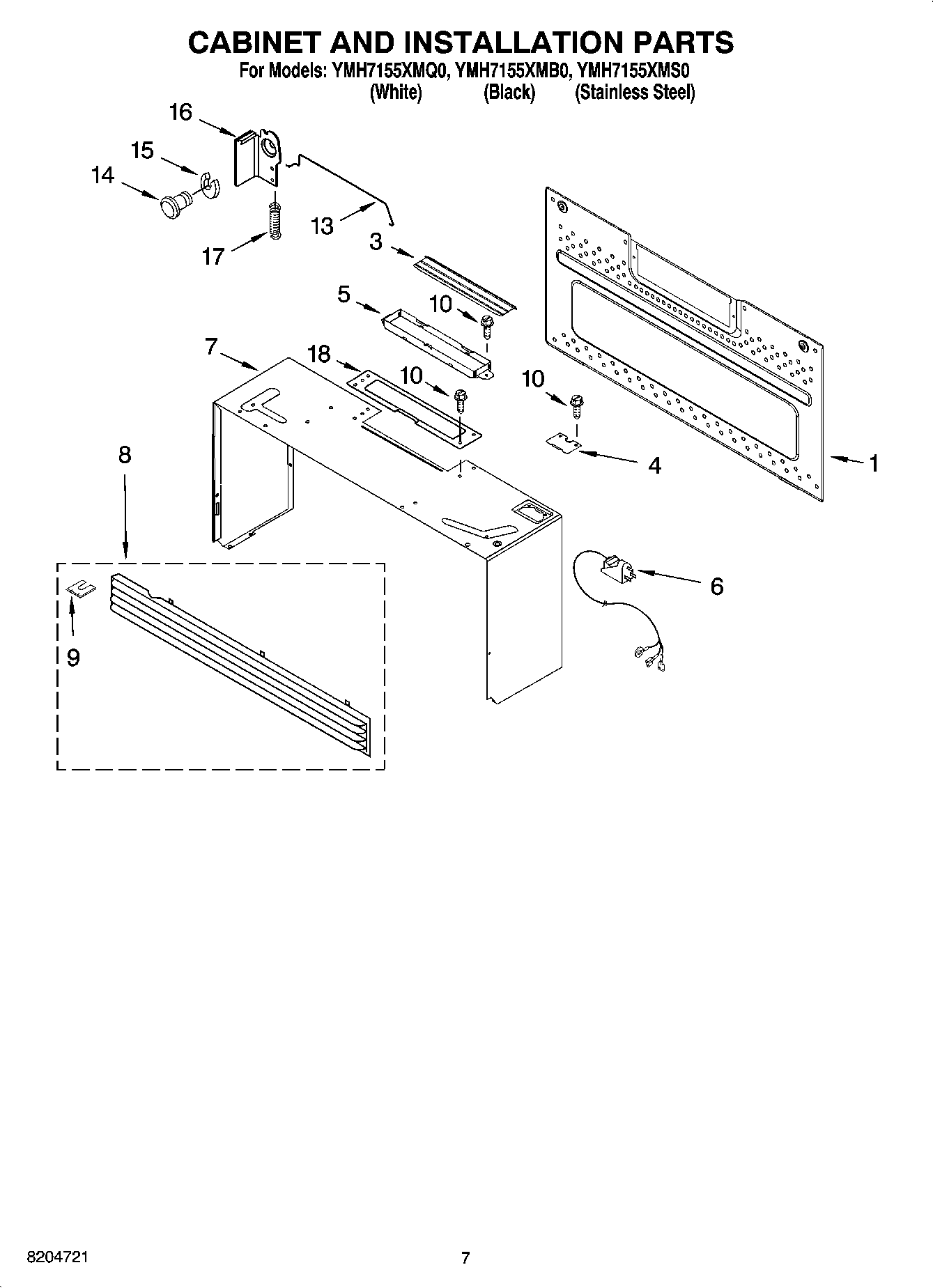

YMH7155XMS0 06 – CABINET AND INSTALLATION PARTS

YMH7155XMS0 06 – CABINET AND INSTALLATION PARTS

Written by

in

YMH7155XMS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
68169432 Whirlpool Microwave Power Cord
7Case, Outer (White)
7Case, Outer (Black)
88183948 Whirlpool Microwave Oven Vent Grille
88183851 Whirlpool Microwave Oven Vent Grille Black
8Grille, Vent (Stainless Steel)
98206334 Whirlpool Microwave Mounting Bracket
10Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18Upper Template
18Template – Wall
18Miscellaneous
18WP8169704 Whirlpool Screw
18Rack
18Filler Kit (Almond)
18Filler Kit (Biscut)
18Filler Kit (Black)
18Filler Kit (White)
18Plate, Damper
18Hardware, Installation
18ACCESSORY PARTS
