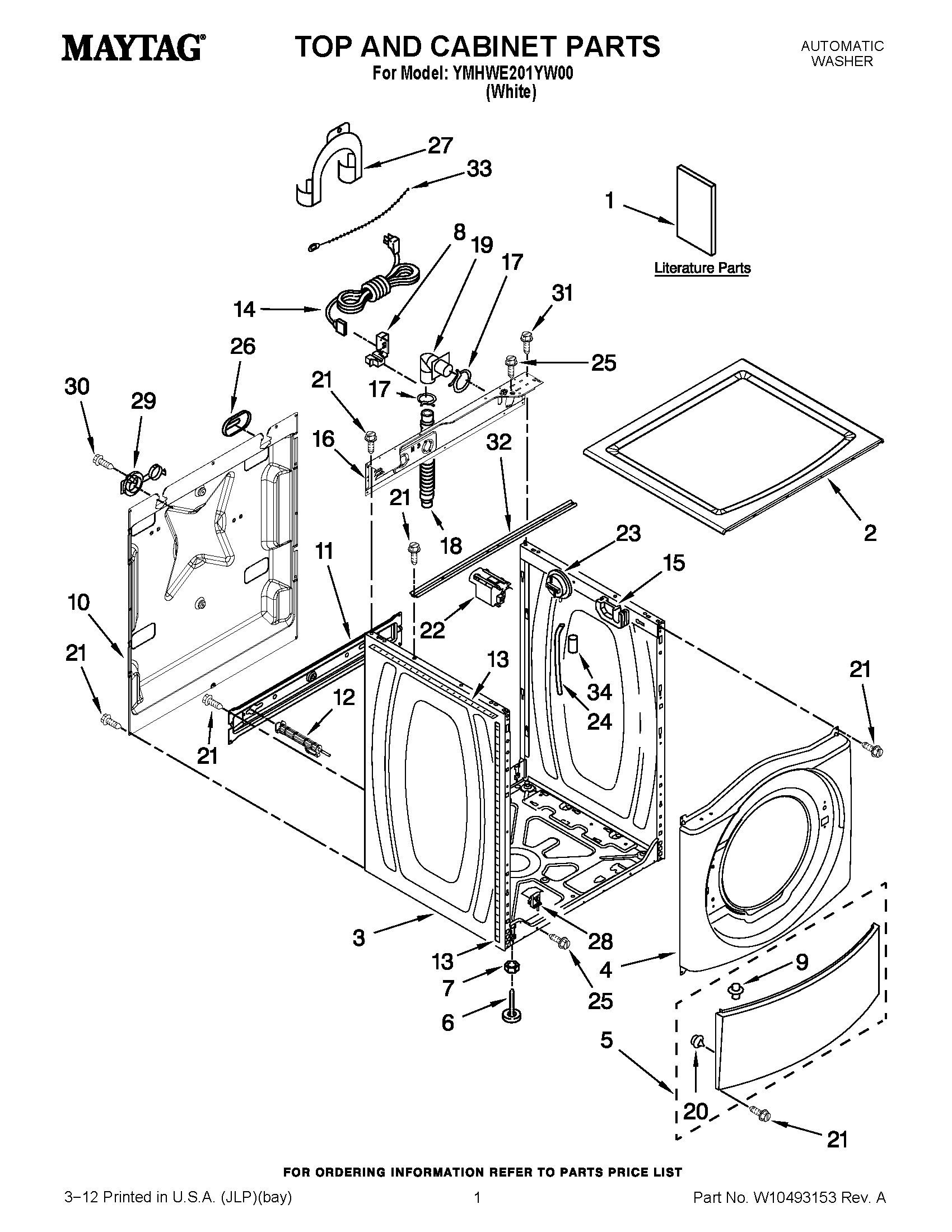

YMHWE201YW00 01 – TOP AND CABINET PARTS

YMHWE201YW00 01 – TOP AND CABINET PARTS

Written by

in

YMHWE201YW00 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10484488
1	MAY W10385295
1	MAY W10408696
2	MAY W10303994
3	MAY W10410294
4	MAY W10306505
5	TOE PANEL (WHITE)
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY W10258341
11	MAY W10189657
12	MAY W10251449
13	SEAL-FOAM (IEC)
14	MAY W10205500
15	BRACKET-SUSPENSION SPRING
16	MAY W10299495
17	MAY 356138
18	MAY W10281257
19	Connector, Drain Hose
20	MAY 238614
21	Screw, 8-18 x 5/8
22	MAY W10339736
23	MAY W10239066
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	MAY 8540021
28	MAY W10085220
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	MAY 8540721
33	MAY 3347868
34	Sleeve, Pressure Switch Hose
