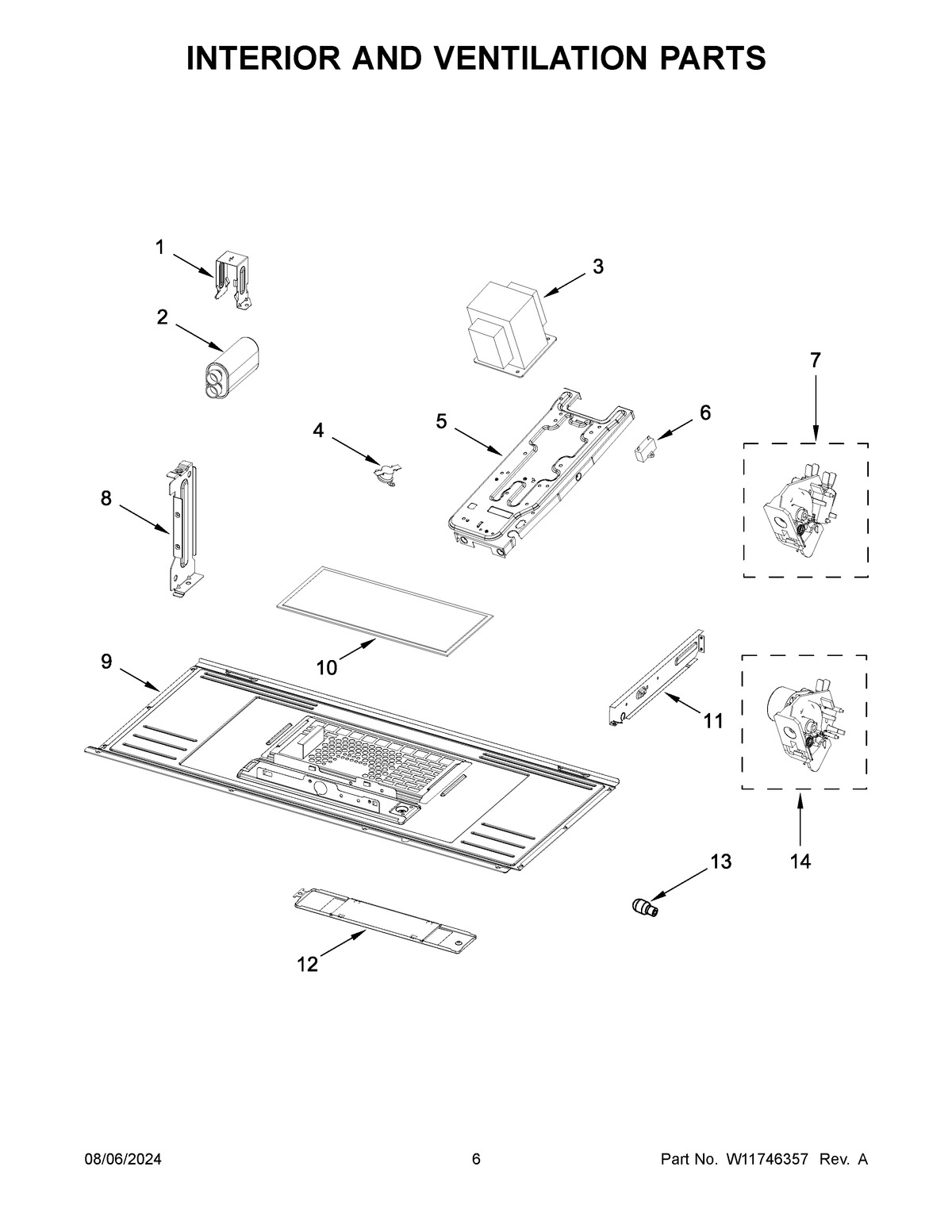

YMMMS4230PZ00 04 – INTERIOR AND VENTILATION PARTS

YMMMS4230PZ00 04 – INTERIOR AND VENTILATION PARTS

Written by

in

YMMMS4230PZ00 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10532063 Whirlpool Microwave Bracket
28206562 Whirlpool Microwave Capacitor MG
3TRANSFORMER, HIGH VOLTAGE
4W11574181 Whirlpool Thermostat Fix
5W11520831 Whirlpool Base
6W11405832 Whirlpool Microwave Capacitor
7ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES)
8W10313275 Whirlpool Microwave Support Bracket
9W11295401 Whirlpool Base
10W11391715 Whirlpool Grease Filter
11W11295335 Whirlpool Base
12W11295403 Whirlpool Microwave Reflector
13W11520384 Whirlpool Light Bulb
14ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES)
