YMMMS4230PZ00 07 – CABINET AND INSTALLATION PARTS

Products

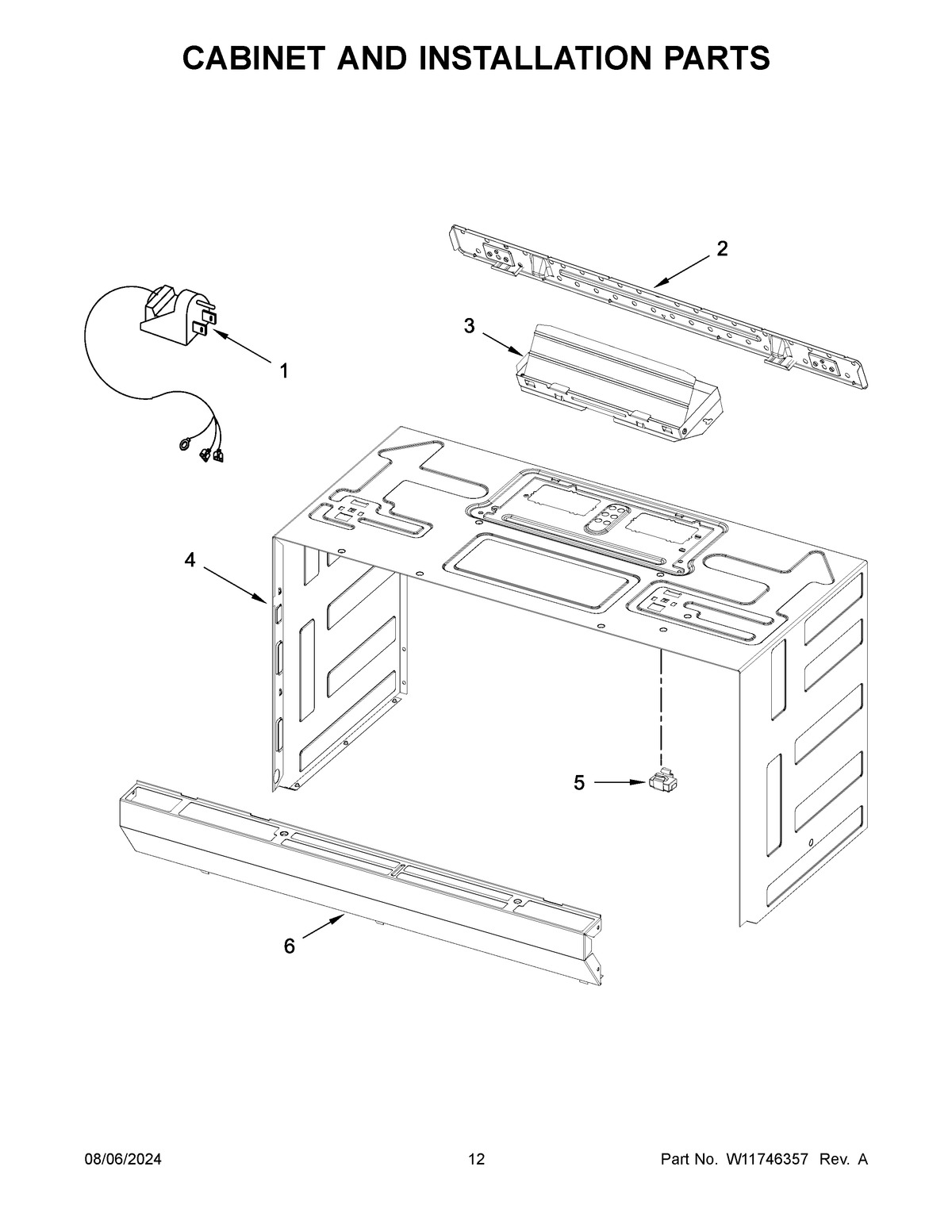

PositionProduct
NIW10821385 Whirlpool Hardware Kit
NIW11301790 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, MAIN
1W10708076 Whirlpool Microwave Power Cord
2W11025649 Whirlpool Microwave Mounting Plate
3W10843943 Whirlpool Microwave Vent Damper
4W11446916 Whirlpool Microwave Cabinet Wrapper
5ASSEMBLY, MOUNTING NUT
6W10845643 Whirlpool Microwave Vent Grill
