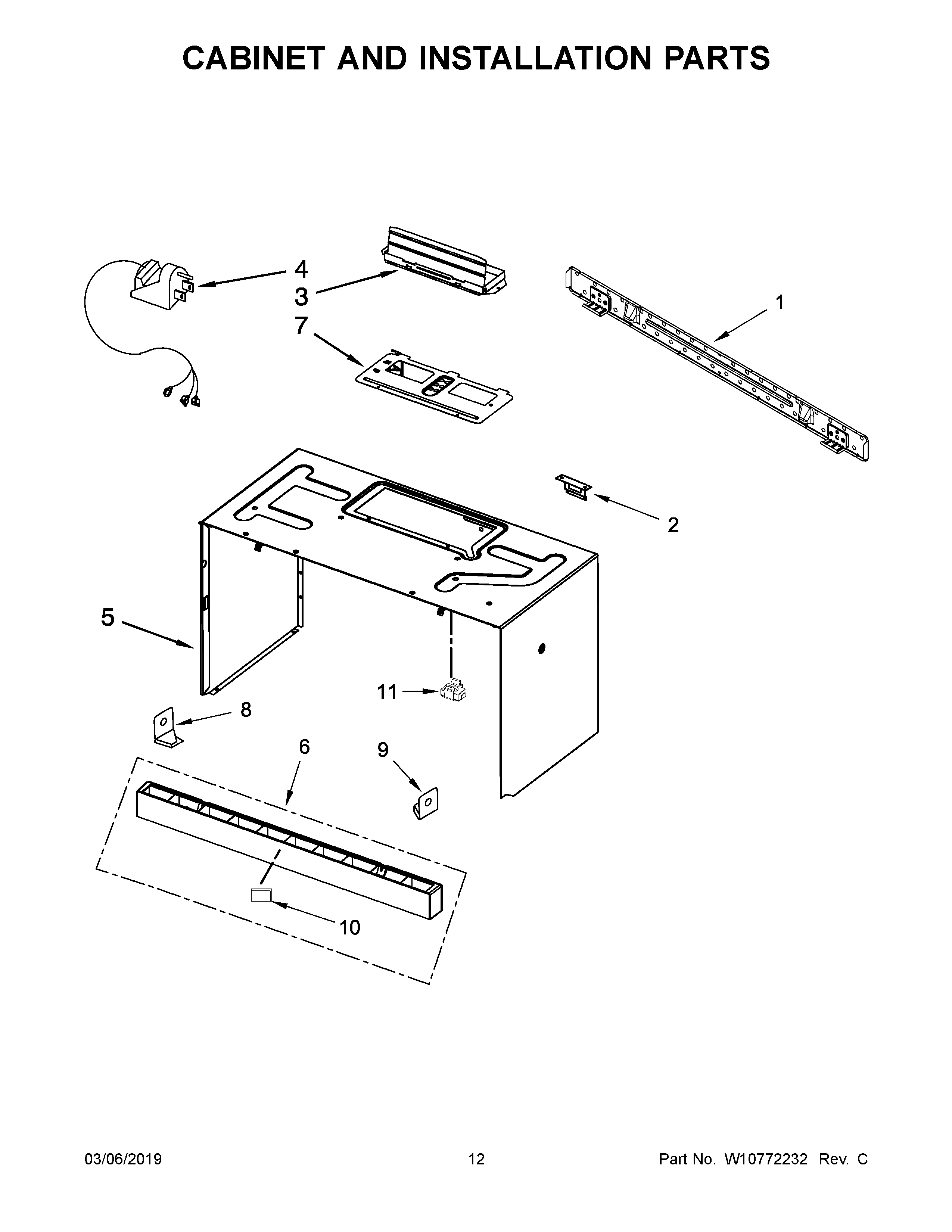

YMMV1174DS0 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NI	MISCELLANEOUS PARTS, HARNESS, LAMP AND TURNTABLE
NI	MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1	PLATE, MOUNTING
2	MAY 8206385
3	DAMPER
4	CORD, POWER
5	MAY W10462001
6	GRILLE, VENT (STAINLESS)
7	MAY W10210832
8	HOLDER, VENT LEFT SIDE (STAINLESS)
9	HOLDER, VENT RIGHT SIDE (STAINLESS)
10	BADGE
11	ASSEMBLY, MOUNTING NUT
