YMMV1174FZ1 07 – CABINET AND INSTALLATION PARTS

YMMV1174FZ1 07 – CABINET AND INSTALLATION PARTS

Written by

in

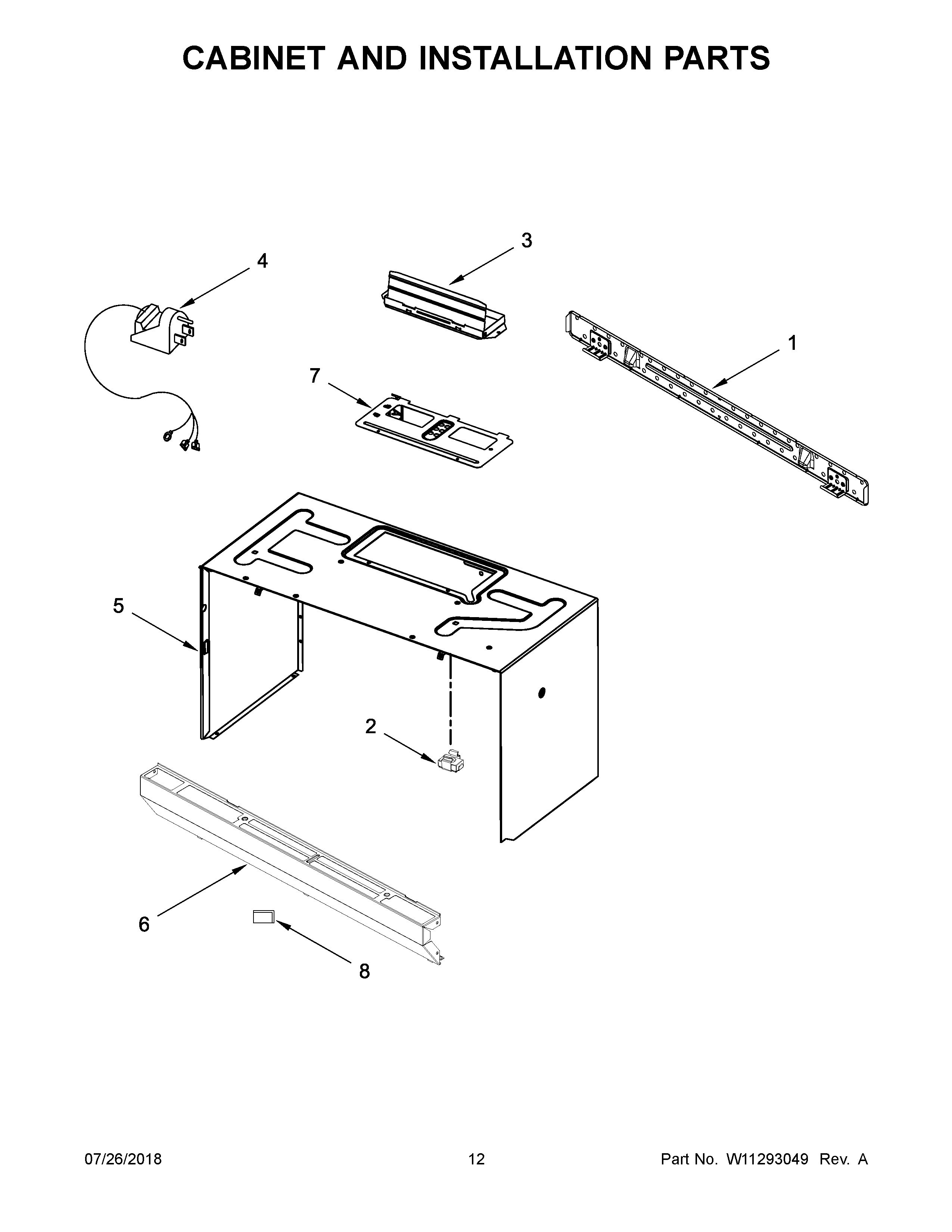

YMMV1174FZ1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, HARNESS, MAIN
1PLATE, MOUNTING
2ASSEMBLY, MOUNTING NUT
3DAMPER
4CORD, POWER
5CASE, OUTER (BLACK)
6GRILLE, VENT (BLACK)
7COVER, FAN MOTOR
8BADGE
