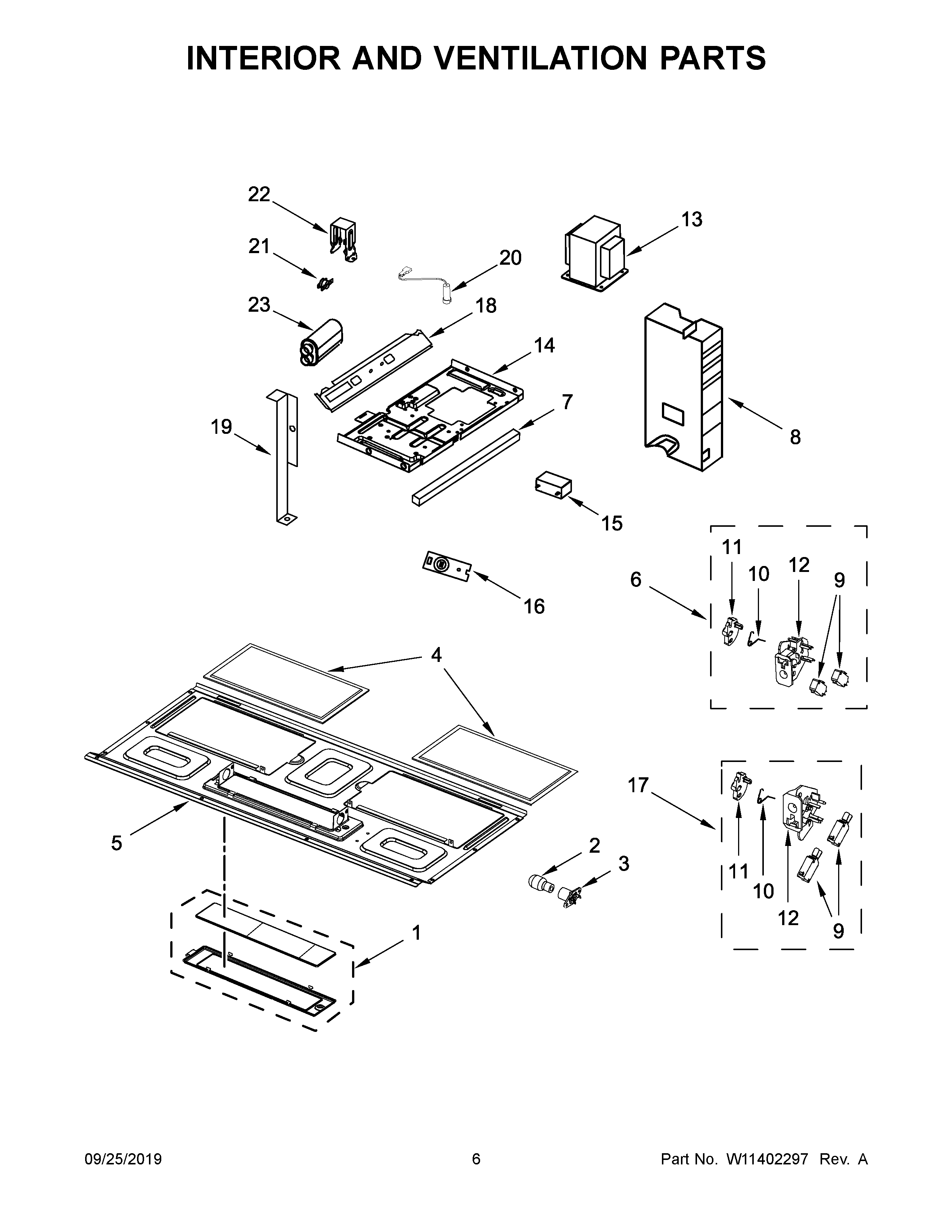

YMMV1174FZ2 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T08:54:35+00:00YMMV1174FZ2 04 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, LAMP GLASS AND HOLDER |
| 2 | MAY 8206232 |
| 3 | MAY W10210871 |
| 4 | MAY W10208631 |
| 5 | MAY W10245196 |
| 6 | ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES) |
| 7 | SEAL, COOLING |
| 8 | AIR GUIDE, LOWER |
| 9 | LINER (NOT A SERVICEABLE PART) |
| 10 | MAY W10156812 |
| 11 | PLATE, CAM |
| 12 | MAY 8206419 |
| 12A | MAY W10156813 |
| 13 | TRANSFORMER, HIGH VOLTAGE |
| 14 | CHASSIS |
| 15 | Capacitor, 125 V |
| 16 | Thermistor (PCBA) |
| 17 | ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES) |
| 18 | SUPPORT, NTC |
| 19 | BRACKET, TOP |
| 20 | DIODE, HIGH VOLTAGE |
| 21 | THERMOSTAT, CAVITY |
| 22 | BRACKET, CAPACITOR |
| 23 | MAY 8206562 |
