YMMV4205DE3 03 – DOOR PARTS

YMMV4205DE3 03 – DOOR PARTS

Written by

in

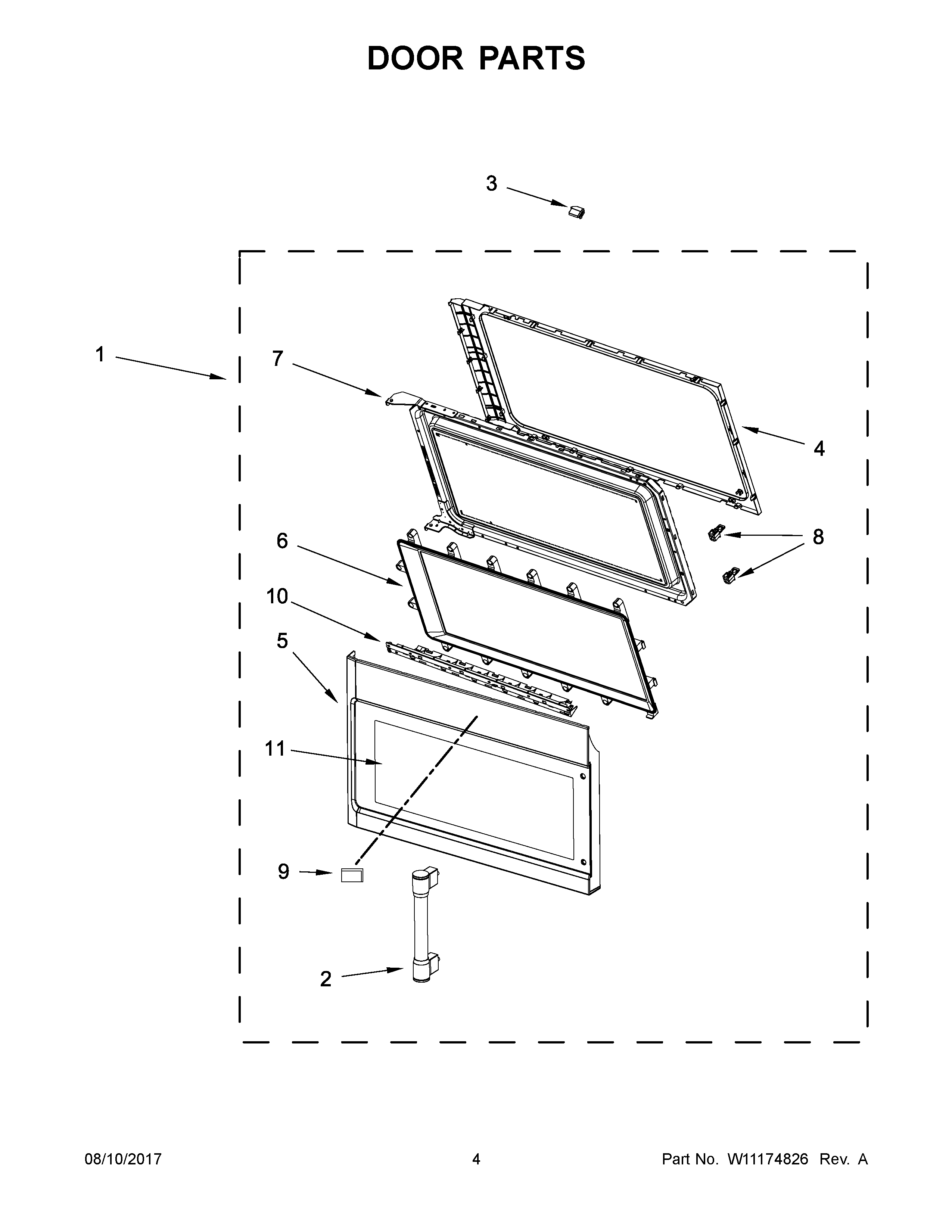

YMMV4205DE3 03 – DOOR PARTS

Products

PositionProduct
1CDOOR, COMPLETE (WHITE ICE)
1DOOR, COMPLETE (WHITE)
1ADOOR, COMPLETE (BLACK)
1BDOOR, COMPLETE (STAINLESS)
1DDOOR, COMPLETE (BLACK ICE)
2CHANDLE (WHITE ICE)
2HANDLE (WHITE)
2AHANDLE (BLACK)
2BHANDLE (STAINLESS & BLACK ICE MODELS)
3STOPPER, DOOR
4FRAME, INNER
5AASSEMBLY, DOOR FRAME (BLACK)
5BASSEMBLY, DOOR FRAME (STAINLESS)
5ASSEMBLY, DOOR FRAME (WHITE)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8MAY W10489272
9BADGE
10TRIM, DOOR (WHITE)
10ATRIM, DOOR (BLACK)
11ASSEMBLY, DOOR GLASS (WHITE)
11AASSEMBLY, DOOR GLASS (BLACK)
11BASSEMBLY, DOOR GLASS (STAINLESS)
