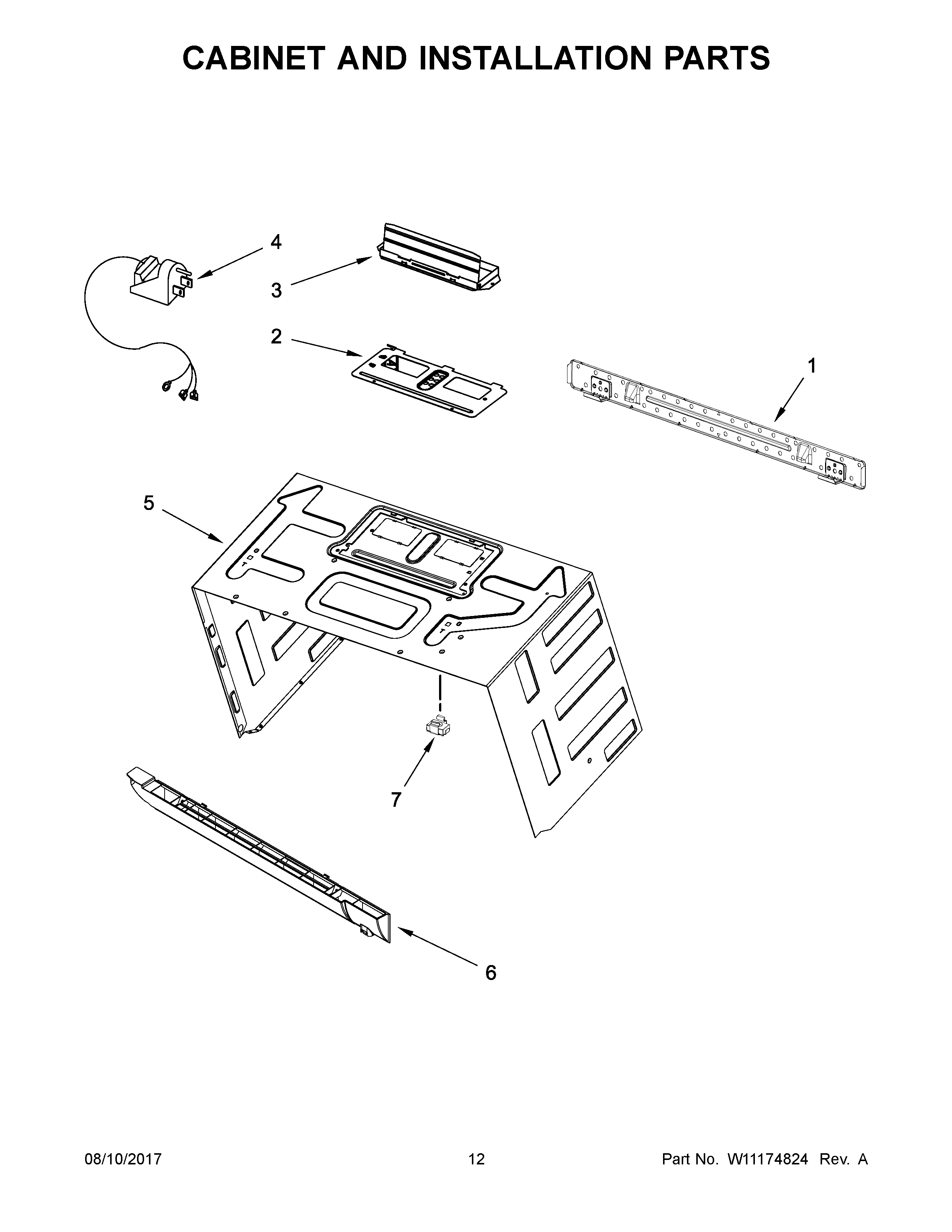

YMMV4205DH1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2COVER, FAN MOTOR
3DAMPER
4CORD, POWER
5AMAY W10571408
5CASE, OUTER (WHITE)
6GRILLE, VENT (WHITE)
6AGRILLE, VENT (BLACK)
7ASSEMBLY, MOUNTING NUT
