YMMV4205FB1 03 – DOOR PARTS

YMMV4205FB1 03 – DOOR PARTS

Written by

in

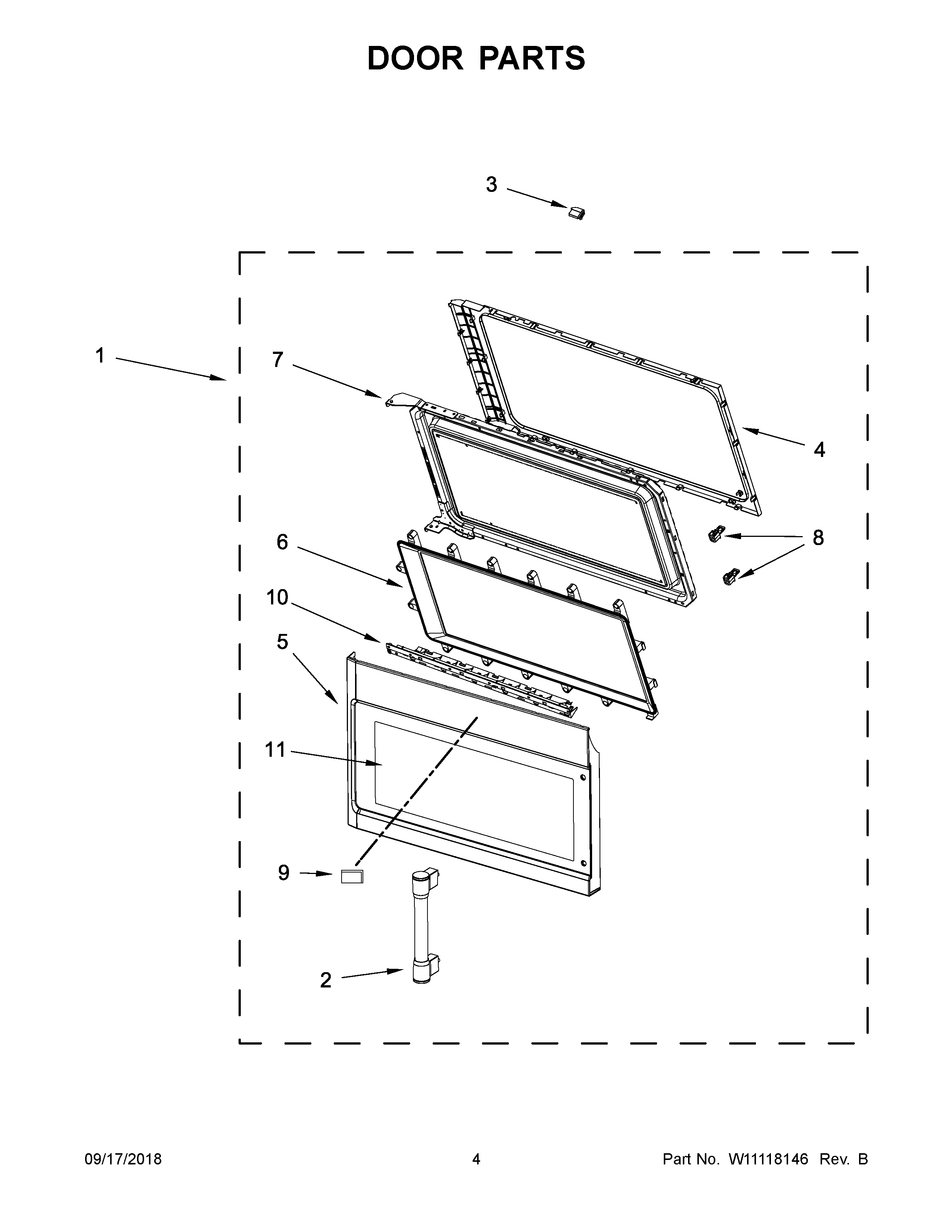

YMMV4205FB1 03 – DOOR PARTS

Products

PositionProduct
1DOOR, COMPLETE (WHITE)
1ADOOR, COMPLETE (BLACK)
1BDOOR, COMPLETE (STAINLESS)
2HANDLE (WHITE)
2AHANDLE (BLACK)
2BHANDLE (STAINLESS)
3STOPPER, DOOR
4FRAME, INNER
5BASSEMBLY, DOOR FRAME (STAINLESS)
5AASSEMBLY, DOOR FRAME (BLACK)
5ASSEMBLY, DOOR FRAME (WHITE)
6PLATE, STEAM PROTECTION
7FOIL, DOOR
8MAY W10489272
9BADGE
10ATRIM, DOOR (BLACK)
10TRIM, DOOR (WHITE)
11AASSEMBLY, DOOR GLASS (BLACK)
11ASSEMBLY, DOOR GLASS (WHITE)
