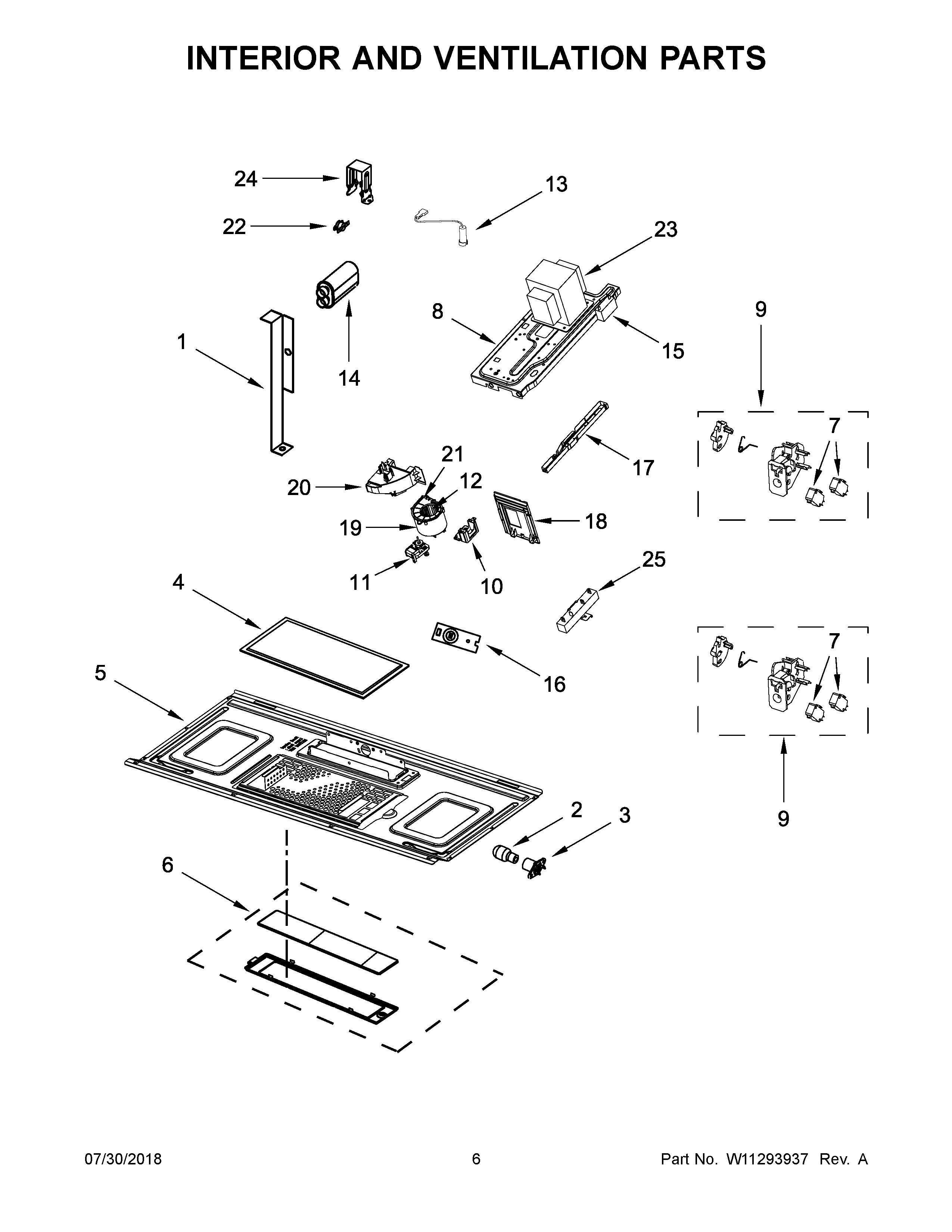

YMMV4206FB3 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T08:51:42+00:00YMMV4206FB3 04 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET, TOP CAVITY |
| 2 | MAY 8206232 |
| 3 | MAY W10210871 |
| 4 | MAY W10208631 |
| 5 | PLATE, BOTTOM |
| 6 | ASSEMBLY, LAMP GLASS AND HOLDER |
| 7 | LINER (NOT A SERVICEABLE PART) |
| 8 | CHASSIS |
| 9 | ASSEMBLY, INTERLOCK (INCLUDES SWITCHES) |
| 10 | MAY W10533480 |
| 11 | MOTOR, COOLING FAN |
| 12 | MAY W10533503 |
| 13 | MAY W10575765 |
| 14 | CAPACITOR, HIGH VOLTAGE |
| 15 | MAY W10605897 |
| 16 | MAY W10536989 |
| 17 | MAY W10540718 |
| 18 | DEFLECTOR, AIR |
| 19 | MAY W10533501 |
| 20 | AIR GUIDE, MAGNETRON |
| 21 | MAY W10533502 |
| 22 | THERMOSTAT, CAVITY |
| 23 | TRANSFORMER, HIGH VOLTAGE |
| 24 | BRACKET, CAPACITOR |
| 25 | RESISTOR, CEMENT |
