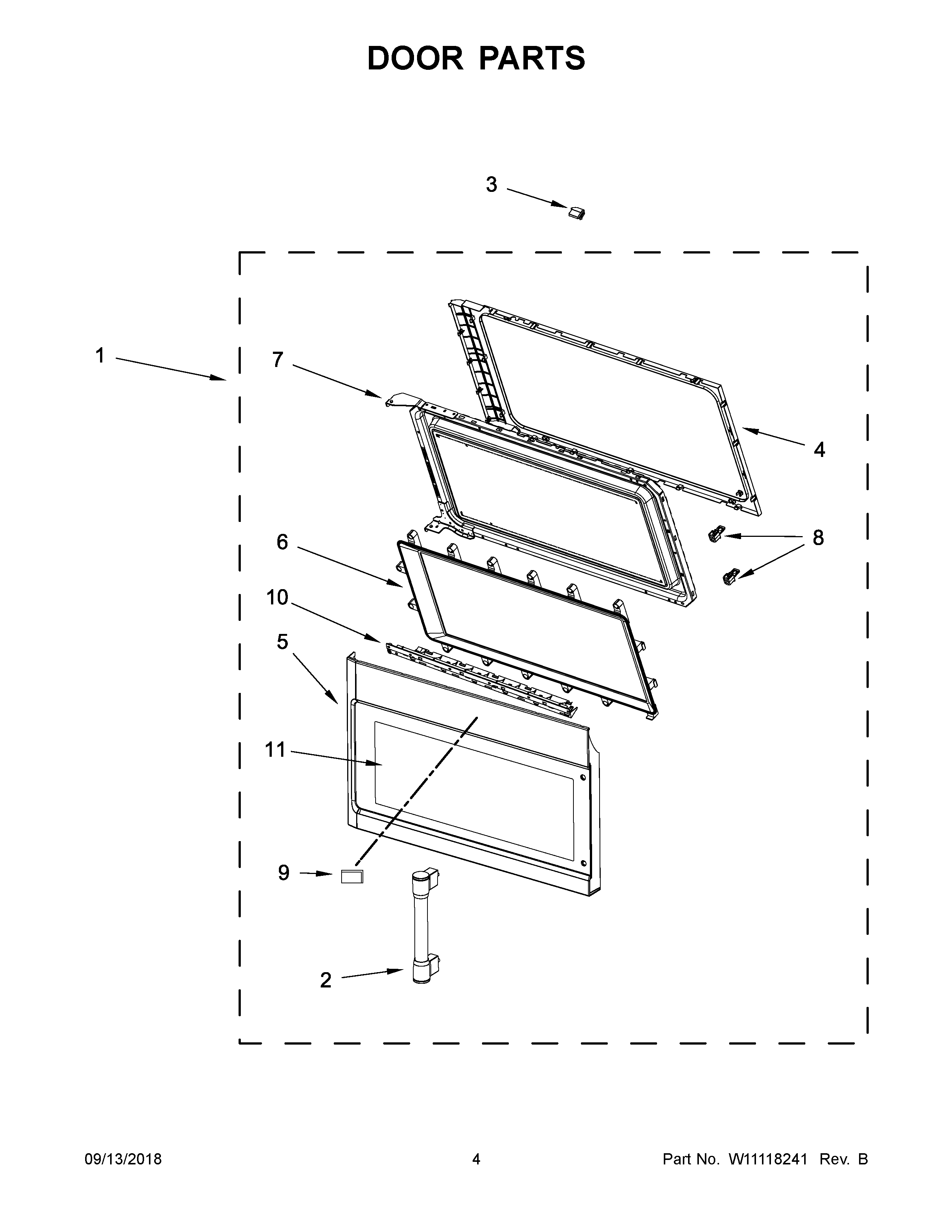

YMMV4206FW0 03 – DOOR PARTS

YMMV4206FW0 03 – DOOR PARTS

Written by

in

YMMV4206FW0 03 – DOOR PARTS

Products

Position	Product
1	DOOR, COMPLETE (WHITE)
1A	DOOR, COMPLETE (BLACK)
1B	DOOR, COMPLETE (STAINLESS)
2A	HANDLE (BLACK)
2	HANDLE (WHITE)
2B	HANDLE (STAINLESS)
3	STOPPER, DOOR
4	FRAME, INNER
5	ASSEMBLY, DOOR FRAME (WHITE)
5A	ASSEMBLY, DOOR FRAME (BLACK)
6	PLATE, STEAM PROTECTION
7	FOIL, DOOR
8	MAY W10489272
9	BADGE
10	TRIM, DOOR (WHITE)
10A	TRIM, DOOR (BLACK)
11	ASSEMBLY, DOOR GLASS (WHITE)
11A	ASSEMBLY, DOOR GLASS (BLACK)
